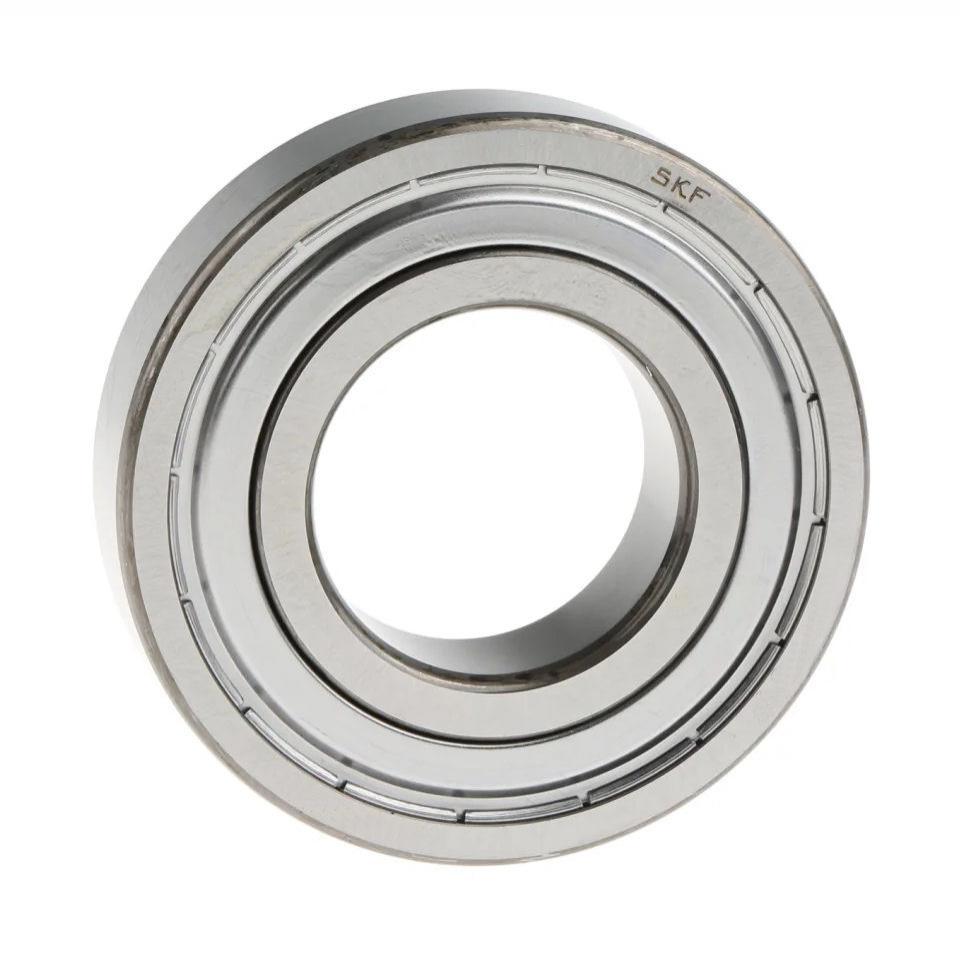

6314-2Z/C3HT SKF Shielded High Temperature Deep Groove Ball Bearing 70x150x35mm
SKF Single row deep groove ball bearing with high temperature grease two metal shields & C3 clearance, temperature range +60 to +150 degrees 70mm inside x 150mm outside x 35mm width
Regular price
£153.25 inc.VAT
£127.71 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

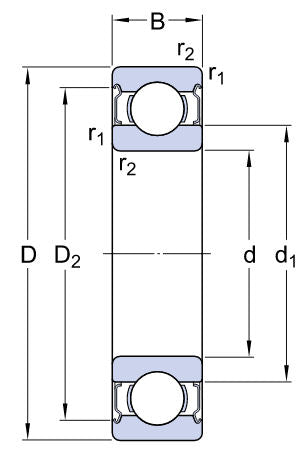

Dimensions
Bore diameter 70 mm
Outside diameter 150 mm
Width 35 mm
Performance
Basic dynamic load rating 111 kN
Basic static load rating 68 kN
Limiting speed 5 000 r/min
Reference speed 9 500 r/min
Properties
Bore type Cylindrical
Cage Sheet metal
Coating Without
Filling slots Without
Locating feature, bearing outer ring None
Lubricant Grease
Matched arrangement No
Material, bearing Bearing steel
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
SKF performance class SKF Explorer
Sealing Shield on both sides
Sealing type Non-contact
Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance
Dimensions
Bore diameter 70 mm
Outside diameter 150 mm
Width 35 mm
Performance
Basic dynamic load rating 111 kN
Basic static load rating 68 kN
Limiting speed 5 000 r/min
Reference speed 9 500 r/min
Properties
Bore type Cylindrical
Cage Sheet metal
Coating Without
Filling slots Without
Locating feature, bearing outer ring None
Lubricant Grease
Matched arrangement No
Material, bearing Bearing steel
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
SKF performance class SKF Explorer
Sealing Shield on both sides
Sealing type Non-contact
