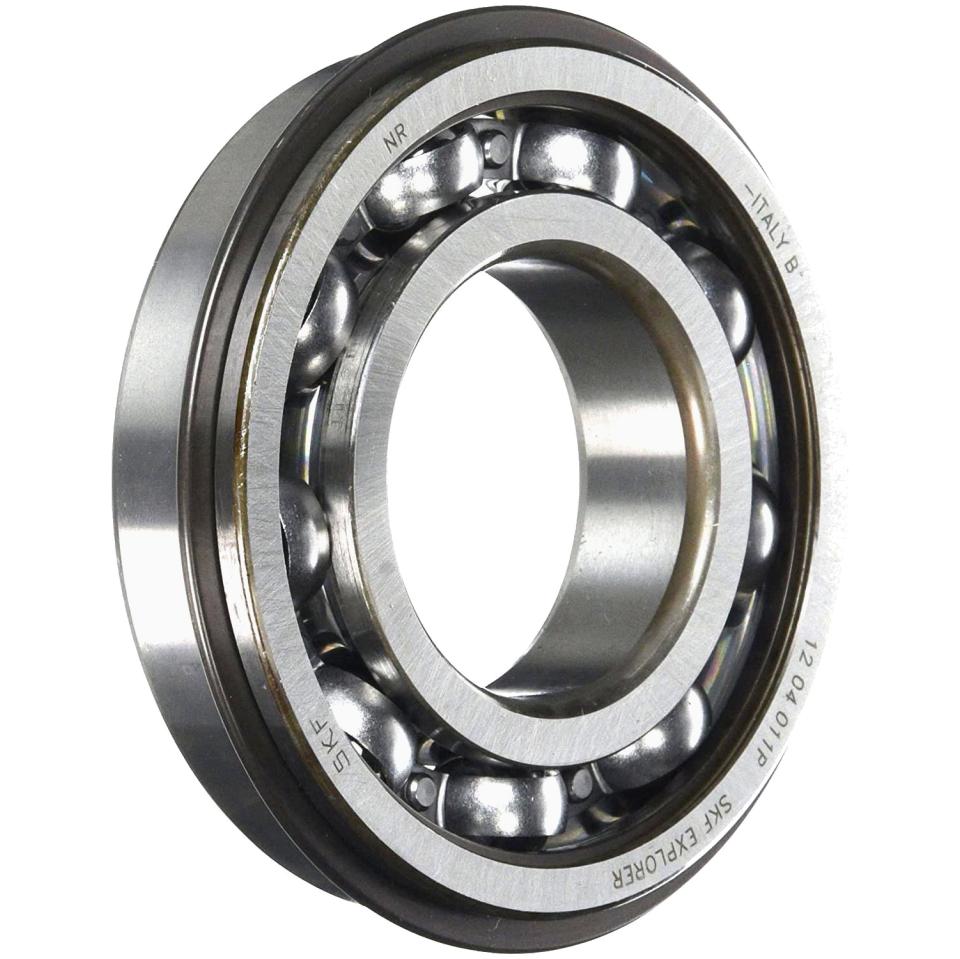

6315NR/C3 SKF Deep Groove Ball Bearing with Circlip Groove and Circlip 75x160x37mm
SKF Single row deep groove ball bearing with circlip and circlip groove & C3 clearance 75mm inside x 160mm outside x 37mm width
Regular price
£211.99 inc.VAT
£176.66 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Single row deep groove ball bearings with a snap ring groove are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The snap ring, fitted in an annular groove in the outer ring, facilitates axial location of the bearings within their housings.
Snap ring facilitates axial location within housing
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

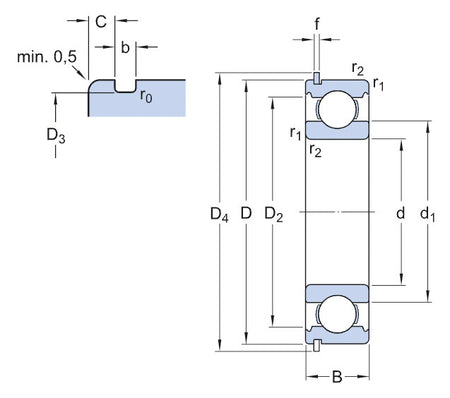

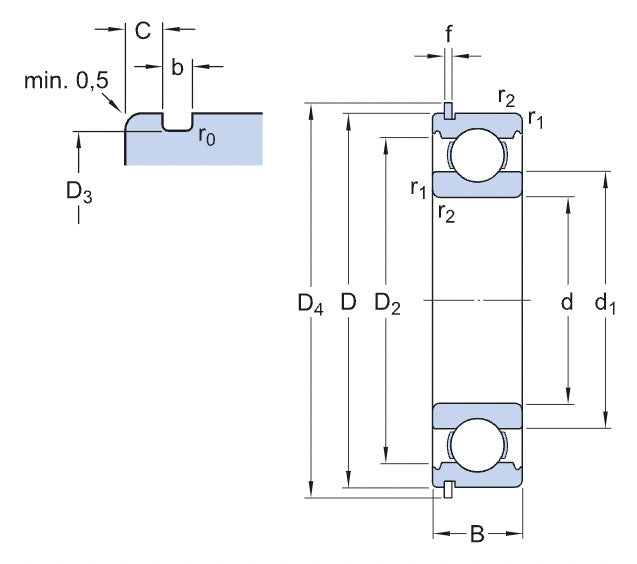

Dimensions
Bore diameter 75 mm
Outside diameter 160 mm
Width 37 mm
Performance
Basic dynamic load rating 119 kN
Basic static load rating 76.5 kN
Limiting speed 5 600 r/min
Reference speed 9 000 r/min
Properties
Bore type Cylindrical
Cage Sheet metal
Coating Without
Filling slots Without
Locating feature, bearing outer ring Snap ring (fitted)
Lubricant None
Matched arrangement No
Material, bearing Bearing steel
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
SKF performance class SKF Explorer
Sealing Without
Snap ring facilitates axial location within housing
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance
Dimensions
Bore diameter 75 mm
Outside diameter 160 mm
Width 37 mm
Performance
Basic dynamic load rating 119 kN
Basic static load rating 76.5 kN
Limiting speed 5 600 r/min
Reference speed 9 000 r/min
Properties
Bore type Cylindrical
Cage Sheet metal
Coating Without
Filling slots Without
Locating feature, bearing outer ring Snap ring (fitted)
Lubricant None
Matched arrangement No
Material, bearing Bearing steel
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
SKF performance class SKF Explorer
Sealing Without
