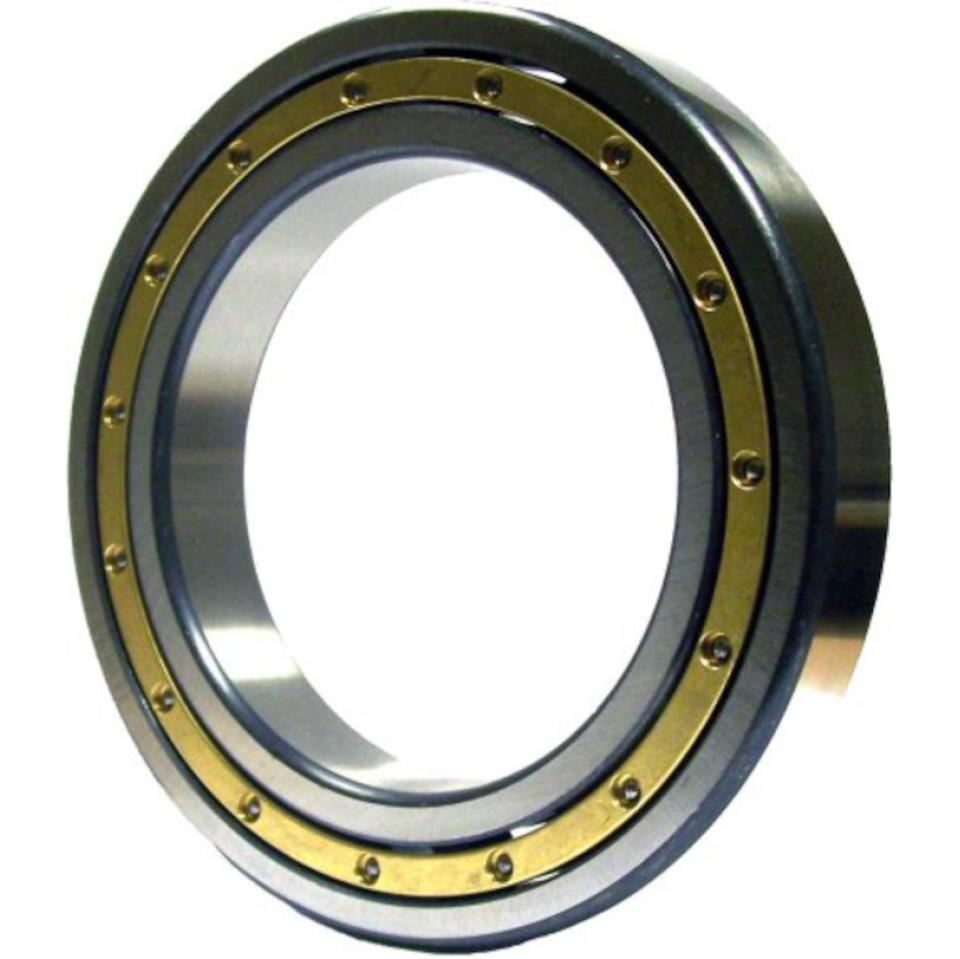

6319M/P64 SKF Deep Groove Ball Bearing with Brass Cage P6 Tolerance Class & C4 Clearance 95x200x45mm
SKF Single row deep groove ball bearing with brass cage, P6 tolerance class & C4 clearance 95mm inside x 200mm outside x 45mm width
Regular price
£807.37
inc.VAT
£672.81 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Pickup available at Bearing King
Usually ready in 24 hours
SKF Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

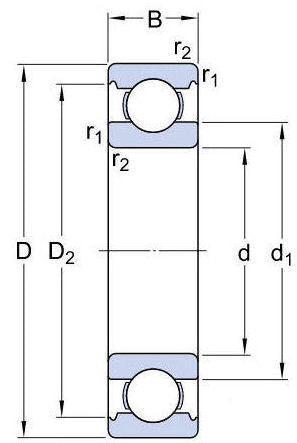

Dimensions
Bore diameter 95 mm
Outside diameter 200 mm
Width 45 mm
Performance
Basic dynamic load rating 159 kN
Basic static load rating 118 kN
Limiting speed 6 300 r/min
Reference speed 7 000 r/min
Properties
Bore type Cylindrical
Coating Without
Filling slots Without
Locating feature, bearing outer ring None
Lubricant None
Matched arrangement No
Material, bearing Bearing steel
Number of rows 1
Radial internal clearance C4
Relubrication feature Without
SKF performance class SKF Explorer
Sealing Without
Tolerance class Tolerance class P6 / ABEC 3
Temperature range 20 to +120 degrees
