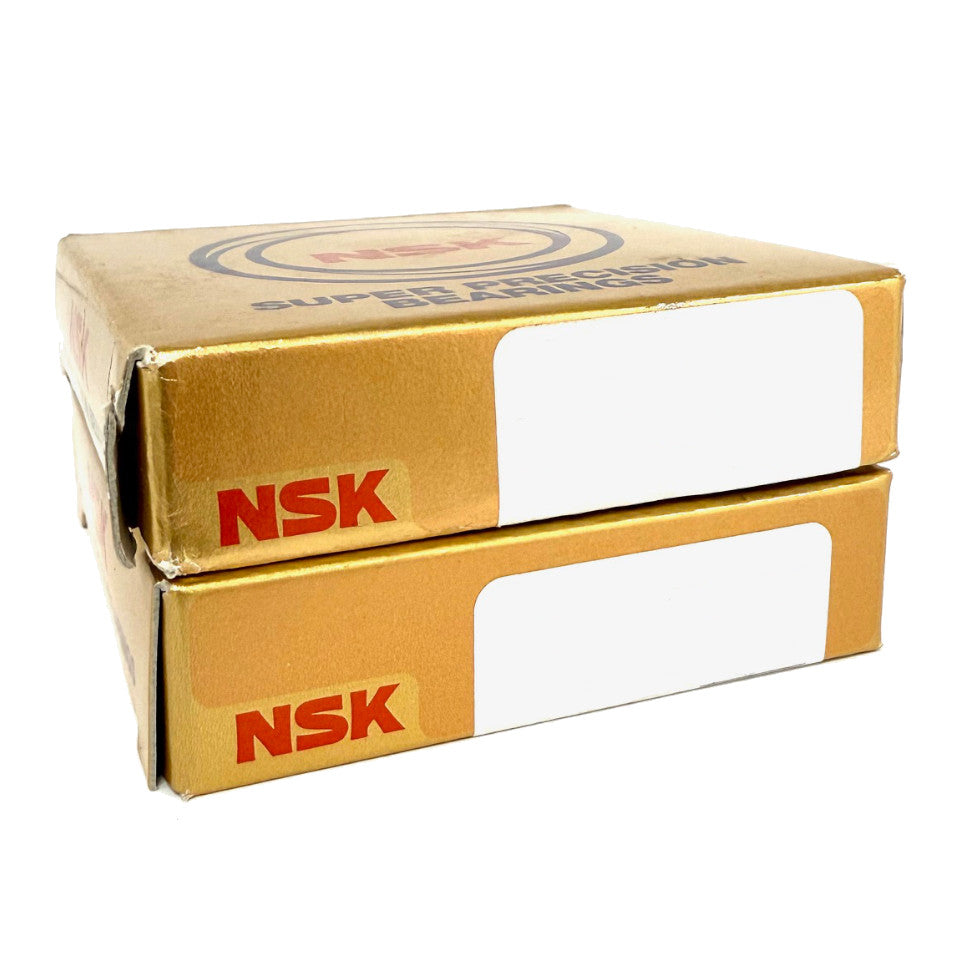

7000A5TRDULP3 NSK Super Precision Angular Contact Bearing 10x26x8mm (pair)
7000A5TRDULP3 NSK Super Precision Angular Contact Bearing 10x26x8mm Diagram
7000A5TRDULP3 NSK Super Precision Angular Contact Bearing 10x26x8mm (pair)
7000A5TRDULP3 NSK Super Precision Angular Contact Bearing 10x26x8mm Diagram

7000A5TRDULP3 NSK Super Precision Angular Contact Bearing 10x26x8mm (pair)

In stock
SKU: 7000A5TRDULP3-NSK
NSK High precision angular contact ball bearing with phenolic cage, 25 degree contact angle, universal pair, light preload 10mm inside x 26mm outside x 8mm wide
£143.63 inc.VAT
£119.69 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
 More payment options

Pickup available at Bearing King

Usually ready in 24 hours

Product details

  • Vendor NSK
  • SKU 7000A5TRDULP3-NSK
  • Inside diameter (d) 10mm
  • Outside diameter (D) 26mm
  • Width (B) 8mm
Description Shipping Information Returns

High Precision Angular Contact Ball Bearings (standard series) have a line connecting the contact points drawn in the radial direction which is called the contact angle. This contact angle makes the bearing suitable for accommodating radial loads, single direction axial loads and a combination of both, these bearings are generally used in pairs but can also be used in triplex sets, quadruplex sets or multiplex sets,

70xx, 72xx and 79xx series have three types of contact angle 15 degree (C), 25 degree (A5) and 30 degree (A), all come with two types of cage design either phenolic (TR) or polyamide (TYN),

Boundary Dimensions

d 10 mm Bore diameter
D 26 mm Outside diameter
B 8 mm Width
r(min.) 0.3 mm Chamfer Dimension
r1(min.) 0.15 mm Chamfer Dimension

Basic Load Ratings

Cr 6.50 kN Basic Dynamic Load Rating
C0r 2.41 kN Basic Static Load Rating

Speeds

Grease 55600 min-1 Limiting Speed
Oil (Oil-air) 83400 min-1 Limiting Speed

Dimensions

A5: 25° Contact Angle
a 8.2 mm Effective Load Center

Abutment and Fillet Dimensions

da(min.) 12.5 mm Diameter of Shaft Abutment
Da(max.) 23.5 mm Diameter of Housing Abutment
Db(max.) 24.8 mm Diameter of Housing Abutment
ra(max.) 0.3 mm Radius of Shaft or Housing Fillet
rb(max.) 0.15 mm Radius of Shaft or Housing Fillet

Performance

Pa 2.48 kN Permissible Axial Load

Preload,Rigidity(DB and DF arrangement)

Preload Axial Rigidity Measured axial clearance
EL 17N 29N/μm 1μm
L 43N 41N/μm -2μm
M 78N 52N/μm -5μm
H 153N 68N/μm -10μm

Additional information

0.12 g/brg Recommended Grease Quantities

Mass

0.019 kg Mass(approx.)
