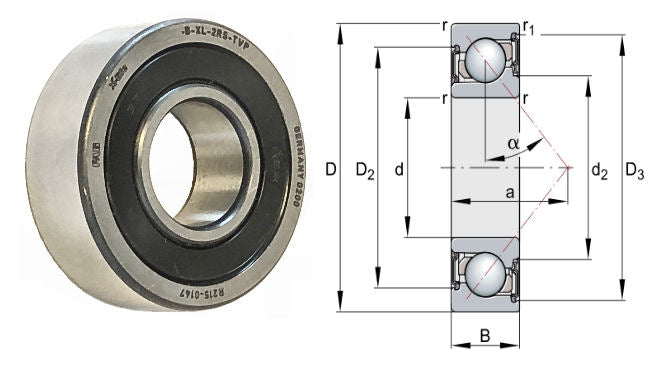

7008-B-2RS-TVP FAG X Life Sealed Angular Contact Bearing 40x68x15mm
FAG Single row angular contact ball bearing with two rubber seals 40mm inside x 68mm outside x 15mm width, also known as 7008BXL2RSTVP, 70082RS, 7008B2RSTVP
Regular price
£103.01
inc.VAT
£85.84 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.
Bearings with the suffix 2RS have lip seals on both sides. Due to their good sealing action, they are suitable for use in dusty, contaminated or damp environments.
d: 40mm
D: 68mm
B: 15mm
a: 30mm
D1: 58,8mm
D2: 59,4mm
D3: 65mm
Da max: 63,4mm
Db max: 64,8mm
d2: 48,3mm
da min: 44,6mm
r1 min: 0,6mm
ra max: 1mm
ra1 max: 0,6mm
r min: 1mm
Contact angle: 40 degree
Mass: 0,17 kg
Basic dynamic load rating, radial: 28000 N
Basic static load rating, radial: 20300 N
Limiting speed: 5200 1/min
Fatigue limit load, radial: 1370 N
Bearings with the suffix 2RS have lip seals on both sides. Due to their good sealing action, they are suitable for use in dusty, contaminated or damp environments.
d: 40mm
D: 68mm
B: 15mm
a: 30mm
D1: 58,8mm
D2: 59,4mm
D3: 65mm
Da max: 63,4mm
Db max: 64,8mm
d2: 48,3mm
da min: 44,6mm
r1 min: 0,6mm
ra max: 1mm
ra1 max: 0,6mm
r min: 1mm
Contact angle: 40 degree
Mass: 0,17 kg
Basic dynamic load rating, radial: 28000 N
Basic static load rating, radial: 20300 N
Limiting speed: 5200 1/min
Fatigue limit load, radial: 1370 N
