7202-B-2RS-TVP FAG X Life Sealed Angular Contact Bearing 15x35x11mm
FAG Single row angular contact ball bearing with two rubber seals 15mm inside x 35mm outside x 11mm width, also known as 7202BXL2RSTVP, 72022RS, 7202B2RSTVP
Regular price
£39.78
inc.VAT
£33.15 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.
Bearings with the suffix 2RS have lip seals on both sides. Due to their good sealing action, they are suitable for use in dusty, contaminated or damp environments.

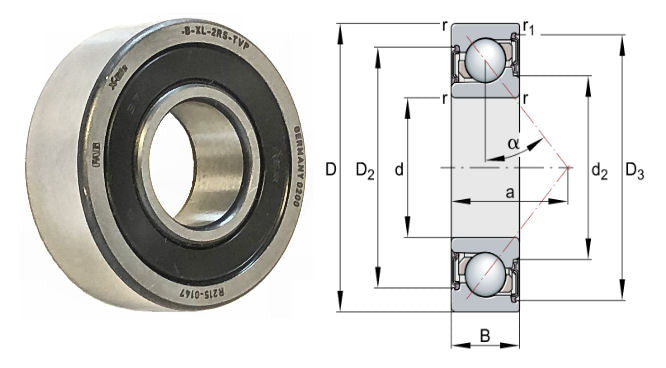

d: 15mm
D: 35mm
B: 11mm
a: 16mm
D1: 27,6mm
D2: 29,2mm
D3: 32,1mm
Da max: 30,8mm
Db max: 32,6mm
d2: 19,7mm
da min: 19,2mm
r1 min: 0,3mm
ra max: 0,6mm
ra1 max: 0,3mm
r min: 0,6mm
Contact angle: 40 degree
Mass: 0,048 kg
Basic dynamic load rating, radial: 8400 N
Basic static load rating, radial: 4450 N
Limiting speed: 12800 1/min
Fatigue limit load, radial: 300 N
Bearings with the suffix 2RS have lip seals on both sides. Due to their good sealing action, they are suitable for use in dusty, contaminated or damp environments.
d: 15mm
D: 35mm
B: 11mm
a: 16mm
D1: 27,6mm
D2: 29,2mm
D3: 32,1mm
Da max: 30,8mm
Db max: 32,6mm
d2: 19,7mm
da min: 19,2mm
r1 min: 0,3mm
ra max: 0,6mm
ra1 max: 0,3mm
r min: 0,6mm
Contact angle: 40 degree
Mass: 0,048 kg
Basic dynamic load rating, radial: 8400 N
Basic static load rating, radial: 4450 N
Limiting speed: 12800 1/min
Fatigue limit load, radial: 300 N
