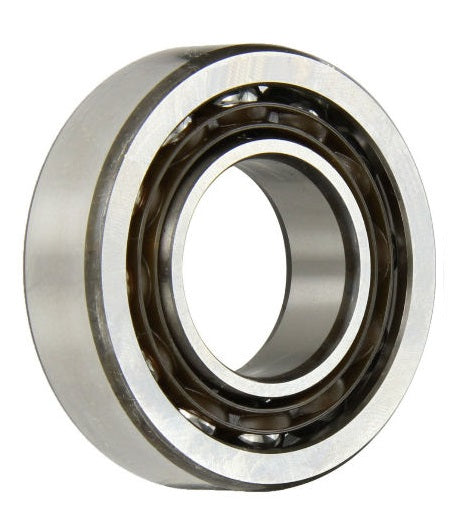

7205BEAT85 NSK Single Row Angular Contact Ball Bearing 25x52x15mm

In stock
SKU: 7205BEAT85-NSK
Single row angular contact ball bearing with polymer cage 25mm inside x 52mm outside x 15mm wide

$21.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor NSK
  • SKU 7205BEAT85-NSK
  • Inside diameter (d) 25mm
  • Outside diameter (D) 52mm
  • Width (B) 15mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing... Read full description ↓ Show less ↑
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

40 Degree Contact Angle

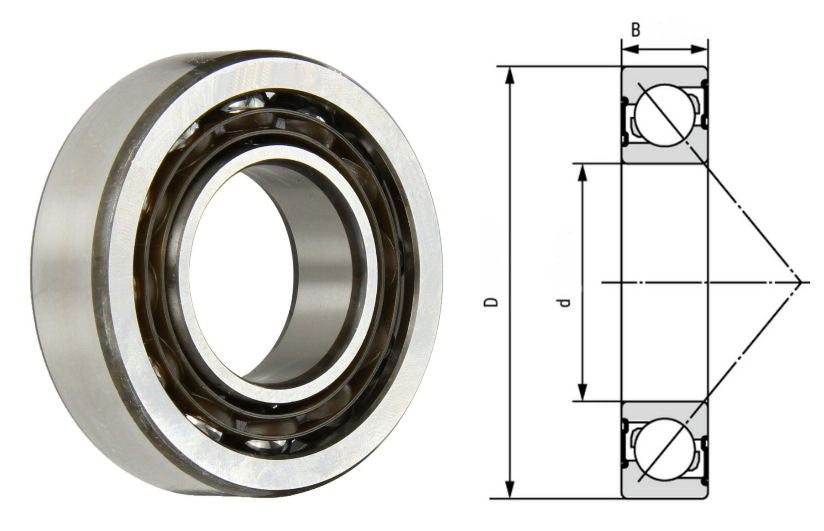

Dimensions
d: 25mm
D: 52mm
B: 15mm

Load Ratings
Dynamic: 16.4kN
Static: 9.35kN

Speed Limits
Grease: 11000 r/min
Oil: 14900 r/min

Weight: 120g
