7208-B-2RS-TVP FAG X Life Sealed Angular Contact Bearing 40x80x18mm

In stock
SKU: 7208-B-2RS-TVP-FAG
FAG Single row angular contact ball bearing with two rubber seals 40mm inside x 80mm outside x 18mm width, also known as 7208BXL2RSTVP, 72082RS, 7208B2RSTVP
Regular price £85.02 inc.VAT
£70.85 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
FREE Shipping Truck
 More payment options

Pickup available at Bearing King

Usually ready in 24 hours

Product details

  • Vendor FAG
  • SKU 7208-B-2RS-TVP-FAG
  • Inside diameter (d) 40mm
  • Outside diameter (D) 80mm
  • Width (B) 18mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

Bearings with the suffix 2RS have lip seals on both sides. Due to their good sealing action, they are suitable for use in dusty, contaminated or damp environments.

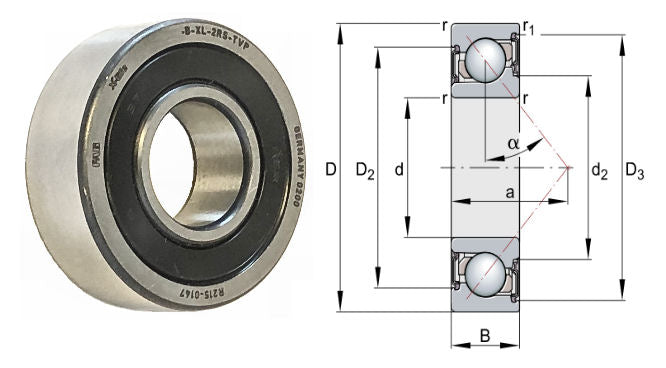

d: 40mm
D: 80mm
B: 18mm
a: 34mm
D1: 64,4mm
D2: 67mm
D3: 73,8mm
Da max: 73mm
Db max: 75,8mm
d2: 52mm
da min: 47mm
r1 min: 0,6mm
ra max: 1mm
ra1 max: 0,6mm
r min: 1,1mm
Contact angle: 40 degree

Mass: 0,379 kg

Basic dynamic load rating, radial: 34000 N
Basic static load rating, radial: 23500 N
Limiting speed: 5000 1/min
Fatigue limit load, radial: 1630 N
