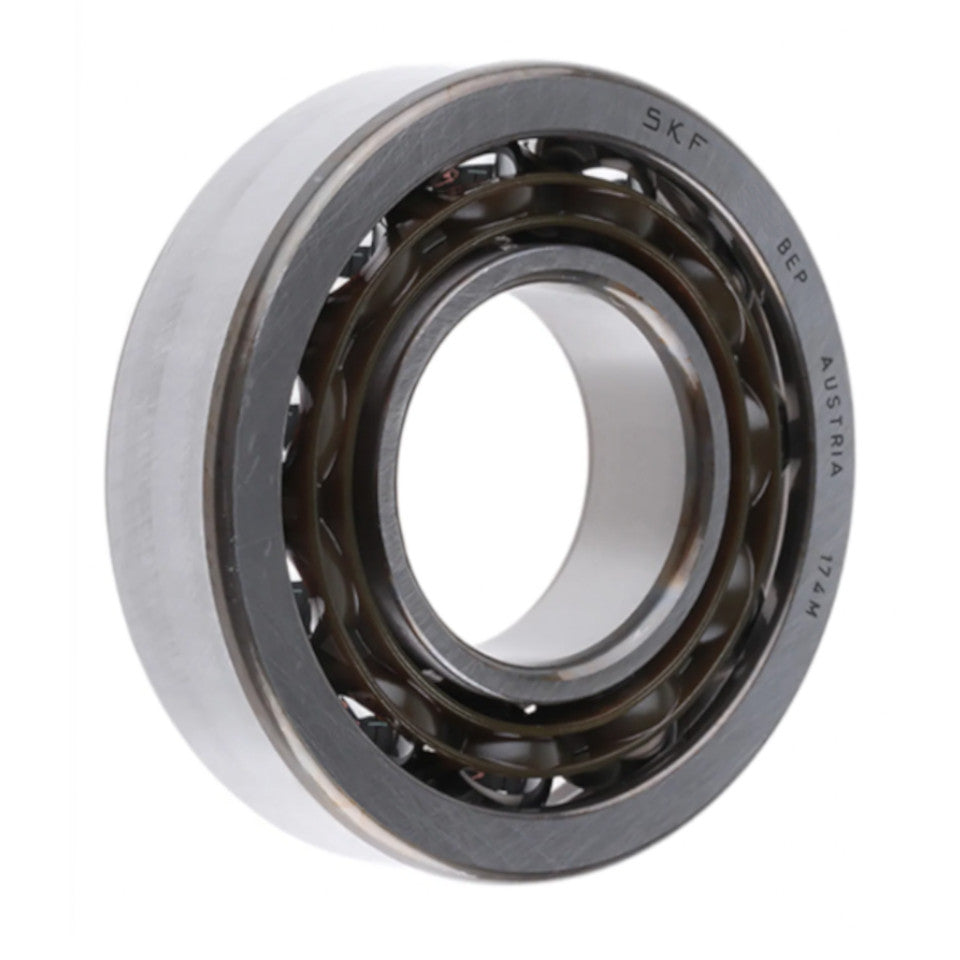

SKF Single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity.
Principal Dimensions
Inside diameter d: 85mm
Outside diameter D: 150mm
Width B: 28mm
Basic Load Ratings
Dynamic: 95.6kn
Static: 83kn
Speed Ratings
Reference speed: 5000 r/min
Limiting speed: 5000 r/min

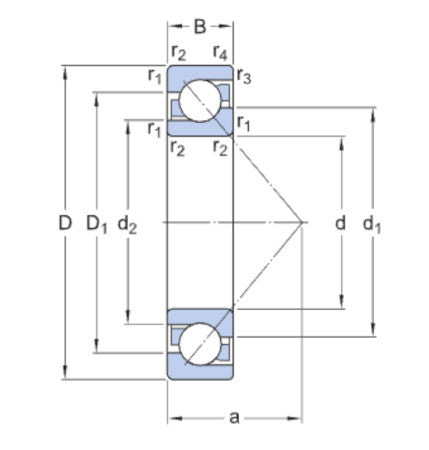

Dimensions mm
d1: 110.1
d2: 97
D1: 126.7
r1,2 min: 2
r3,4 min: 1
a: 63
da min: 96
Da max: 139
Db max: 144
ra max: 2
rb max: 1
