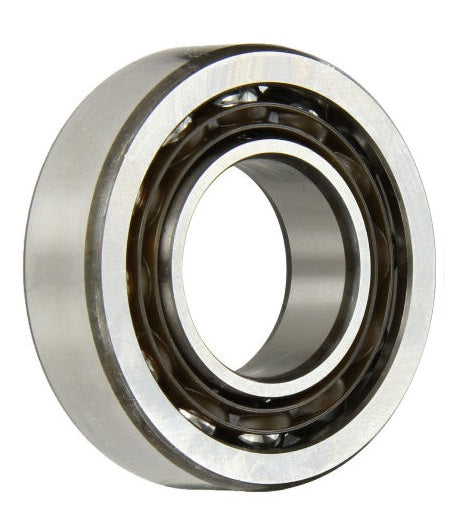

7307BEAT85SUN NSK Single Row Angular Contact Ball Bearing 35x80x21mm

In stock
Single row angular contact ball bearing with polymer cage 35mm inside x 72mm outside x 19mm wide

$60.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor NSK
  • SKU 7307BEAT85SUN-NSK
  • Inside diameter (d) 35mm
  • Outside diameter (D) 80mm
  • Width (B) 21mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing... Read full description ↓ Show less ↑
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

40 Degree Contact Angle

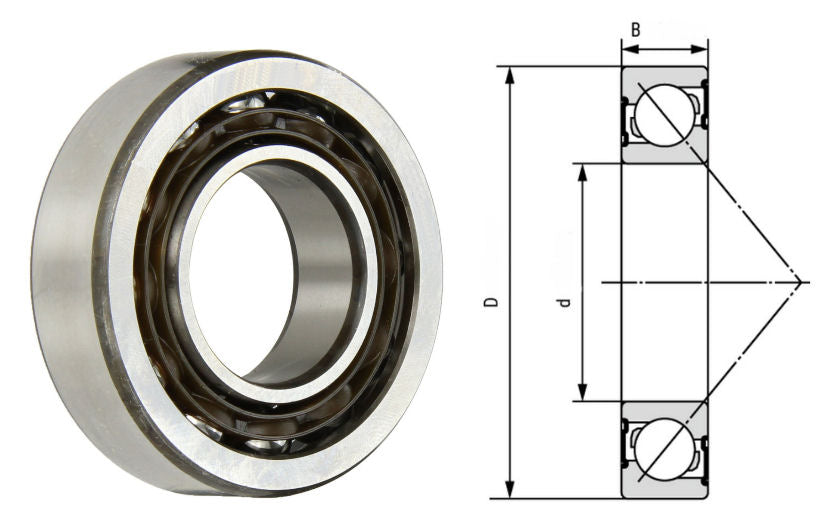

Dimensions
d: 35mm
D: 80mm
B: 21mm

Load Ratings
Dynamic: 40.5kN
Static: 24.4kN

Speed Limits
Grease: 9000 r/min
Oil: 13000 r/min

Weight: 469g
