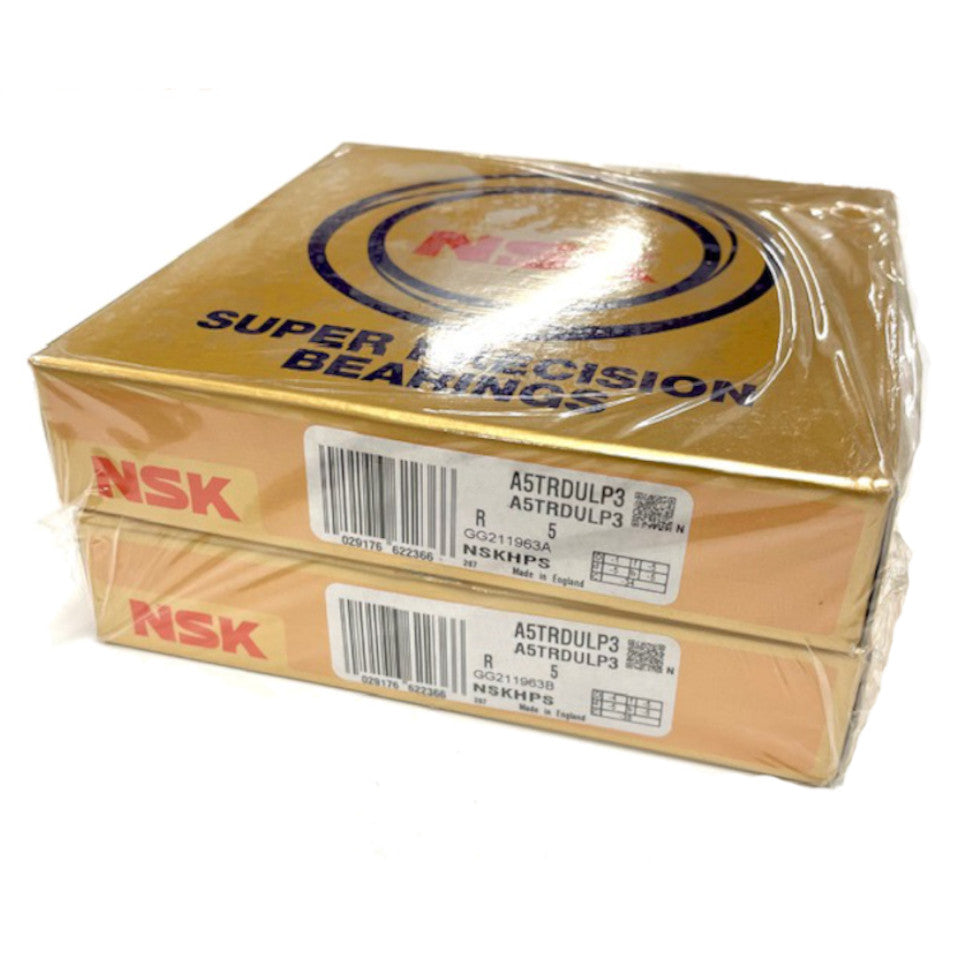

7912A5TRDULP3 NSK Super Precision Angular Contact Bearing 60x85x13mm (set of 2)
NSK High precision angular contact ball bearing with phenolic cage, 25 degree contact angle, 60mm inside x 85mm outside x 13mm wide
Regular price
£359.16
inc.VAT
£299.30 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
High Precision Angular Contact Ball Bearings (standard series) have a line connecting the contact points drawn in the radial direction which is called the contact angle. This contact angle makes the bearing suitable for accommodating radial loads, single direction axial loads and a combination of both, these bearings are generally used in pairs but can also be used in triplex sets, quadruplex sets or multiplex sets,
70xx, 72xx and 79xx series have three types of contact angle 15 degree (C), 25 degree (A5) and 30 degree (A), all come with two types of cage design either phenolic (TR) or polyamide (TYN),
A5 = 25 Degree contact angle
DU = Pair of bearings paired universal
L= Light preload
P3 = Precision rating

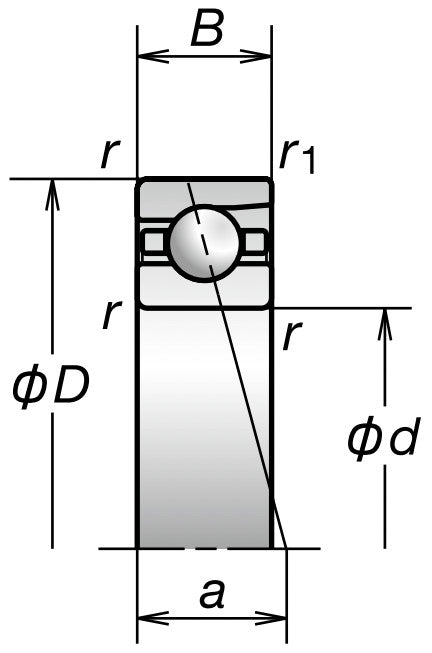

d: 60mm
D: 85mm
B: 13mm
Basic load ratings: dynamic 18.3kn, static 17.7kn
Permissible axial load: 13.0kn
Contact angle (degree) 25
Factor: - fo
Effective load center: 23.4mm
Mass: 0.198kg
Limiting speed grease: 13 800
Limiting speed oil: 20 700
