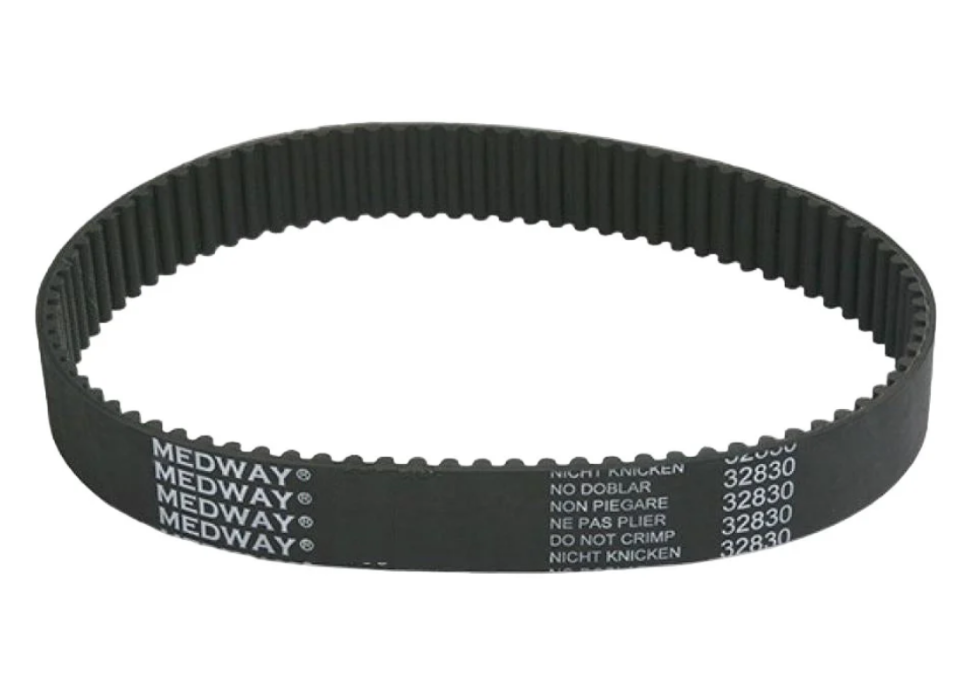

800-8M-20 Medway HTD High Power Timing Belt, 800mm Length, 20mm Wide, 8mm Pitch, 100 Teeth
Medway HTD Timing belt 800mm pitch length 20mm wide 8mm pitch 100 teeth, also knownn as HTD800-8M-20
Regular price
£9.86
inc.VAT
£8.22 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Features and benefits:
50% to 70% enhancement in power-rating over regular HTD / STD belts
Low noise
Free from maintenance
No lubrication required
Increased operational efficiency up to 98%
Temperature resistance up to 100 Degrees
Optimum operational efficiency and augmented belt life
Lower operational cost
Antistatic properties as required by ISO 9563
DESIGNATION
Example - 800 8M 30
Where 800 : Pitch Length 800 mm
8M : Section (Tooth Pitch 8.0 mm)
30 : Belt width is 30 mm
8M SECTION
Pitch: 8.00mm
Tooth height: 3.48mm
Belt thickness: 6.00mm
