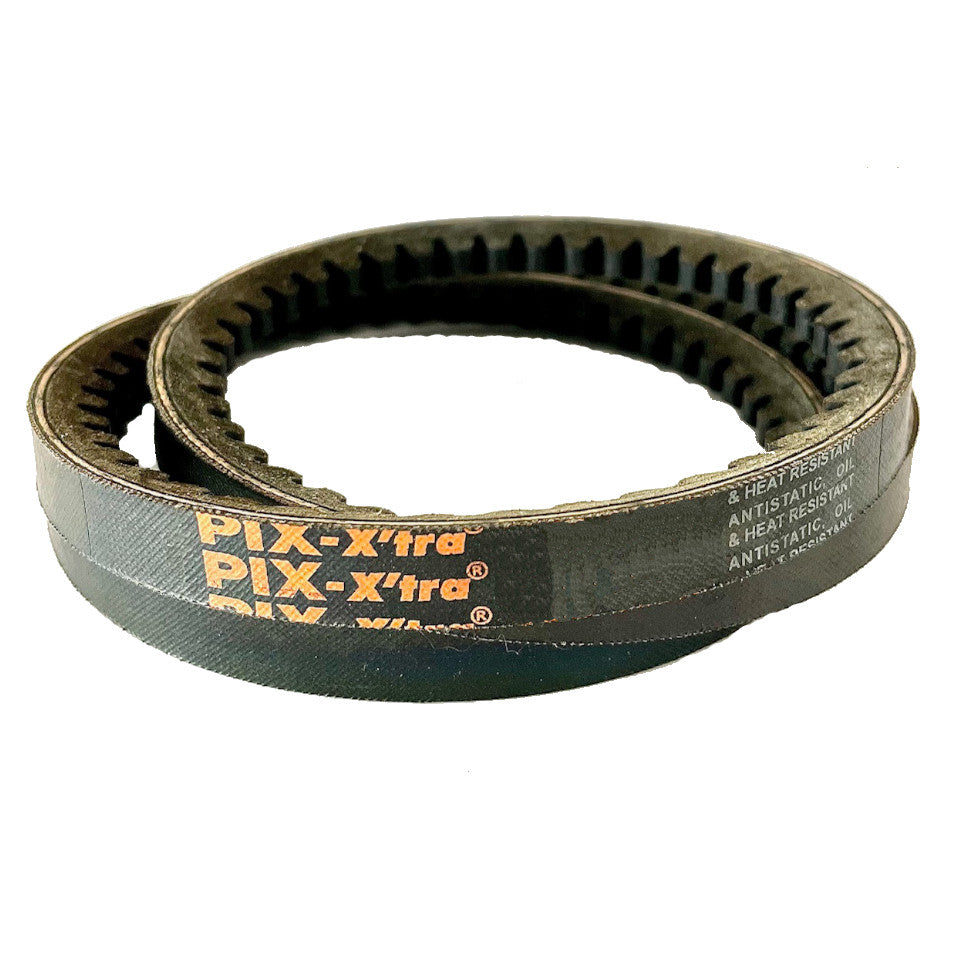

AX23.5 PIX Cogged V Belt, 13mm Top Width, 8mm Thickness, Inside length 597mm

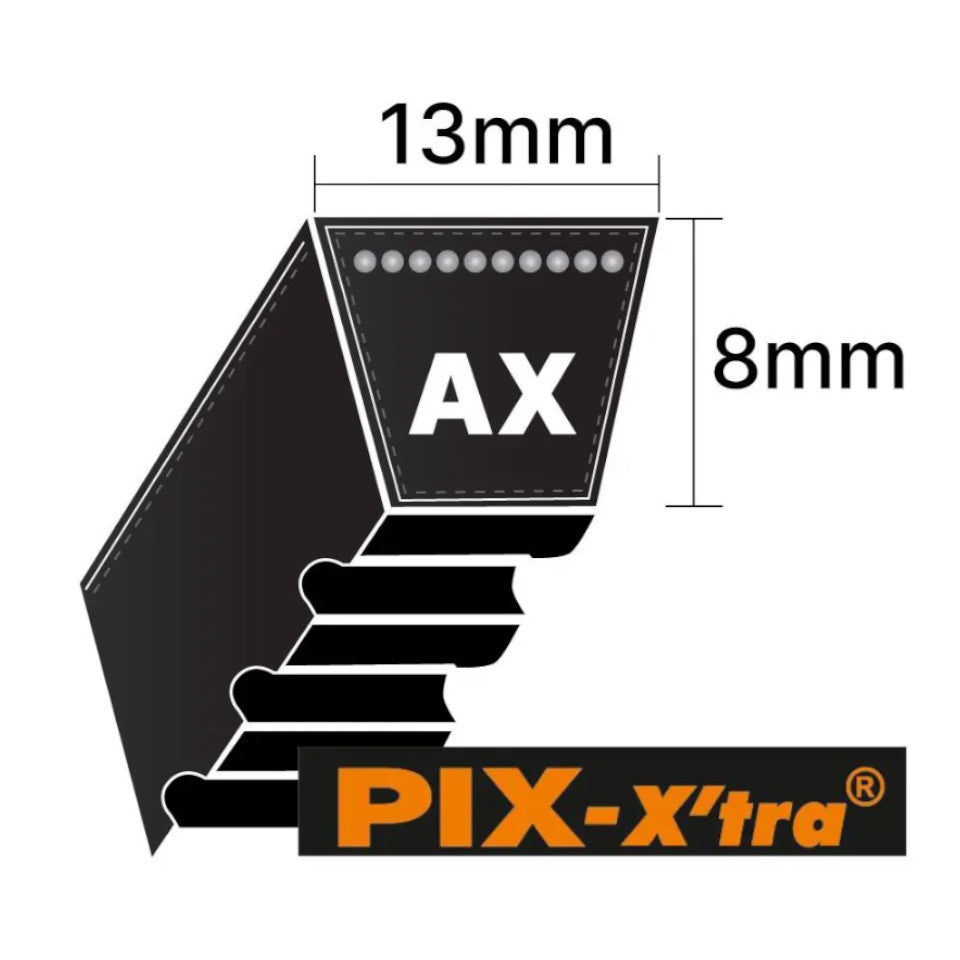

PIX AX section cogged V belt 13mm top width, 8mm thickness, Inside length 597mm, Pitch/datum length Ld 633mm, Outside length 647mm.
Regular price
£3.25
inc.VAT
£2.71 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
PIX Premium quality AX section cogged wedge belts provide the best solutions with the highest quality available on the market today
Features:
Temperature range: -18 degrees to +100 degrees
Maximum recommended belt speed is 30 m/sec
Speed ratios up to 1:12 are possible
High level of power transmission
High wear resistant
High belt speed
Antistatic, oil & heat resistant
Available in Raw Edge Plain/Cogged Const
ATEX certified FRAS belts are also available
Inside length 600mm
Pitch/datum length Ld 633mm
Outside length 647mm
Classical Section: AX
Standard: BS 3790, ISO 4184, IS 2494
Features:
Temperature range: -18 degrees to +100 degrees
Maximum recommended belt speed is 30 m/sec
Speed ratios up to 1:12 are possible
High level of power transmission
High wear resistant
High belt speed
Antistatic, oil & heat resistant
Available in Raw Edge Plain/Cogged Const
ATEX certified FRAS belts are also available
Inside length 600mm
Pitch/datum length Ld 633mm
Outside length 647mm
Classical Section: AX
Standard: BS 3790, ISO 4184, IS 2494
