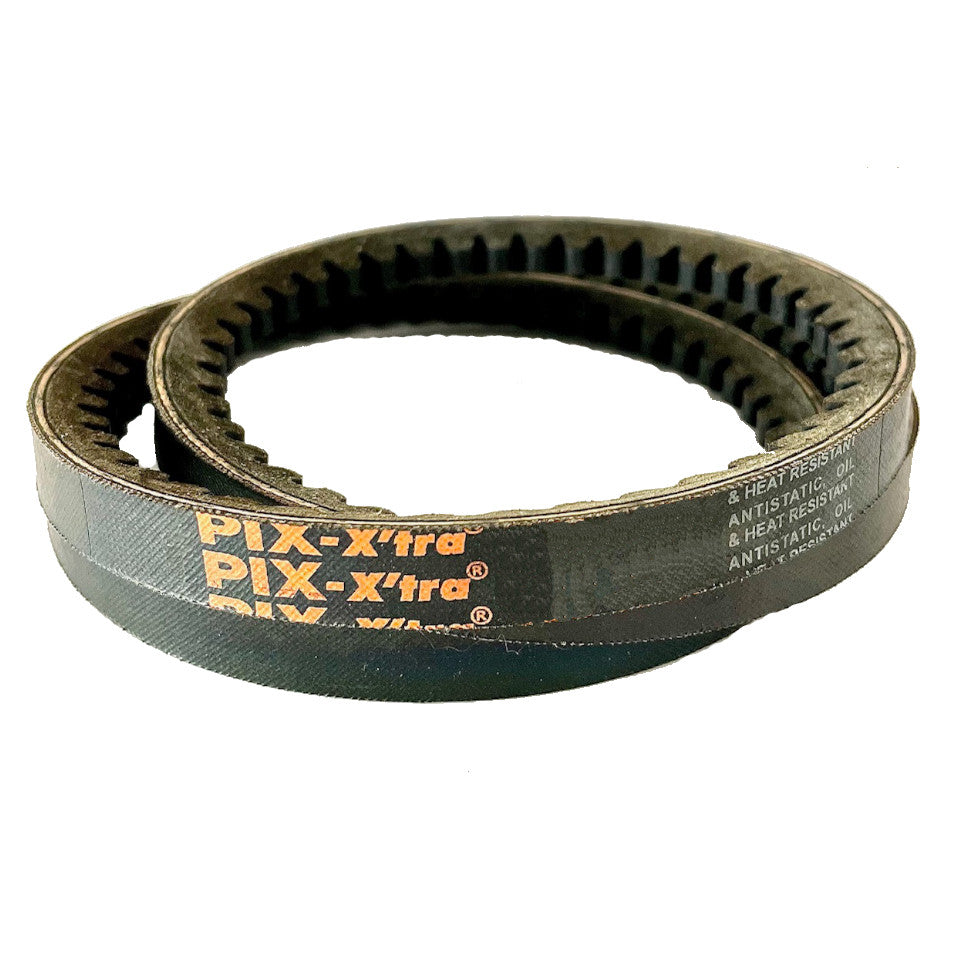

AX86.5 PIX Cogged V Belt, 13mm Top Width, 8mm Thickness, Inside length 2197mm

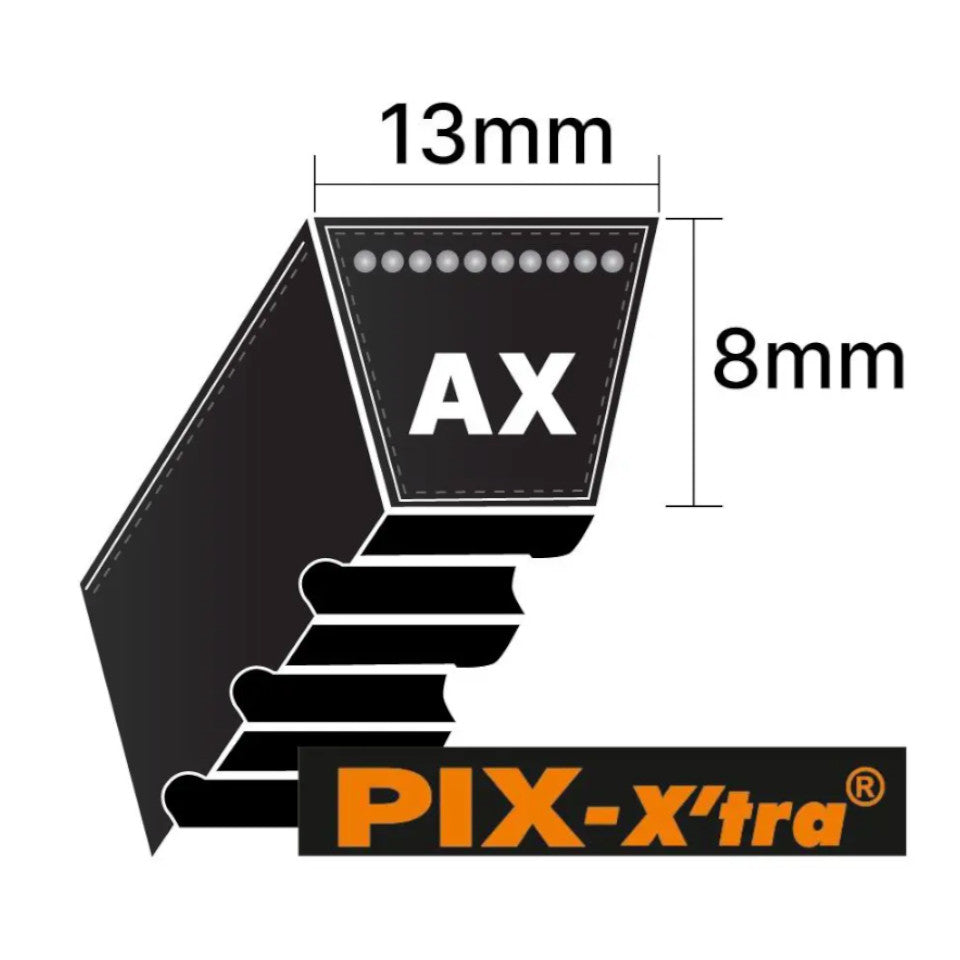

PIX AX section cogged V belt 13mm top width, 8mm thickness, Inside length 2197mm, Pitch/Datum length Ld 2233mm, Outside length 2247mm
Regular price
£11.77
inc.VAT
£9.81 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
PIX Premium quality AX section cogged wedge belts provide the best solutions with the highest quality available on the market today
Features:
Temperature range: -18 degrees to +100 degrees
Maximum recommended belt speed is 30 m/sec
Speed ratios up to 1:12 are possible
High level of power transmission
High wear resistant
High belt speed
Antistatic, oil & heat resistant
Available in Raw Edge Plain/Cogged Const
ATEX certified FRAS belts are also available
Classical Section: AX
Inside length 2200mm
Pitch/Datum length Ld 2233mm
Outside length 2247mm
Standard: BS 3790, ISO 4184, IS 2494
Features:
Temperature range: -18 degrees to +100 degrees
Maximum recommended belt speed is 30 m/sec
Speed ratios up to 1:12 are possible
High level of power transmission
High wear resistant
High belt speed
Antistatic, oil & heat resistant
Available in Raw Edge Plain/Cogged Const
ATEX certified FRAS belts are also available
Classical Section: AX
Inside length 2200mm
Pitch/Datum length Ld 2233mm
Outside length 2247mm
Standard: BS 3790, ISO 4184, IS 2494
