BK25 THK Ball Screw Support Unit
Couldn't load pickup availability
Product details
- Quality Premium
- Vendor THK
- SKU BK25-THK
- Inside diameter (d) 25mm

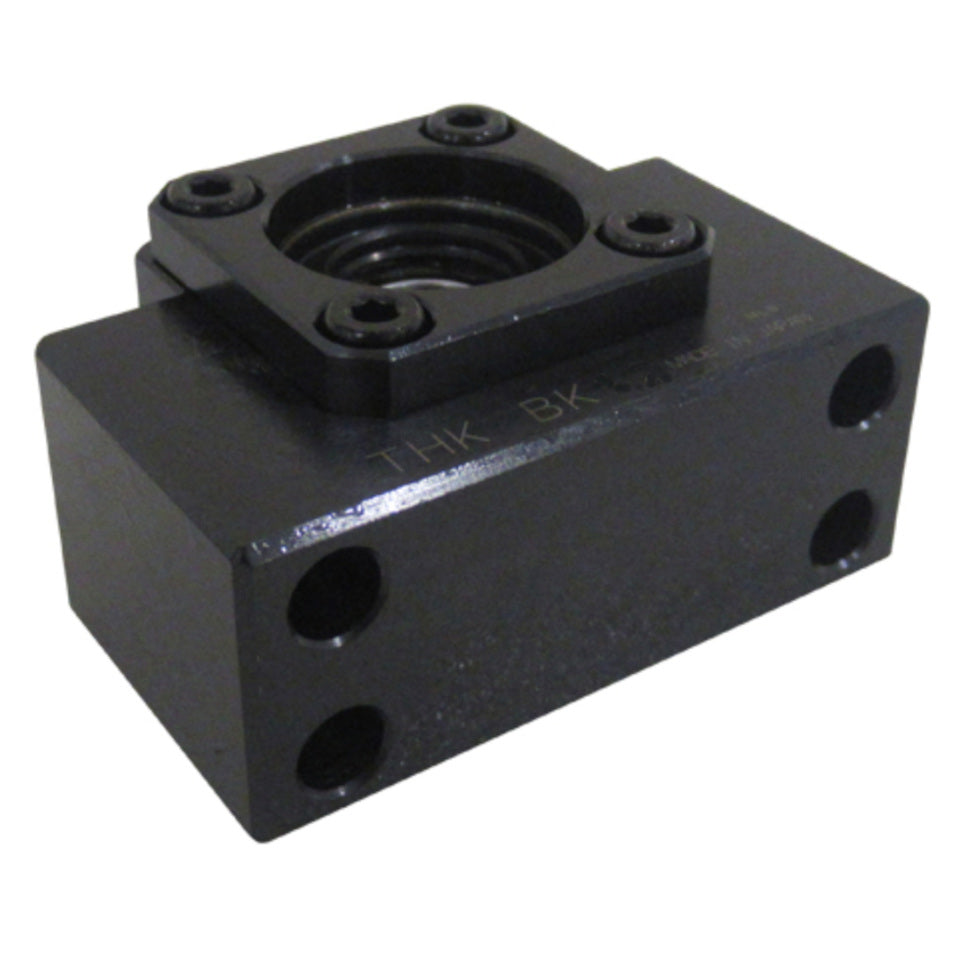

THK square fixed-side support unit for ball screws with a 25 mm bearing journal diameter. The BK25 contains a factory-preloaded P5 angular-contact bearing set in a DF arrangement, providing accurate shaft positioning and high axial rigidity. Its compact housing allows straightforward installation without additional bearing... Read full description ↓ Show less ↑
THK square fixed-side support unit for ball screws with a 25 mm bearing journal diameter.
The BK25 contains a factory-preloaded P5 angular-contact bearing set in a DF arrangement, providing accurate shaft positioning and high axial rigidity. Its compact housing allows straightforward installation without additional bearing adjustment.
The unit is supplied complete with its housing, bearing set, holding lid, collars, seals, lock nut and locking screw.
Product characteristics
Category: Ball screw support units
Manufacturer: THK
Series: BK
Design: Square support unit
Mounting position: Fixed side
Bearing journal diameter: 25 mm
Bearing arrangement: DF angular-contact arrangement
Bearing accuracy: P5
Bearing used: 7205 equivalent
Preload: Factory adjusted
Weight: 2.300 kg
Country of origin: Japan

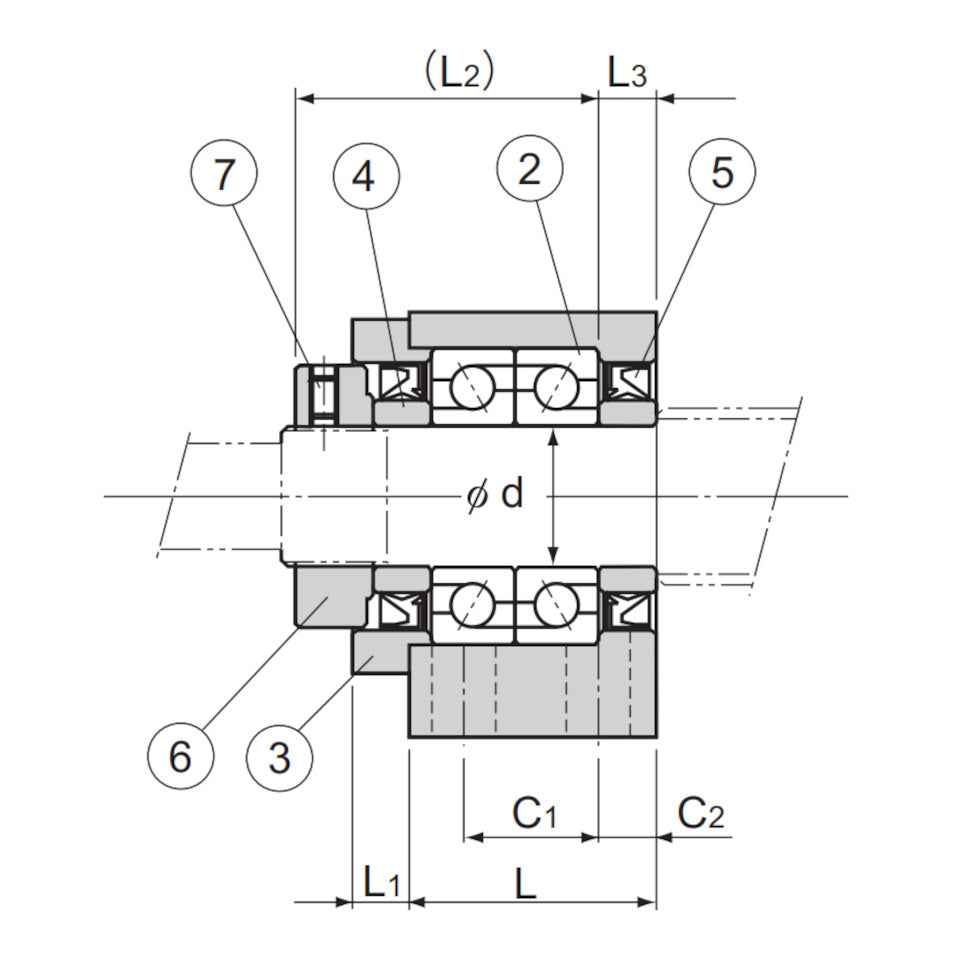

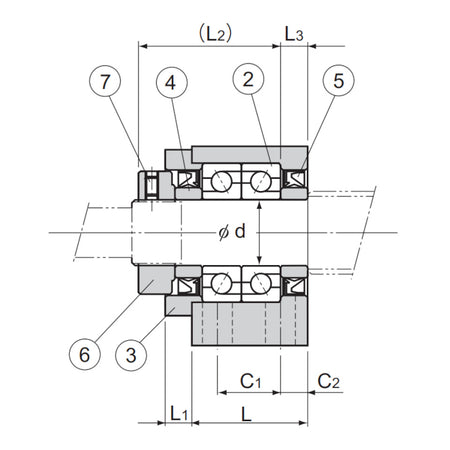

Main dimensions
Shaft diameter d: 25 mm
Length L: 42 mm
L1: 12 mm
L2: 54 mm
L3: 9 mm
Housing width B: 106 mm
Housing height H: 80 mm
Housing thickness b: 53 mm
Shaft centre height h1: 48 mm ±0.02 mm
B1: 64 mm
H1: 70 mm
E: 33 mm
Mounting-hole pitch P: 85 mm
C1: 22 mm
C2: 10 mm
Square dimension T: 35 mm

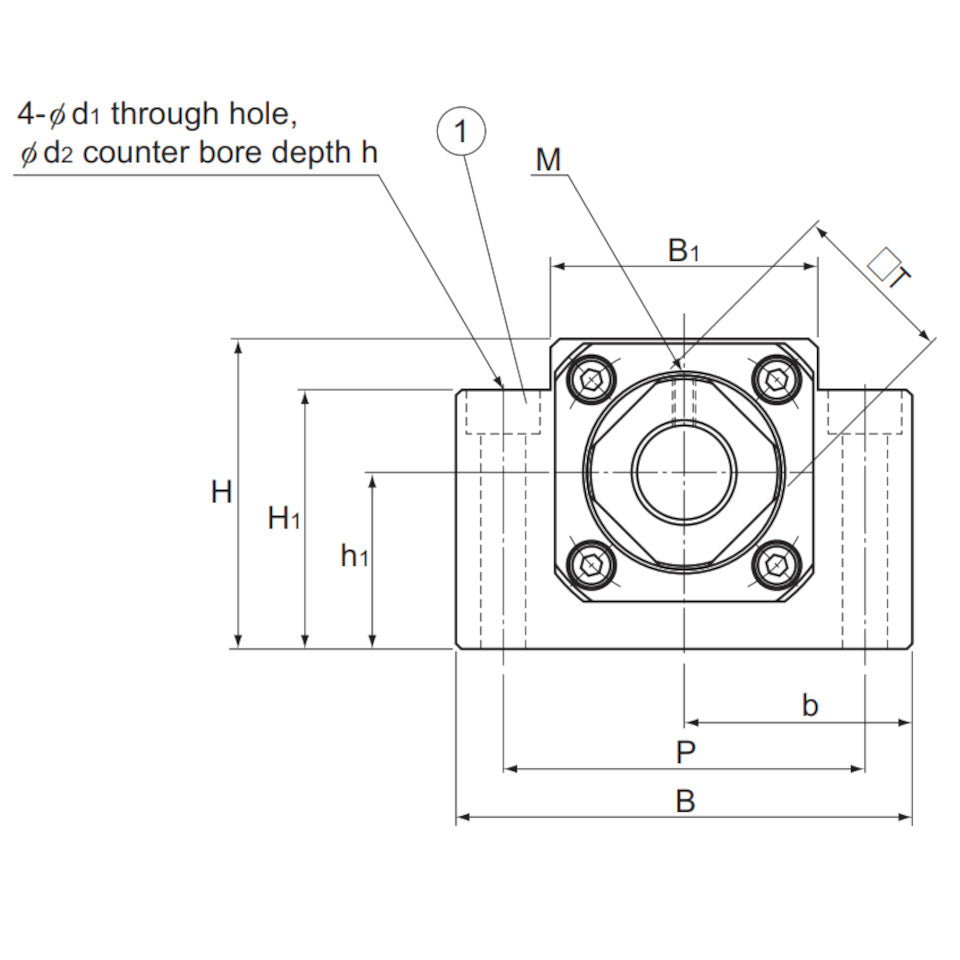

Mounting-hole dimensions
Through-hole diameter d1: 11 mm
Counterbore diameter d2: 17.5 mm
Counterbore depth h: 11 mm
Holding-lid thread M: M5

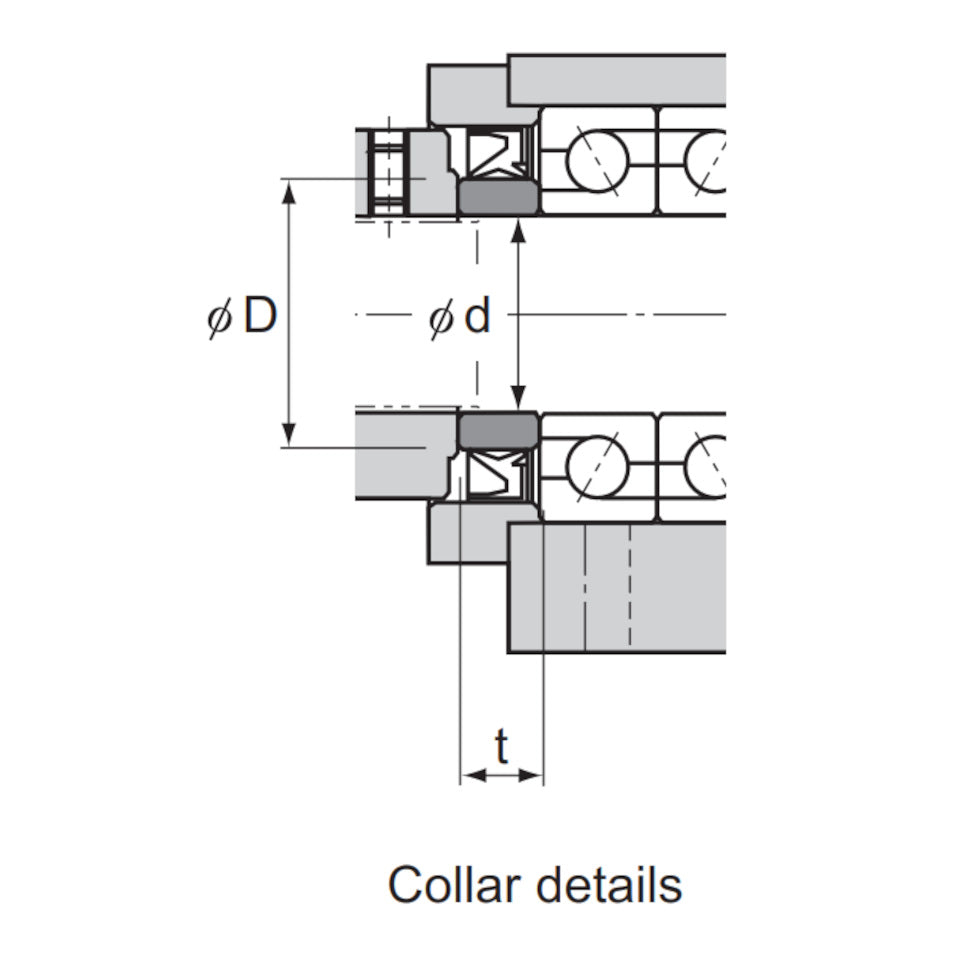

Collar dimensions
Collar outside diameter D: 31.3 mm
Collar thickness t: 9 mm
Load ratings
Basic dynamic axial load rating Ca: 20.2 kN
Static permissible axial load: 11.5 kN
Axial rigidity: 190 N/μm
Components supplied
Housing: 1
Precision bearing set: 1
Holding lid: 1
Collars: 2
Seals: 2
Lock nut: 1
Hexagonal socket-head locking screw with set piece: 1
The BK25 is designed for the fixed end of a ball screw and can be paired with a THK BF25 supported-side unit.
