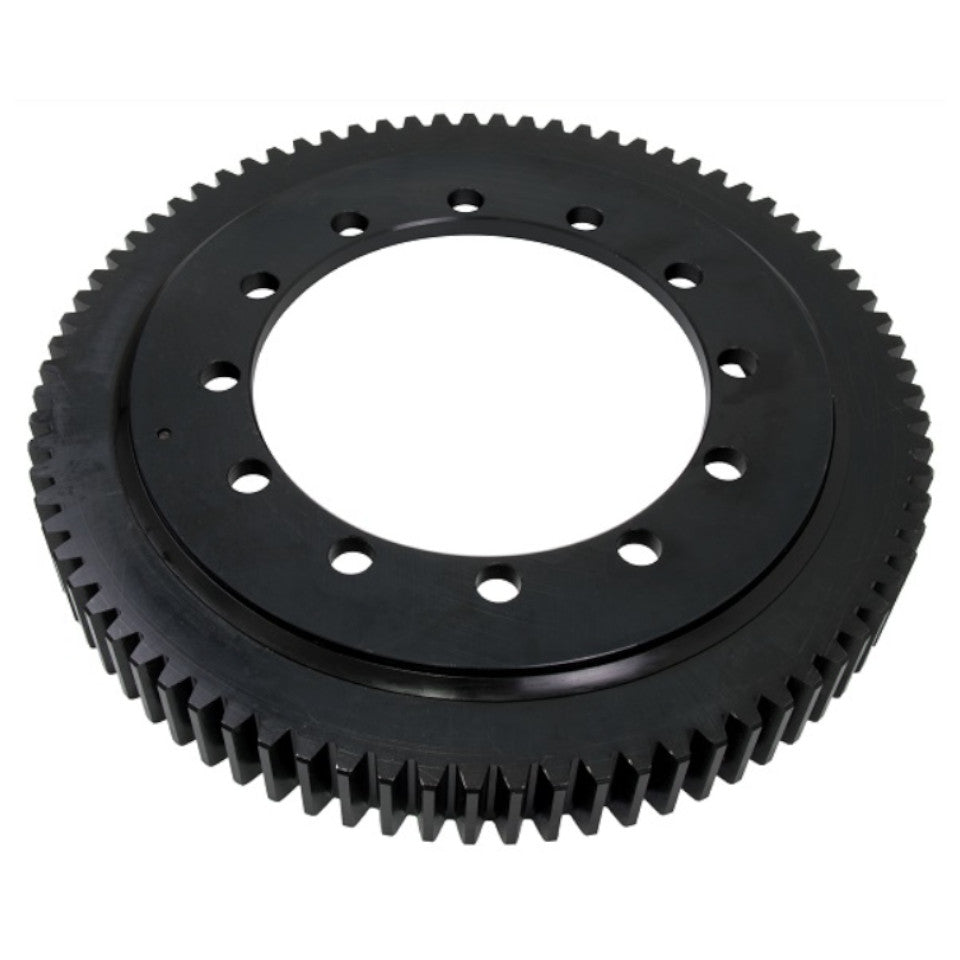

FEG 20 Series slewing rings from QCB are light-series, flanged, externally-geared rotary bearings designed for compact, weight-efficient rotational positioning applications. The design incorporates a flanged inner ring and an externally toothed outer ring separated by a 20 mm ball set, providing smooth rotation with integrated drive capability.
With a constant section height of 56 mm and metric dimensions, the FEG 20 series offers a lightweight yet structurally efficient solution for light-to-medium duty slewing requirements where moderate loads and limited eccentricity are present.
Construction
Standard bearings incorporate plastic spacers between the rolling elements. Alternative spacer arrangements such as ball spacers, steel or brass spacers, full complement, or caged designs can be supplied for specific application requirements.
All geared slewing rings are manufactured from 42CrMo4 steel to provide enhanced gear strength and durability.
Seals
A land-riding nitrile rubber seal strip is fitted as standard. VITON seals are available on request for higher temperature or aggressive environmental conditions.
Gearing
Standard metric spur gearing with 20° pressure angle and no addendum correction is provided on the outer ring. Suitable mating pinions, gearboxes, and drive units can be specified and supplied. Alternative gear standards, including American inch gearing, can be provided if required.
Lubrication
Bearings are assembled and pre-lubricated with Lithium EP2 grease. Special greases for high/low temperature or food-grade environments can be supplied to order.
Applications
The flanged design reduces bearing mass and simplifies mounting, but also reduces torsional stiffness. These bearings are therefore best suited to light-to-medium duty applications where loads are moderate and eccentricity is limited.
Industrial positioners (e.g. welding and assembly jigs)
Truck or ship loading equipment
Chute swivels
Stretch-wrapping machinery
Conveyors and associated materials-handling equipment
Small amusement or rotating platforms
Outline dimensions and weight
Da: 1046mm
Di: 834mm
U: 946mm
C: 943mm
D: 905mm
Outer holes
La: 985mm
na: 20
Inner holes
Li: 862mm
ni: 20
20 Deg stub Gear
P: 1032mm
M: 8
z: 129
Fz max: 52KN
Weight 64kg
Interchange
Rollix - 21 0941 01 ZZ 00
INA - VLA 20 0944 N
SKF (RKS) - RKS 21 0941
Roth ERDE - 21/1050.1
Torriani - E 1050 20 00 C
Rima - 2CE 104 00
ISB - EBL20 0944 200 1 SPTN
IMO - 91 20 0941 0 07162
Leonessa - VE 104 Z100
