THK round fixed-side support unit for ball screws with a 5 mm bearing journal diameter.
The FK5 contains a factory-preloaded P5 angular-contact bearing set in a DF arrangement, providing accurate shaft positioning and high axial rigidity. Its compact round housing is ideal for miniature ball screw applications where installation space is limited.
The unit is supplied complete with its housing, bearing set, set nut, collars, seal, lock nut and locking screw.
Product characteristics
Category: Ball screw support units
Manufacturer: THK
Series: FK
Design: Round support unit
Mounting position: Fixed side
Bearing journal diameter: 5 mm
Bearing arrangement: DF angular-contact arrangement
Bearing accuracy: P5
Bearing used: 705 equivalent
Preload: Factory adjusted
Weight: 0.060 kg
Country of origin: Japan
Main dimensions
Shaft diameter d: 5 mm
Overall length L: 16.5 mm
Flange thickness H: 6 mm
F: 10.5 mm
E: 18.5 mm
Housing location diameter D: 20 mm
Housing outside diameter A: 34 mm
Mounting-hole pitch-circle diameter: 26 mm
B: 26 mm
Square dimension T: 11 mm

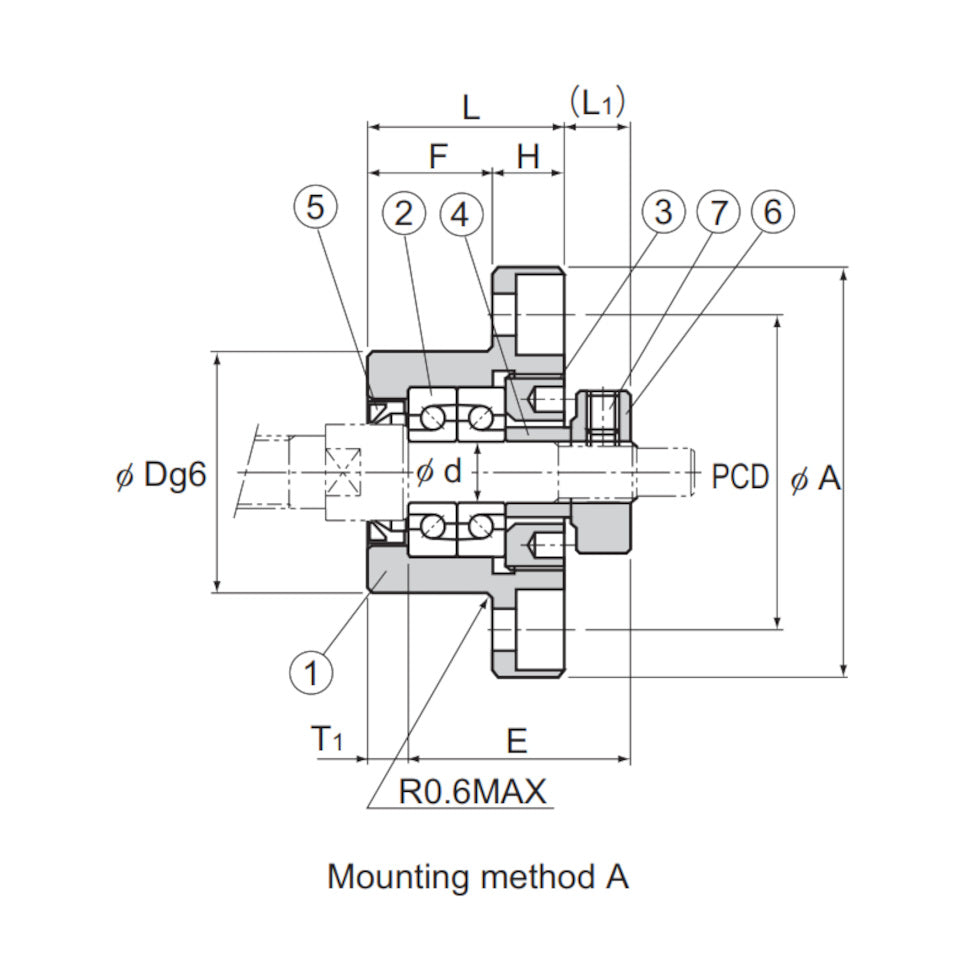

Mounting method A
L1: 5.5 mm
T1: 3.5 mm

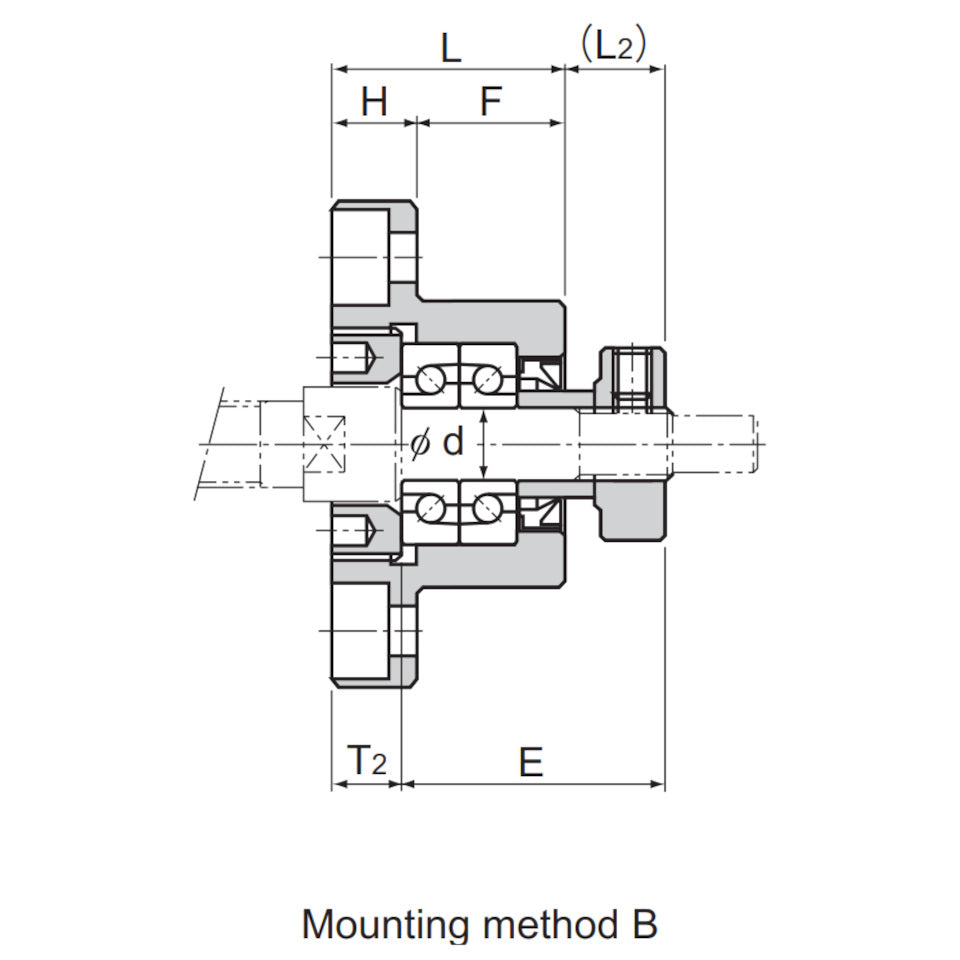

Mounting method B
L2: 7 mm
T2: 5 mm

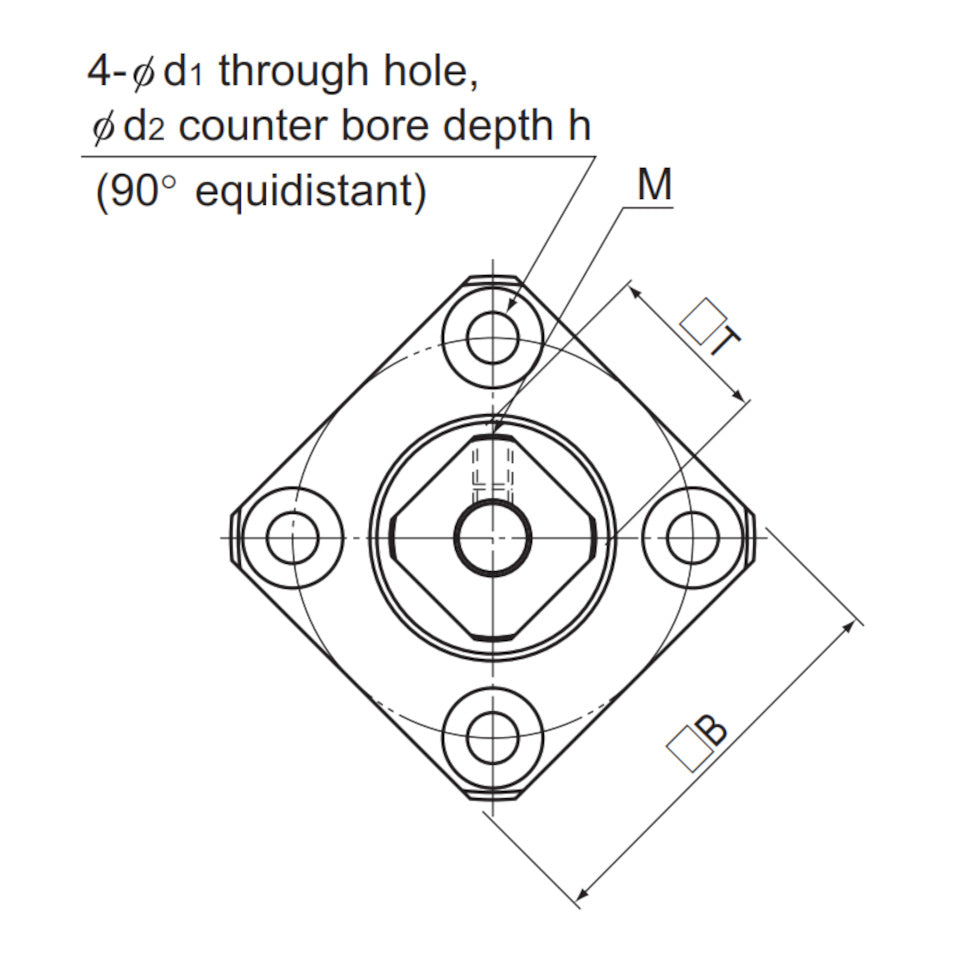

Mounting-hole dimensions
Number of mounting holes: 4
Hole spacing: 90° equidistant
Through-hole diameter d1: 3.4 mm
Counterbore diameter d2: 6.5 mm
Counterbore depth h: 4 mm
Thread M: M2.6

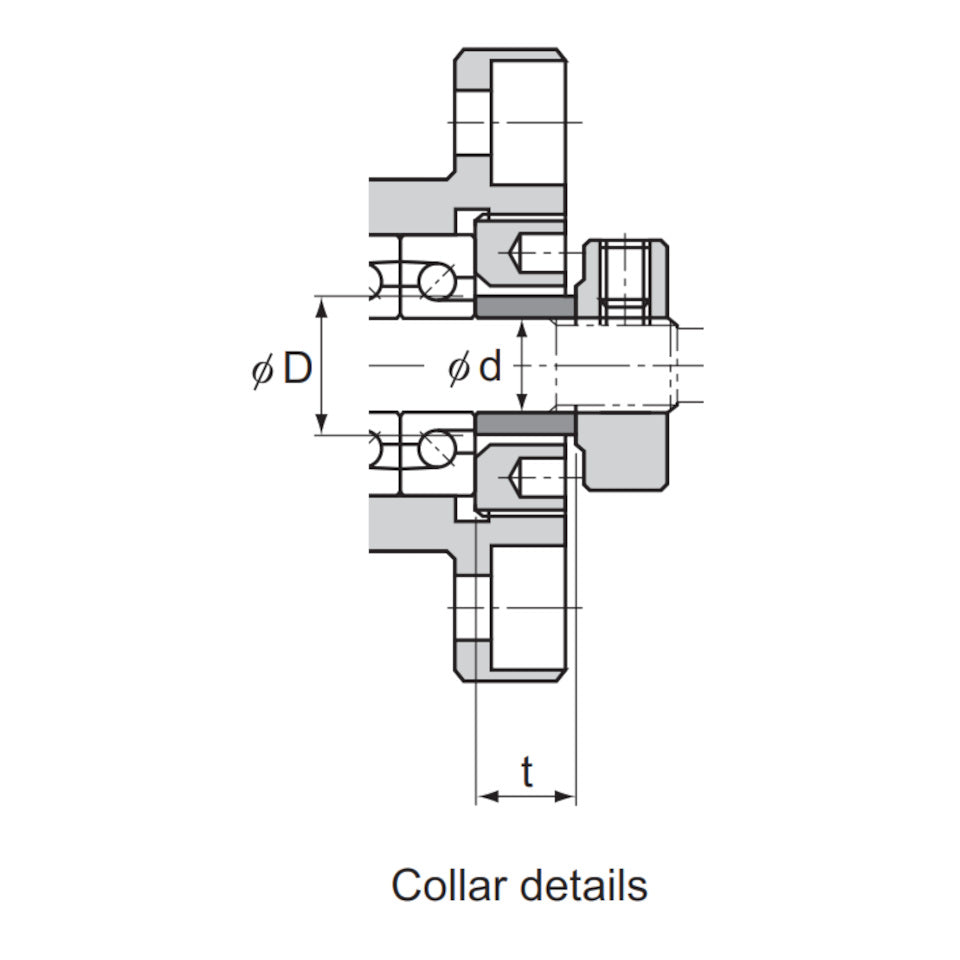

Collar dimensions
Collar outside diameter D: 8 mm
Collar thickness t: 5.5 mm
Load ratings
Basic dynamic axial load rating Ca: 1 kN
Static permissible axial load: 1.24 kN
Axial rigidity: 29 N/μm
Components supplied
Housing: 1
Precision bearing set: 1
Set nut: 1
Collars: 2
Seal: 1
Lock nut: 1
Hexagonal socket-head locking screw with set piece: 1
The FK5 is designed for the fixed end of a miniature ball screw and can be paired with a suitable supported-side THK unit.
