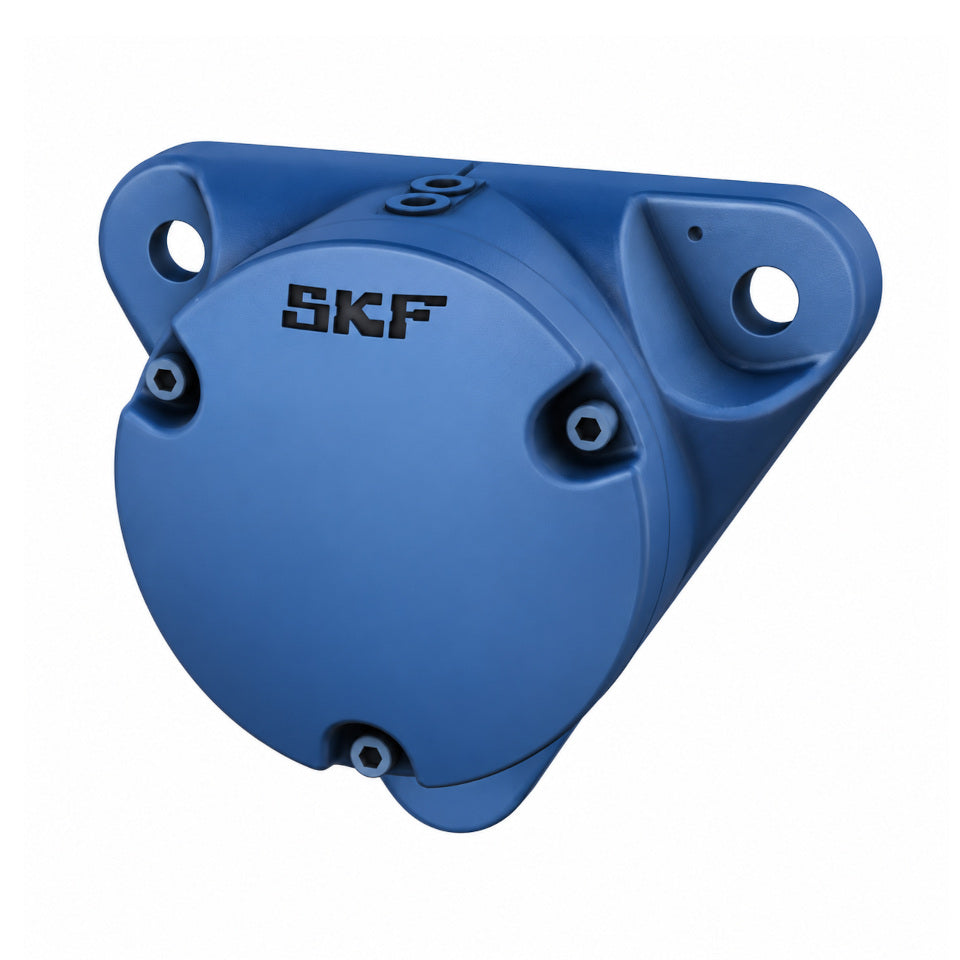

The SKF FNL509A is a one-piece cast iron flanged bearing housing designed to support compatible bearings on a 40 mm shaft. Its triangular flange has three attachment bolt holes, providing a secure mounting arrangement for industrial machinery.
The housing has a 85 mm bearing seat diameter and a 25 mm bearing seat width. The attachment bolt holes are positioned on a 160 mm pitch circle.
The A designation identifies the shaft-end version, which is supplied with a closed end cover. It also includes a double-lip seal to help retain grease and protect the bearing from contamination.
Compatible tapered-bore bearings are mounted using an appropriate adapter sleeve. The bearing, adapter sleeve and locating ring or spacing washer are selected separately to suit the bearing arrangement.
Technical specifications
Brand: SKF
Product designation: FNL 509 A
Housing type: Flanged bearing housing
Housing construction: One-piece, non-split
Housing material: Cast iron
Flange shape: Triangular
Shaft diameter with listed adapter sleeves: 40 mm

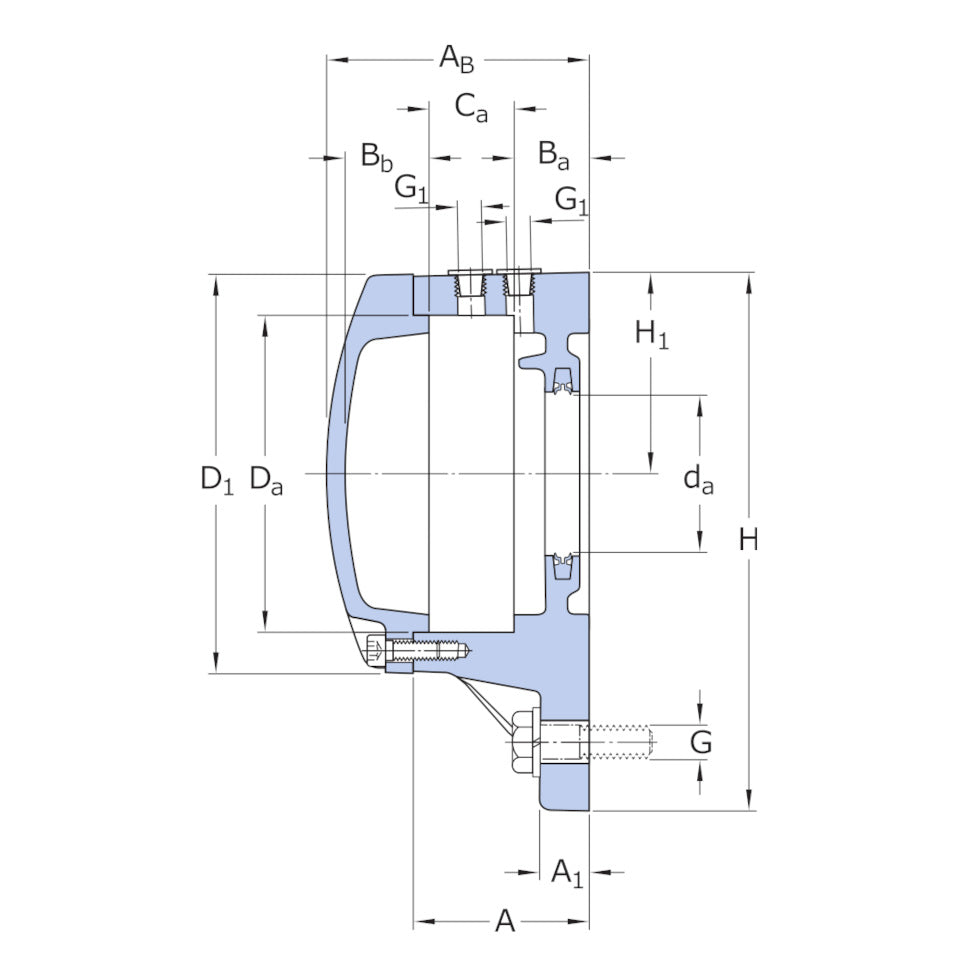

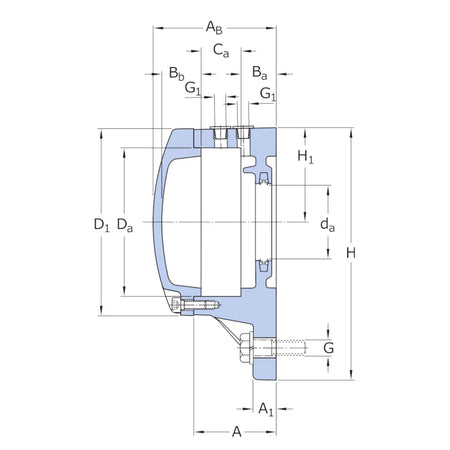

Bearing seat diameter, Da: 85 mm
Bearing seat width, Ca: 25 mm
Bearing seat centre height, H1: 60 mm

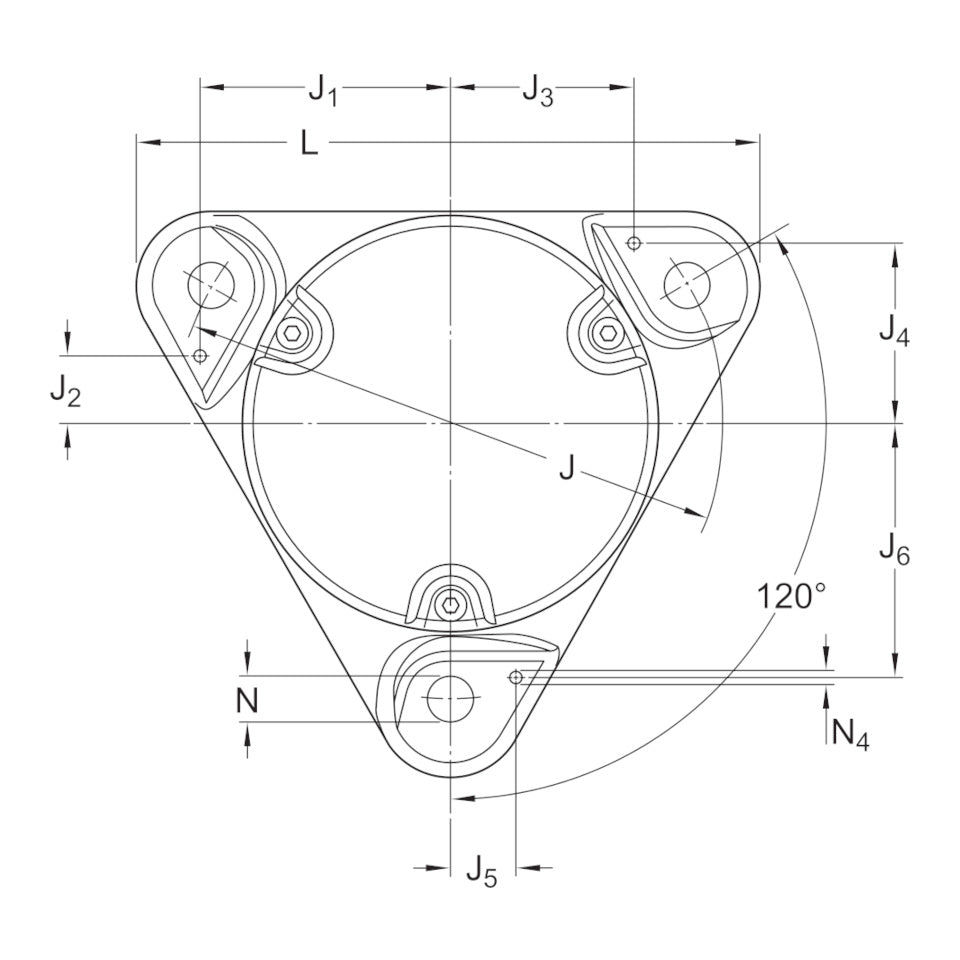

Attachment bolt pitch circle diameter, J: 160 mm
Number of attachment bolt holes: 3
Recommended attachment bolt size: M12
Mounting arrangement: Shaft end
Lubrication: Grease
Housing seal: TFL 509 double-lip seal supplied
Housing cover: Closed end cover
Approximate net weight: 3.2 kg
Compatible bearings and accessories
SKF 1209 EKTN9 self-aligning ball bearing: H 209 adapter sleeve and one FRB 6/85 locating ring
SKF 2209 EKTN9 self-aligning ball bearing: H 309 adapter sleeve and one ZW 75 × 85 spacing washer
SKF 22209 EK spherical roller bearing: H 309 adapter sleeve and one ZW 75 × 85 spacing washer
SKF C 2209 KTN9 CARB toroidal roller bearing: H 309 E adapter sleeve and one ZW 75 × 85 spacing washer
Seal designation: SKF TFL 509
The listed bearing combinations are for a 40 mm shaft. The 85 mm bearing seat dimension refers to the outside diameter of the bearing.
Available from Bearing King Ltd for industrial maintenance, bearing replacement and machinery assembly.
