FNL515A SKF Flanged Housing For Shaft End With End Cover
Couldn't load pickup availability
Product details
- Quality Premium
- Vendor SKF
- SKU FNL515A-SKF

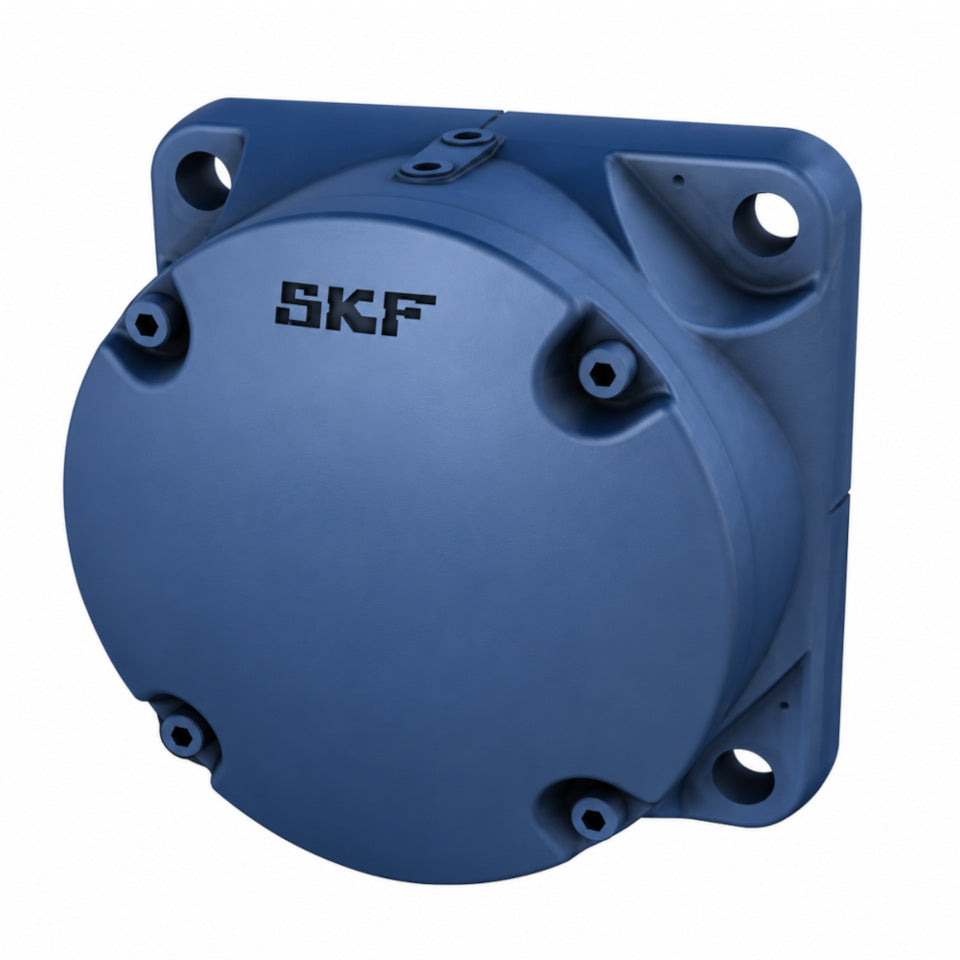

The SKF FNL515A is a one-piece cast iron flanged bearing housing designed to support compatible bearings on a 65 mm shaft. Its square flange has four attachment bolt holes, providing a secure mounting arrangement for industrial machinery. The housing has a 130 mm bearing seat... Read full description ↓ Show less ↑
The SKF FNL515A is a one-piece cast iron flanged bearing housing designed to support compatible bearings on a 65 mm shaft. Its square flange has four attachment bolt holes, providing a secure mounting arrangement for industrial machinery.
The housing has a 130 mm bearing seat diameter, a 41 mm bearing seat width and a 95 mm bearing seat centre height. The attachment bolt holes are positioned at 152 mm centres.
The A designation identifies the shaft-end version, which is supplied with a closed end cover. It also includes a double-lip seal to help retain grease and protect the bearing from contamination.
Compatible tapered-bore bearings are mounted using an appropriate adapter sleeve. The bearing, adapter sleeve and locating rings are selected separately to suit the bearing arrangement.
Technical specifications
Brand: SKF
Product designation: FNL 515 A
Housing type: Flanged bearing housing
Housing construction: One-piece, non-split
Housing material: Cast iron
Flange shape: Square
Shaft diameter with listed adapter sleeves: 65 mm

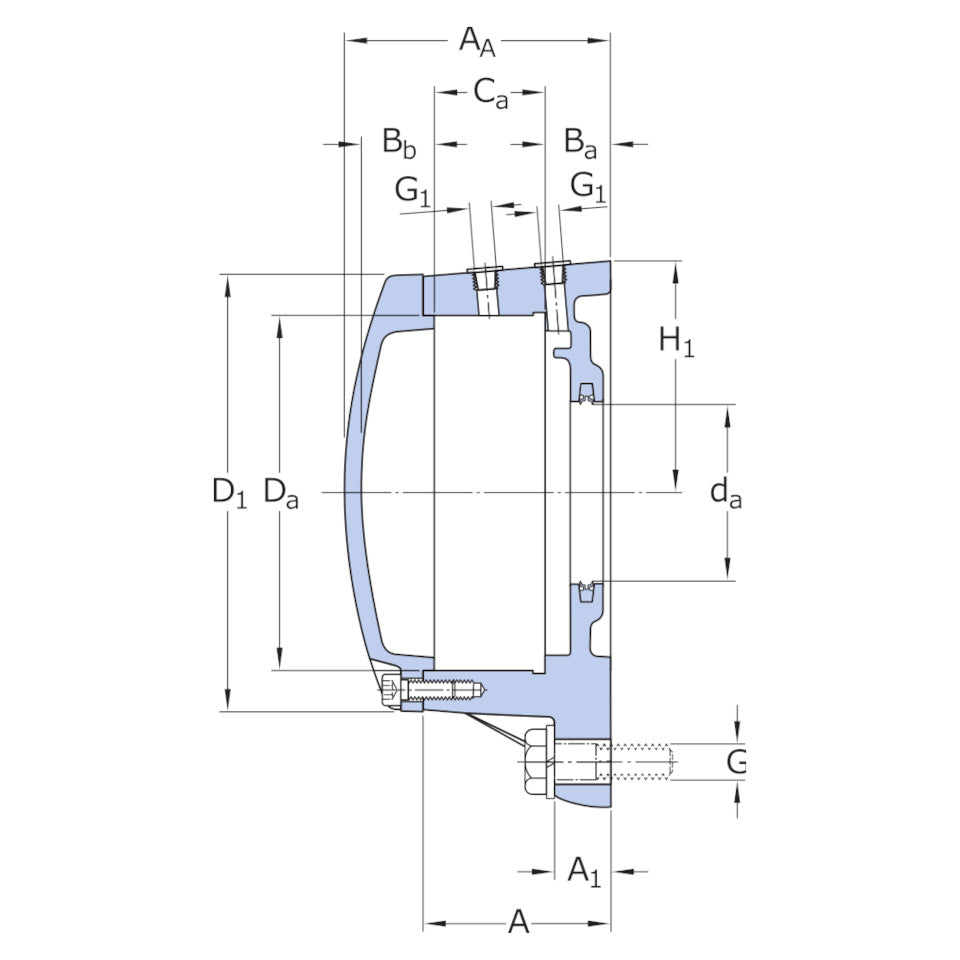

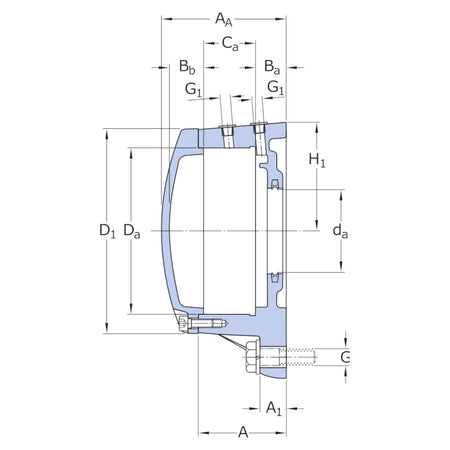

Bearing seat diameter, Da: 130 mm
Bearing seat width, Ca: 41 mm
Bearing seat centre height, H1: 95 mm

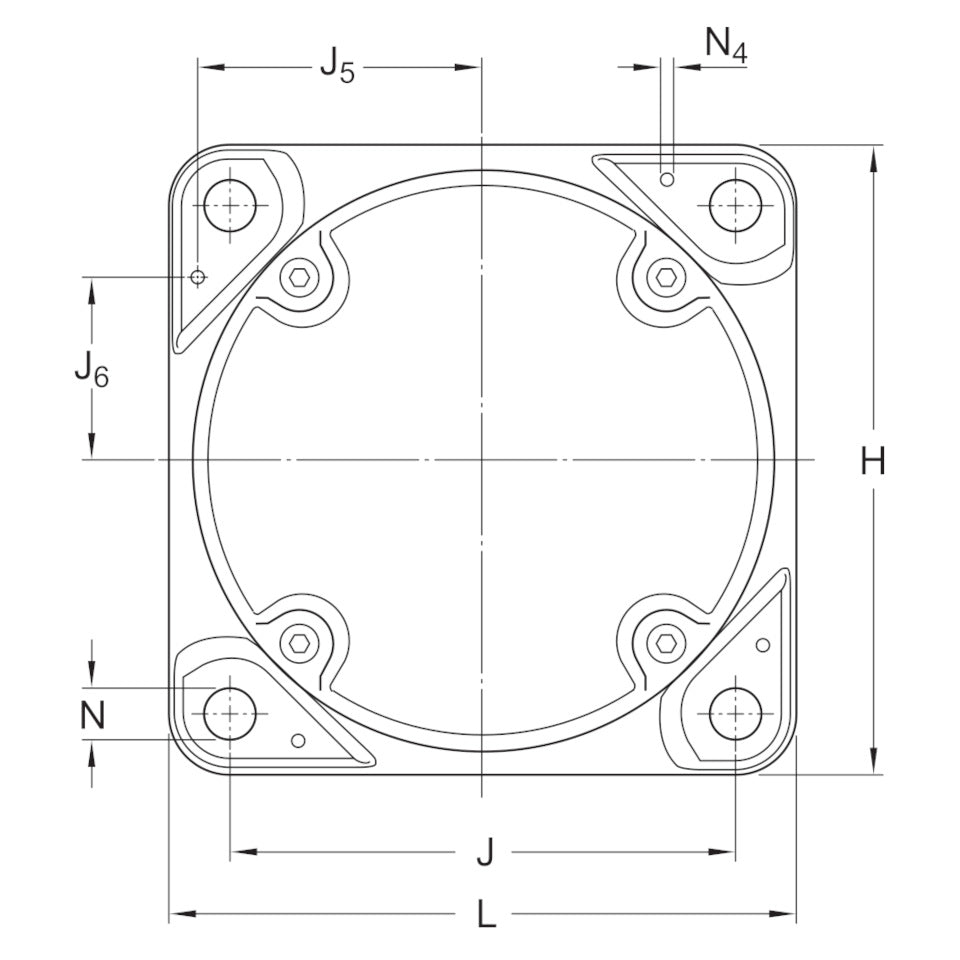

Attachment bolt centres, J: 152 mm
Number of attachment bolt holes: 4
Attachment bolt hole diameter, N: 18 mm
Recommended attachment bolt size: M16
Mounting arrangement: Shaft end
Lubrication: Grease
Housing seal: TFL 515 double-lip seal supplied
Housing cover: Closed end cover
Approximate net weight: 10.1 kg
Compatible bearings and accessories
SKF 1215 K self-aligning ball bearing: H 215 adapter sleeve and two FRB 8/130 locating rings
SKF 2215 EKTN9 self-aligning ball bearing: H 315 adapter sleeve and one FRB 10/130 locating ring
SKF 22215 EK spherical roller bearing: H 315 adapter sleeve and one FRB 10/130 locating ring
SKF C 2215 K CARB toroidal roller bearing: H 315 E adapter sleeve and one FRB 10/130 locating ring
Seal designation: SKF TFL 515
The listed bearing combinations are for a 65 mm shaft. The 130 mm bearing seat dimension refers to the outside diameter of the bearing.
Available from Bearing King Ltd for industrial maintenance, bearing replacement and machinery assembly.
