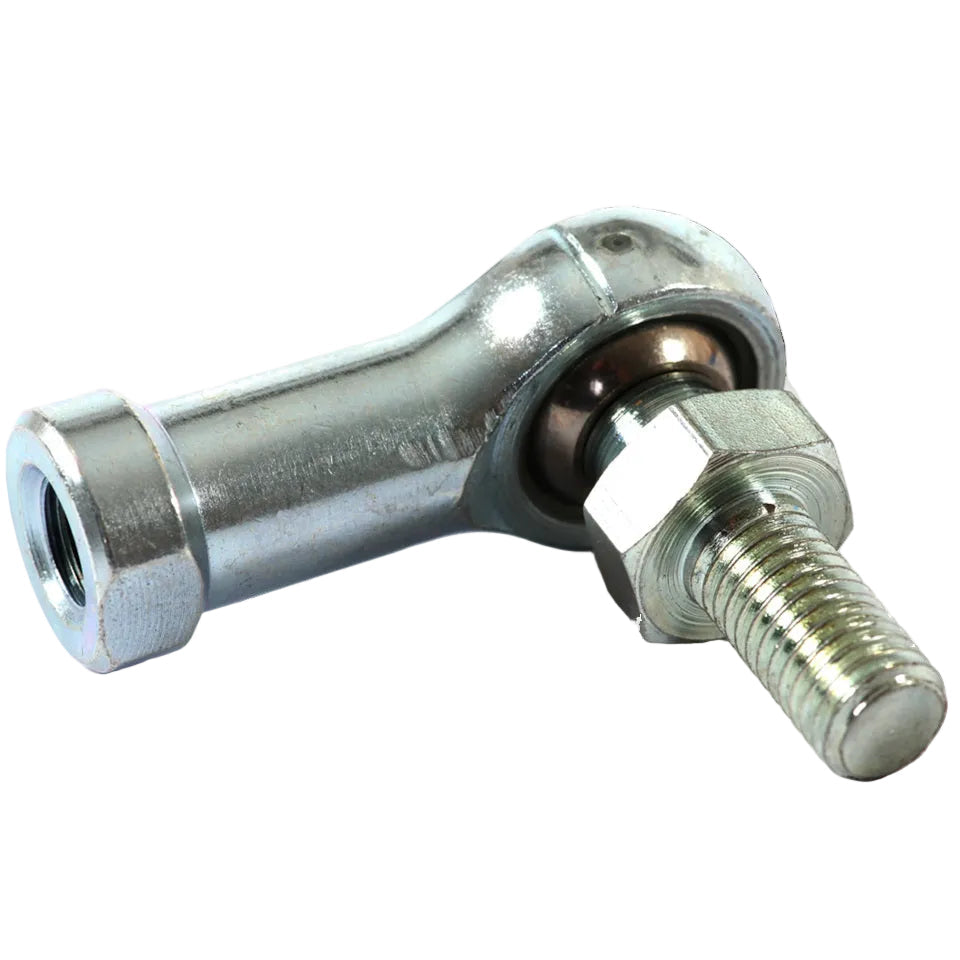

FPL-M06S Dunlop Left Hand Metric Steel-Nylon Female Rod End with Stud M6x1.00 Thread

In stock
SKU: FPL-M06S-DUNLOP
FPL-M06S Dunlop Maintenance free steel-nylon lined left hand metric female rod end with stud M6x1.00 thread, stud size M6, also known as PHS6L+STUD
£12.30 inc.VAT
£10.25 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor Dunlop
  • SKU FPL-M06S-DUNLOP
  • Inside diameter (d) 6mm
Description Delivery Returns
FP-Series is our 3-piece standard range of self-lubricating general purpose studded female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Also known as PHS6L+STUD

Material Specifications:
Housing: Steel 230M07PB and forged 080M46, zinc plated and clear trivalent passivate and stainless steel 303L 304. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, hardened and electroless nickel plated and stainless steel 440C and *SAE660. Stud: Steel 230M07PB zinc plated and clear trivalent passivate and stainless steel 303L.

Temperature Range
-30 to +170 degrees

Possible Applications
Light to medium/heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Recreational vehicles

Specification
ELV and RoHS compliant

Product Dimensions
Stud Size: 6mm
Thread: M6x1.00
A: 12mm
B: 12mm
C: 10mm
K: 10mm

Static load ratings (Newtons) radial: 1930

Housing
Steel 230M07Pb (Sizes M03 - M12),
Forged 080M46 (Sizes M14 - M25),
Zinc Plated and Clear Trivalent Passivate

Race
GR-Nylon, LV-3H

Ball
Bearing Steel 100Cr6, Hardened Electro-less Nickel Plated

Stud
Steel 230M07PB, zinc plated white and blue passivate (silver/clear)
