FSNL528 SKF Split Plummer Block Housing
Couldn't load pickup availability
Product details
- Quality Premium
- Vendor SKF
- SKU FSNL528-SKF
SKF FSNL 528 Split Plummer Block Housing – Four-Bolt Base The SKF FSNL 528 is a split plummer block housing designed to support compatible bearings in industrial machinery. Manufactured from cast iron, it provides a rigid mounting arrangement, while its split construction simplifies bearing installation,... Read full description ↓ Show less ↑

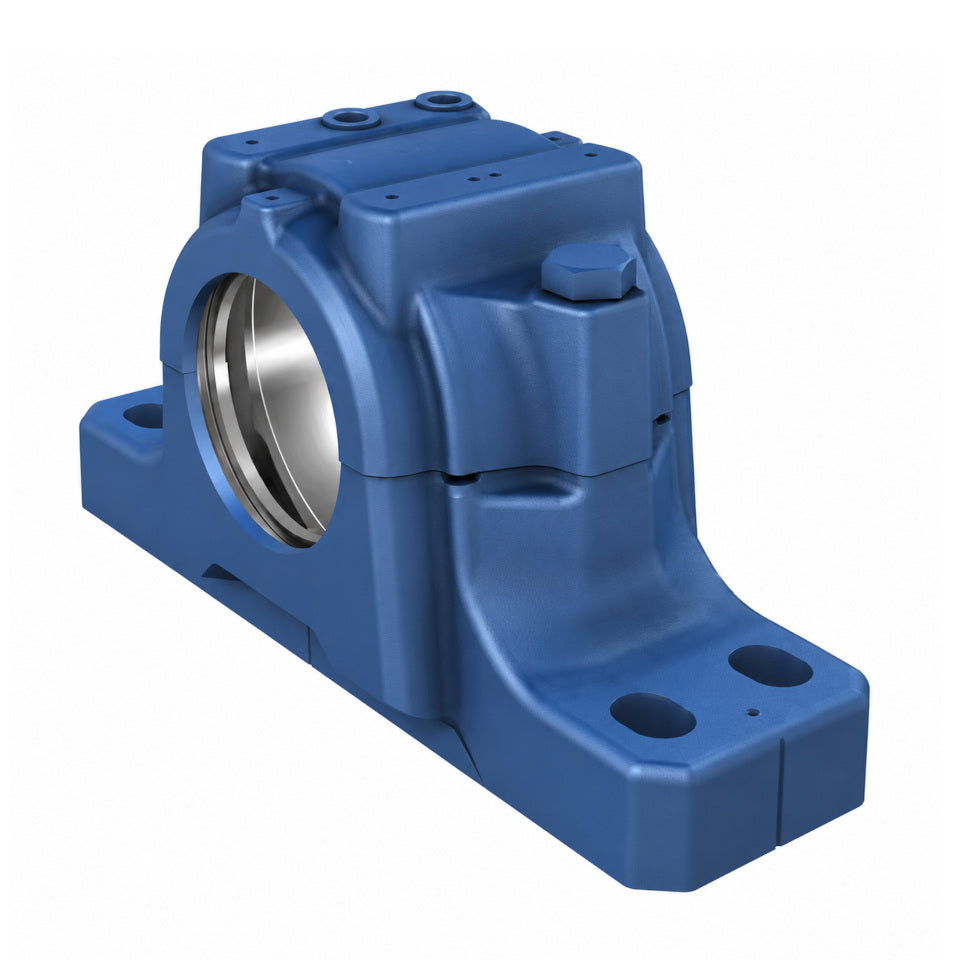

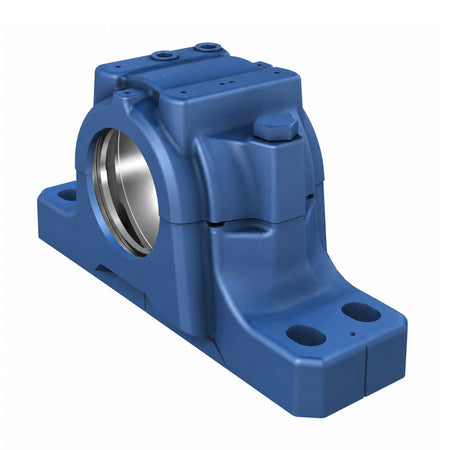

SKF FSNL 528 Split Plummer Block Housing – Four-Bolt Base
The SKF FSNL 528 is a split plummer block housing designed to support compatible bearings in industrial machinery. Manufactured from cast iron, it provides a rigid mounting arrangement, while its split construction simplifies bearing installation, inspection and maintenance.
Part of SKF’s SNL housing range, the FSNL design features four attachment bolt holes for secure mounting. Its reinforced base helps resist deformation and maintain bearing alignment in service.
The housing accommodates a bearing outside diameter of 250mm and can be used with different bearing and sealing arrangements to suit the application. Supplied without seals, it allows the appropriate sealing solution to be selected separately.
Technical specifications

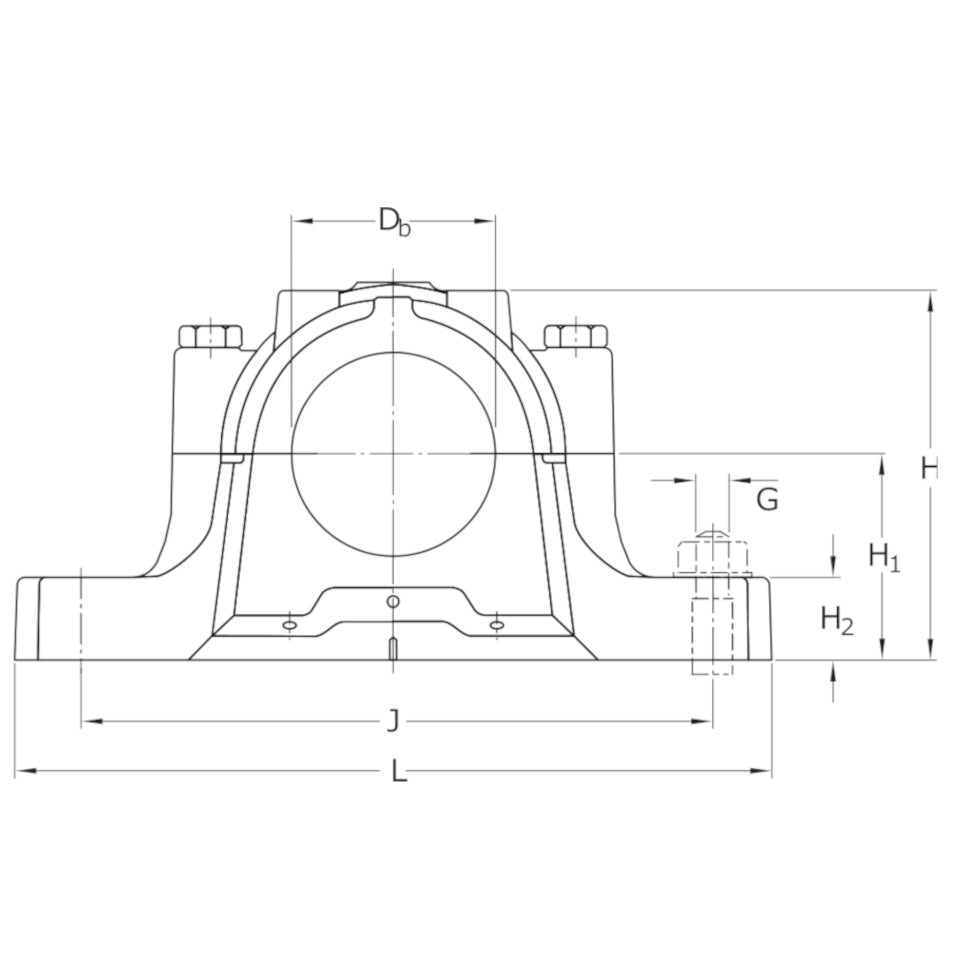

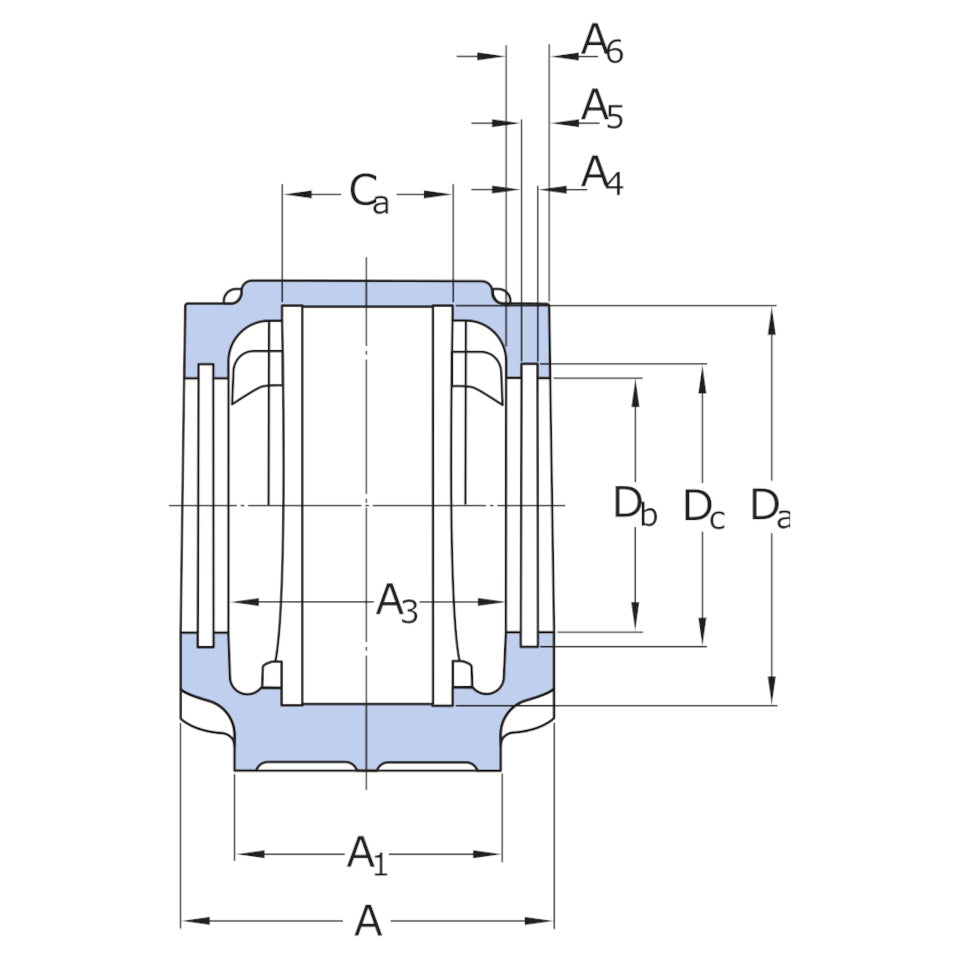

Bearing seating diameter: 250 mm
Bearing seating width: 98 mm
Overall length: 500 mm
Centre height: 150 mm

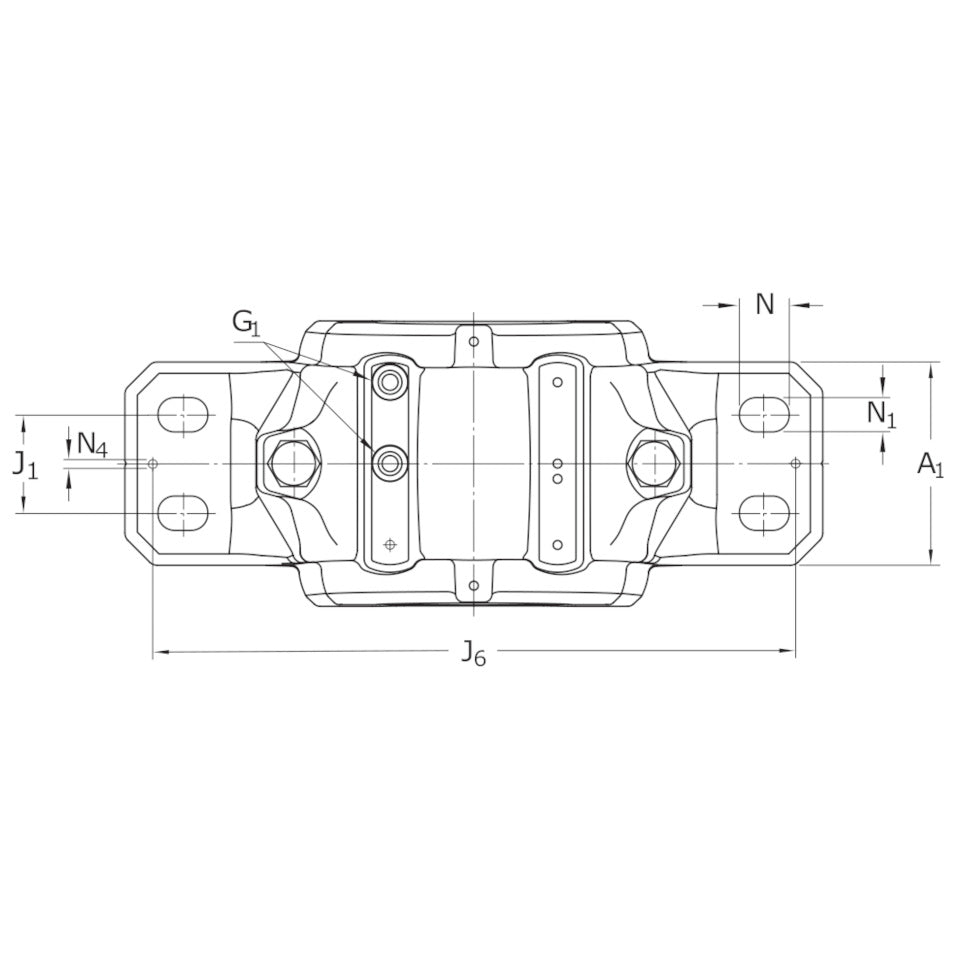

Distance between attachment bolts, lengthwise: 420 mm
Distance between attachment bolts, axial direction: 80 mm
Number of attachment bolt holes: 4
Attachment bolt size: M24
Attachment bolt slot dimensions: 32 × 26 mm
Housing material: Cast iron
Housing design: Split plummer block
Seals: Supplied without seals
Approximate net weight: 42.4 kg
Brand: SKF
Product designation: FSNL 528
Available from Bearing King Ltd for industrial maintenance, bearing housing replacement and machinery builds.
