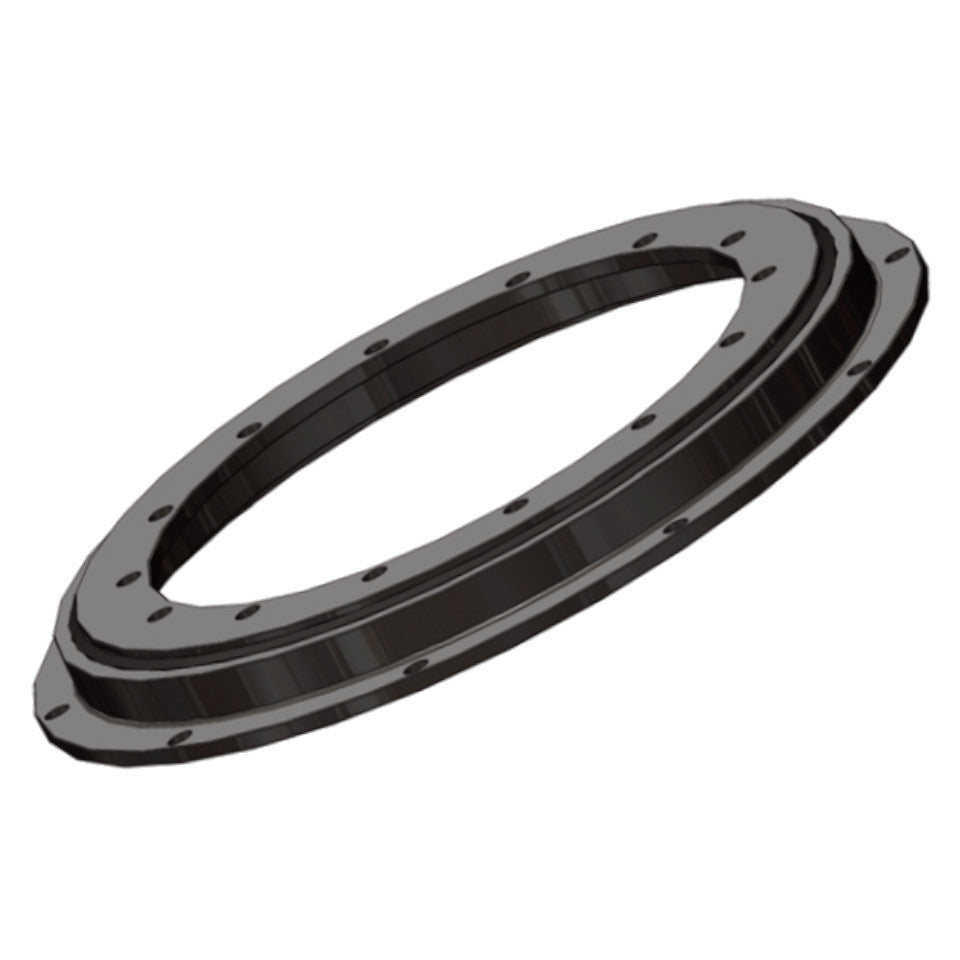

The F20i Imperial Series comprises a set of slewing rings of constant height approx 2.205 in (56 mm) with a flanged cross section on one or both rings, and with external diameters ranging from 19.9 in to 46.87 in.
Construction
Standard bearings incorporate plastic spacers, but ball spacers, steel or brass spacers, or even full complement or caged designs can be supplied for specific applications.
From 2015 all geared slewing rings will be manufactured in42CrMo4 steel for improved gear strength
Seals
A land riding nitrile rubber seal strip is standard. VITON seals can be supplied to order.
Gearing
Standard metric spur gears with 20 degree pressure angle and no addendum correction. Suitable pinions (as well as gearboxes and motors) can be specified and supplied. American standard gearing can be supplied if required.
Lubrication
Bearings are assembled with a Lithium EP2 grease. Special greases can be supplied to order.
Applications
While a flange reduces the weight of the bearing, it also reduces it's torsional stiffness and these bearings are thus best suited to light or medium loaded applications where the load has no great eccentricity.
Industrial positioners (e.g. welding and assembly jigs)
Ship or truck loading
chute swivels
Stretch wrapping machines
Conveyors and associated materials handling equipment
Simple amusement rides
Outline dimensions and weight
Da: 41.26in
B: 38.74in
U: 37.09in
C: 37.01in
D: 35.36in
Di: 32.84in
Outer holes
La: 40.13in
na: 18
Inner holes
Li: 34.00in
ni: 20
Weight 132lbs
Interchange
Kaydon - RK6-37P1Z
Rotek - L6-37P9Z
Silverthin - SK6 37 PZ
Avon - 737 MC1
