GE05E Dunlop Spherical Plain Bearing Steel/Steel 5x14x6mm
Dunlop Spherical plain bearing steel on steel 5mm inside x 14mm outside x 6mm wide
Regular price
£1.93
inc.VAT
£1.61 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability

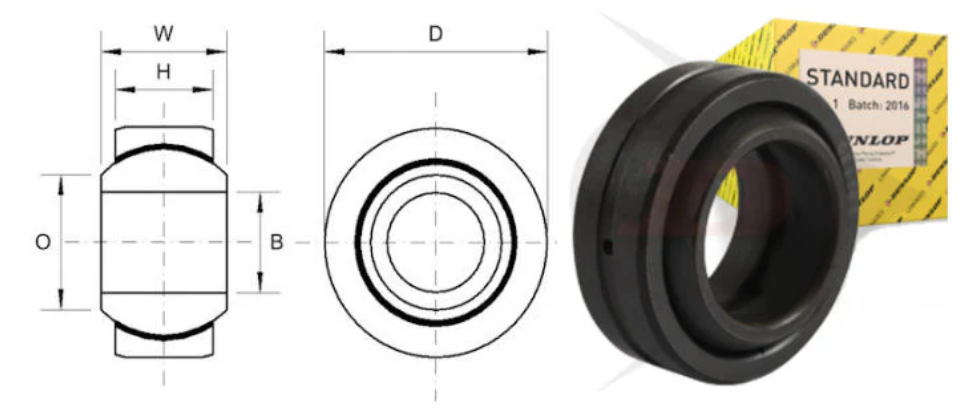

GE series spherical plain bearings are radial spherical plain bearings designed to accommodate heavy radial loads, shock loads, and limited angular motion in oscillating or articulating applications. These bearings consist of an inner ring with a sphered (convex) outside diameter and an outer ring with a correspondingly concave spherical bore, allowing rotation and angular misalignment between the shaft and housing. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.
Type: Radial spherical plain bearing (Series GE...E or GE...ES depending on sealing and lubrication type)
Structure:
Inner Ring: Hardened steel, sphered outer surface
Outer Ring: Hardened steel or phosphated steel, sphered inner surface
Motion Accommodation: Ideal for applications with oscillating or tilting movements under heavy loads
Misalignment Capability: Can compensate for shaft misalignment or deflections
Lubrication:
GE...E type: Steel-on-steel, requires periodic lubrication
GE...ES type: Lubrication holes/grooves for grease, maintenance required
GE...C/GE...ET-2RS types: Maintenance-free, with PTFE or other low-friction liners and/or seals
Common variants:
GE...E – Open, steel-on-steel, lubricated
GE...ES – With lubrication grooves
GE...C / GE...ET-2RS – Maintenance-free, sealed with PTFE liner
Typical Applications:
Hydraulic cylinders
Heavy machinery joints
Off-road vehicles and suspension systems
Lifting and handling equipment
Construction and agricultural equipment
Railway and aerospace components
Type: Radial spherical plain bearing (Series GE...E or GE...ES depending on sealing and lubrication type)
Structure:
Inner Ring: Hardened steel, sphered outer surface
Outer Ring: Hardened steel or phosphated steel, sphered inner surface
Motion Accommodation: Ideal for applications with oscillating or tilting movements under heavy loads
Misalignment Capability: Can compensate for shaft misalignment or deflections
Lubrication:
GE...E type: Steel-on-steel, requires periodic lubrication
GE...ES type: Lubrication holes/grooves for grease, maintenance required
GE...C/GE...ET-2RS types: Maintenance-free, with PTFE or other low-friction liners and/or seals
Common variants:
GE...E – Open, steel-on-steel, lubricated
GE...ES – With lubrication grooves
GE...C / GE...ET-2RS – Maintenance-free, sealed with PTFE liner
Typical Applications:
Hydraulic cylinders
Heavy machinery joints
Off-road vehicles and suspension systems
Lifting and handling equipment
Construction and agricultural equipment
Railway and aerospace components
