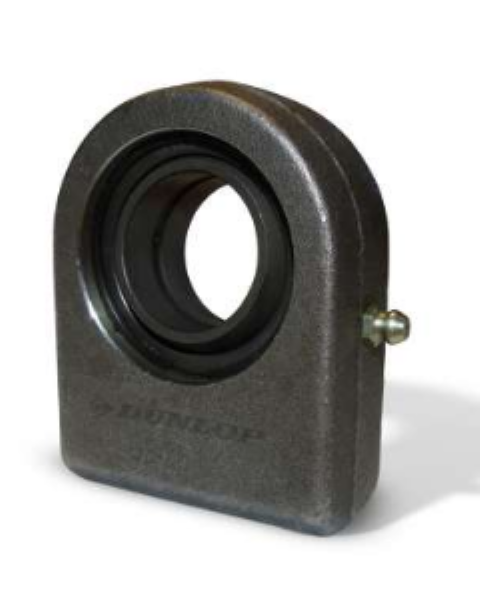

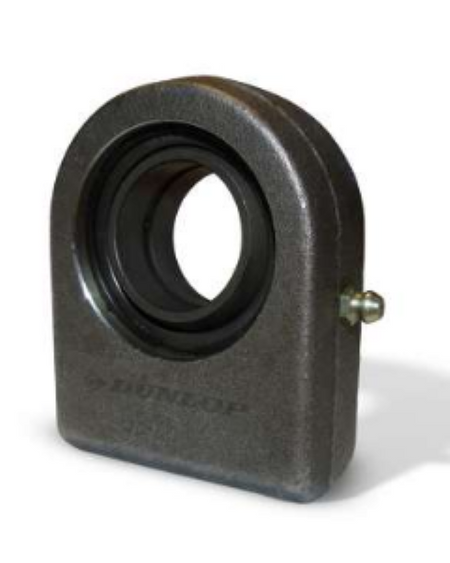

GF100DO Dunlop Spherical Plain Bearing with Rod End Housing 100mm Bore
Dunlop Spherical plain steel 100mm Bore with Rod End Housing.
Regular price
£377.68
inc.VAT
£314.73 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GF DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing used in non-rotational applications. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 100
C1: 70
B: 70
d2: 250
L2: 295
h2: 170
dk: 130
d1: 109.5
D: 150
L8: 4.0
Load Ratings
Dynamic: 610.0 kN
Static: 1500.0 kN
