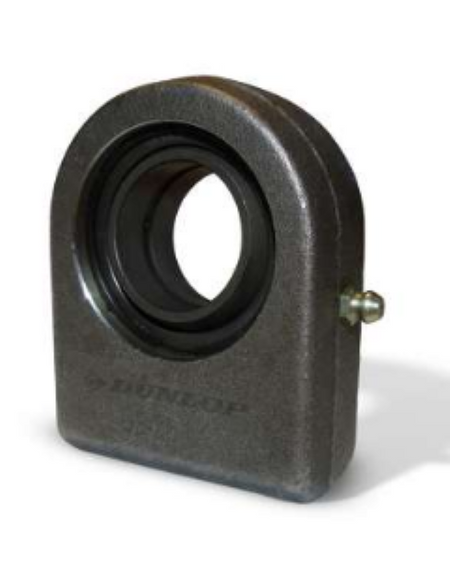

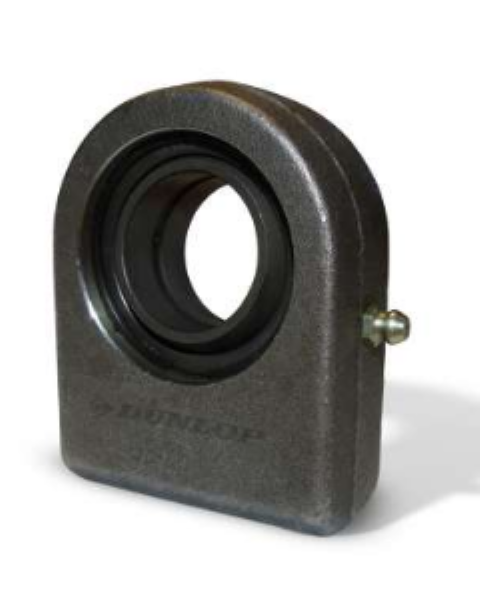

GF30DO Dunlop Spherical Plain Bearing with Rod End Housing 30mm Bore
Dunlop Spherical plain steel 30mm Bore with Rod End Housing.
Regular price
£16.72
inc.VAT
£13.93 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GF DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing used in non-rotational applications. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 30
C1: 28
B: 22
d2: 65
L2: 83.5
h2: 51
dk: 40.7
d1: 34.2
D: 47
L8: 2.0
Load Ratings
Dynamic: 62.0 kN
Static: 118 kN
