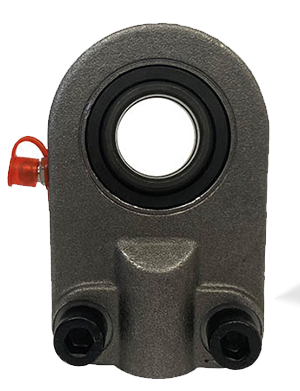

GIHR25DO Dunlop Spherical Plain Bearing with Rod End Housing 25mm Bore
Dunlop Spherical plain steel 25mm Bore with Rod End Housing.
Regular price
£14.82
inc.VAT
£12.35 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GF DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing used in non-rotational applications. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 25
d3: M16x1.5
d4: 25
L3: 17
B: 20
C1: 23
d2: 56
L7: 28
h1: 50
L4: 80
d5: 46
d1: 29.3
dk: 35.5
Load Ratings
Dynamic: 48.0 kN
Static: 72.0 kN
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 25
d3: M16x1.5
d4: 25
L3: 17
B: 20
C1: 23
d2: 56
L7: 28
h1: 50
L4: 80
d5: 46
d1: 29.3
dk: 35.5
Load Ratings
Dynamic: 48.0 kN
Static: 72.0 kN
