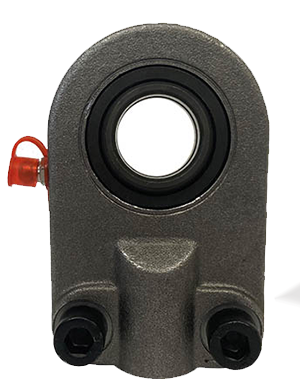

GIHR35DO Dunlop Spherical Plain Bearing with Rod End Housing 35mm Bore
Dunlop Spherical plain steel 35mm Bore with Rod End Housing.
Regular price
£24.01
inc.VAT
£20.01 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GF DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing used in non-rotational applications. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 35
d3: M28x1.5
d4: 40
L3: 29
B: 25
C1: 30
d2: 78
L7: 38
h1: 70
L4: 112
d5: 66
d1: 39.8
dk: 47
Load Ratings
Dynamic: 80.0 kN
Static: 153.0 kN
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 35
d3: M28x1.5
d4: 40
L3: 29
B: 25
C1: 30
d2: 78
L7: 38
h1: 70
L4: 112
d5: 66
d1: 39.8
dk: 47
Load Ratings
Dynamic: 80.0 kN
Static: 153.0 kN
