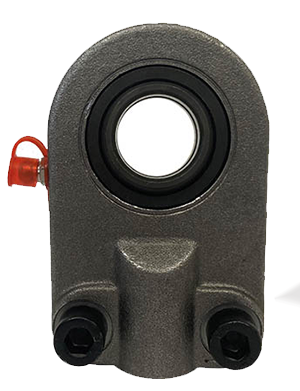

GIHR50DO Dunlop Spherical Plain Bearing with Rod End Housing 50mm Bore
Dunlop Spherical plain steel 50mm Bore with Rod End Housing.
Regular price
£58.63
inc.VAT
£48.86 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GF DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing used in non-rotational applications. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C

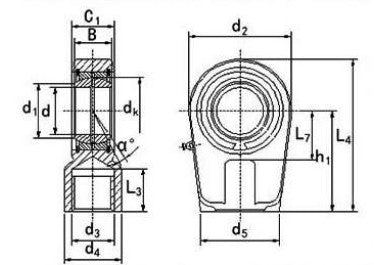

Specification:
ELV and RoHS compliant
d: 50
d3: M45x1.5
d4: 61
L3: 46
B: 35
C1: 40
d2: 116
L7: 55
h1: 105
L4: 168
d5: 90
d1: 55.9
dk: 66
Load Ratings
Dynamic: 156.0 kN
Static: 356.0 kN
