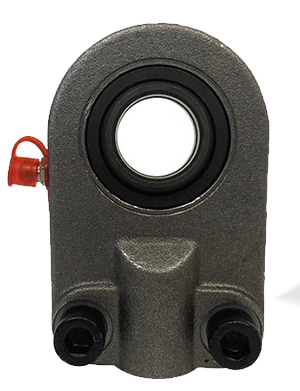

GIHR70DO Dunlop Spherical Plain Bearing with Rod End Housing 70mm Bore

Dunlop Spherical Plain Bearing with Rod End Housing Diagram

GIHR70DO Dunlop Spherical Plain Bearing with Rod End Housing 70mm Bore

Name: GIHR70DO Dunlop Spherical Plain Bearing with Rod End Housing 70mm Bore
Brand: Dunlop
SKU: GIHR70DO-DUNLOP
Price: 133.68 GBP
Availability: InStock

In stock

SKU: GIHR70DO-DUNLOP

No reviews

Dunlop Spherical plain steel 70mm Bore with Rod End Housing.

£160.42 inc.VAT

£133.68 exc.VAT

All prices exclude VAT unless otherwise stated

Product variants

FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

Vendor Dunlop
SKU GIHR70DO-DUNLOP
Inside diameter (d) 70mm

The GF DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing used in non-rotational applications. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.

Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.

Features:
Metric bore sizes
Low cost
Maintenance required

Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications

Temperature Range:
-54C to +121C

Specification:
ELV and RoHS compliant
d: 70
d3: M65x1.5
d4: 86
L3: 66
B: 49
C1: 55
d2: 154
L7: 75
h1: 150
L4: 237
d5: 130
d1: 77.9
dk: 92
Load Ratings
Dynamic: 315.0 kN
Static: 540.0 kN
