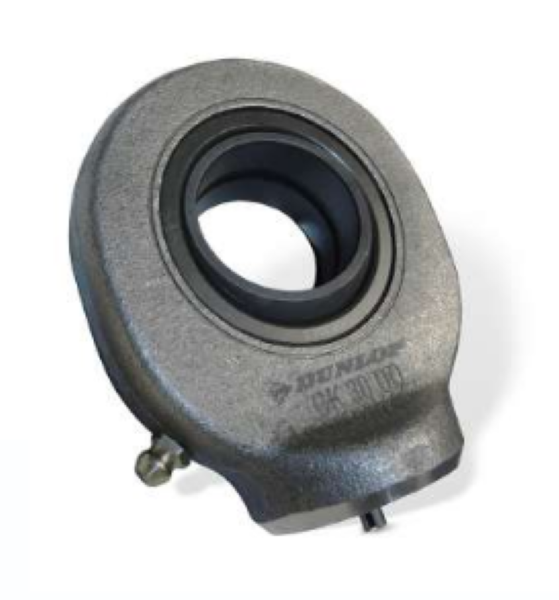

GK15DO Dunlop Spherical Plain Bearing with Rod End Housing 15mm Bore
Dunlop Spherical plain steel 15mm Bore with Rod End Housing.
Regular price
£7.55
inc.VAT
£6.29 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GK DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing with dowel pin. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C

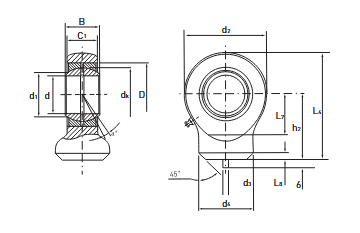

Specification:
ELV and RoHS compliant
d: 15
d1: 18.4
B: 12
C1: 10
dk: 22
d2: 40
L4: 51
h2: 31
L7: 20
L8: 2.0
d3: 4
d4: 21
D: 26
Load Ratings
Dynamic: 17.0 kN
Static: 32.0 kN
