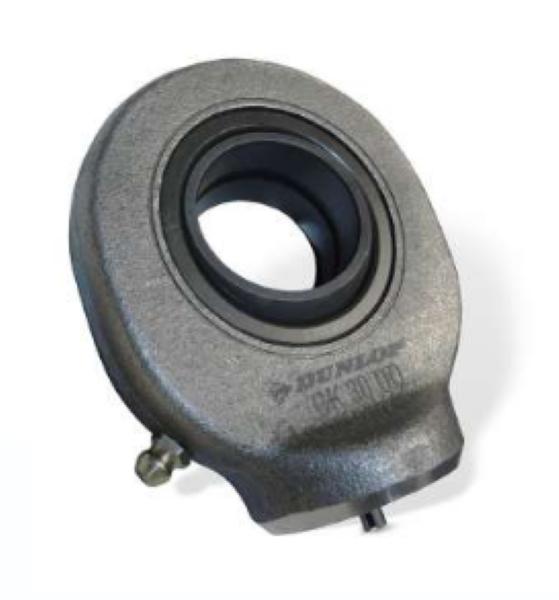

GK25DO Dunlop Spherical Plain Bearing with Rod End Housing 25mm Bore
Dunlop Spherical plain steel 25mm Bore with Rod End Housing.
Regular price
£11.96
inc.VAT
£9.97 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GK DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing with dowel pin. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 25
d1: 29.3
B: 20
C1: 17
dk: 35.5
d2: 64
L4: 77
h2: 45
L7: 33
L8: 3.0
d3: 4
d4: 33.5
D: 42
Load Ratings
Dynamic: 48.0 kN
Static: 72.0 kN
