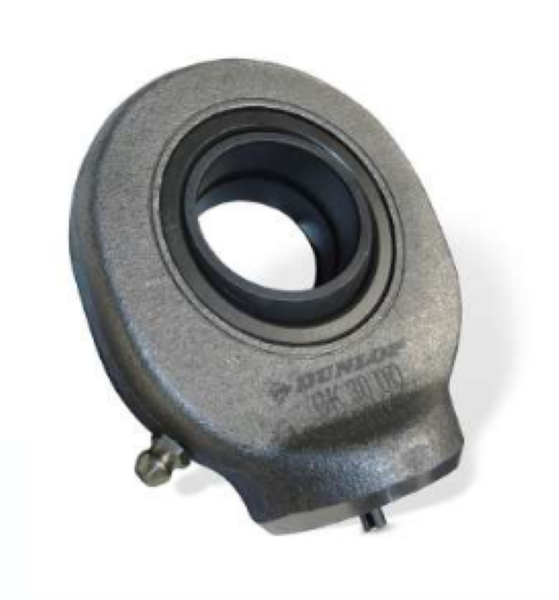

GK30DO Dunlop Spherical Plain Bearing with Rod End Housing 30mm Bore
Dunlop Spherical plain steel 30mm Bore with Rod End Housing.
Regular price
£15.13
inc.VAT
£12.61 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GK DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing with dowel pin. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 30
d1: 34.2
B: 22
C1: 19
dk: 40.7
d2: 73
L4: 87.5
h2: 51
L7: 37.5
L8: 3.0
d3: 4
d4: 40
D: 47
Load Ratings
Dynamic: 62.0 kN
Static: 95.0 kN
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 30
d1: 34.2
B: 22
C1: 19
dk: 40.7
d2: 73
L4: 87.5
h2: 51
L7: 37.5
L8: 3.0
d3: 4
d4: 40
D: 47
Load Ratings
Dynamic: 62.0 kN
Static: 95.0 kN
