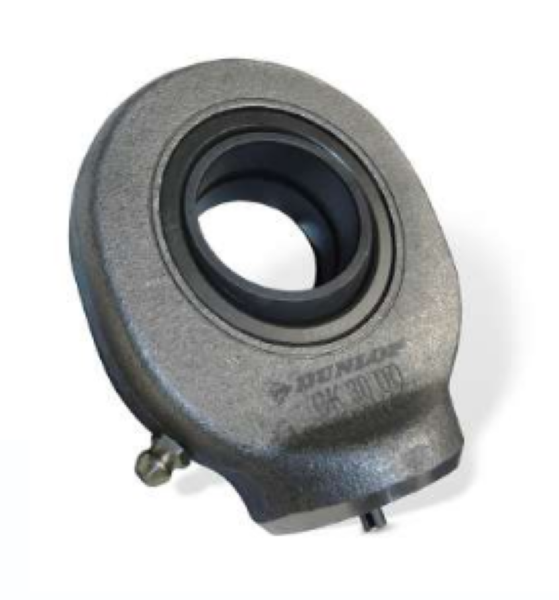

GK35DO Dunlop Spherical Plain Bearing with Rod End Housing 35mm Bore
Dunlop Spherical plain steel 35mm Bore with Rod End Housing.
Regular price
£21.52
inc.VAT
£17.93 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GK DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing with dowel pin. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 35
d1: 39.8
B: 25
C1: 21
dk: 47
d2: 82
L4: 102
h2: 61
L7: 43
L8: 3.0
d3: 4
d4: 47
D: 55
Load Ratings
Dynamic: 80.0 kN
Static: 125.0 kN
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 35
d1: 39.8
B: 25
C1: 21
dk: 47
d2: 82
L4: 102
h2: 61
L7: 43
L8: 3.0
d3: 4
d4: 47
D: 55
Load Ratings
Dynamic: 80.0 kN
Static: 125.0 kN
