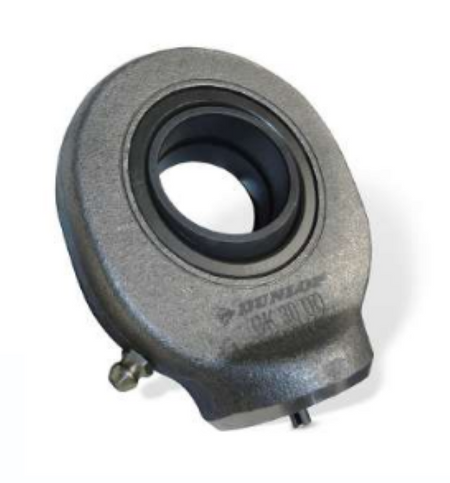

GK50DO Dunlop Spherical Plain Bearing with Rod End Housing 50mm Bore
Dunlop Spherical plain steel 50mm Bore with Rod End Housing.
Regular price
£42.79
inc.VAT
£35.66 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GK DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing with dowel pin. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 50
d1: 55.9
B: 35
C1: 30
dk: 66
d2: 112
L4: 144
h2: 88
L7: 59
L8: 4.0
d3: 6
d4: 62
D: 75
Load Ratings
Dynamic: 156.0 kN
Static: 250.0 kN
