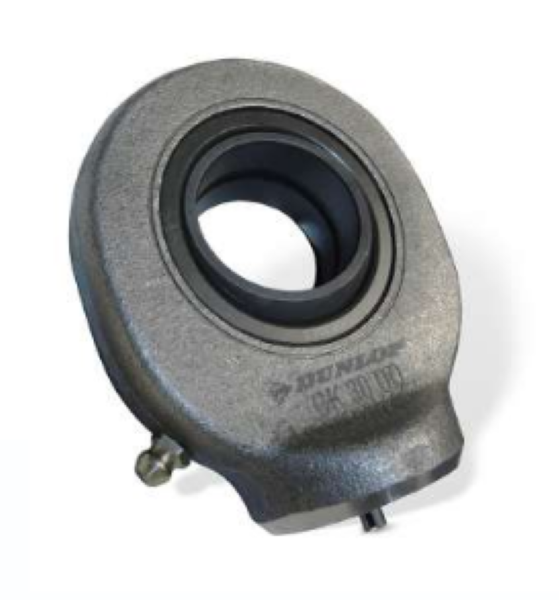

GK70DO Dunlop Spherical Plain Bearing with Rod End Housing 70mm Bore
Dunlop Spherical plain steel 70mm Bore with Rod End Housing.
Regular price
£111.07
inc.VAT
£92.56 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
The GK DO Series is a 3 piece metric range of spherical plain bearings comprising weldable rod end housing with dowel pin. Ball and race slinding surfaces are phosphate treated for increased lubrication. There is a lubrication groove provided on the raceway along with a grease nipple on the rod end housing for applications that require re-lubrication after installation.
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 70
d1: 77.9
B: 49
C1: 42
dk: 92
d2: 160
L4: 195
h2: 115
L7: 86
L8: 5.0
d3: 6
d4: 80
D: 105
Load Ratings
Dynamic: 315.0 kN
Static: 510.0 kN
Material Specifications:
Rod End Housing: Weldable Steel, phosphate with a dowel pin at the base of the housing.
Bearing: Bearing Steel 100Cr6, Hardened and Manganese Phosphate.
Features:
Metric bore sizes
Low cost
Maintenance required
Possible Applications:
Light to heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Hydraulic applications
Temperature Range:
-54C to +121C
Specification:
ELV and RoHS compliant
d: 70
d1: 77.9
B: 49
C1: 42
dk: 92
d2: 160
L4: 195
h2: 115
L7: 86
L8: 5.0
d3: 6
d4: 80
D: 105
Load Ratings
Dynamic: 315.0 kN
Static: 510.0 kN
