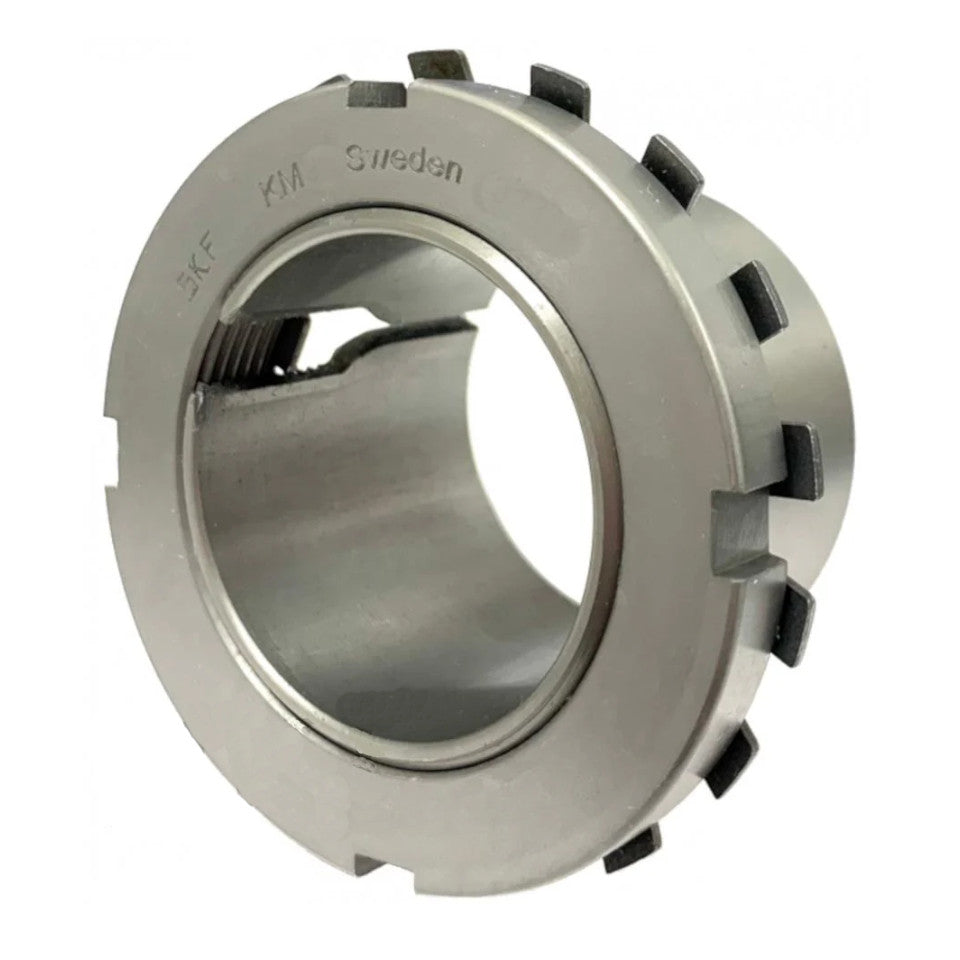

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.
Easy to install
Complete with lock nut
Complete with locking device
Dimensions
d1: 115mm Bore diameter
d: 130mm Outside diameter small taper
d3: 155mm Outside diameter lock nut
B1: 80mm Width
B: 21mm Width lock nut
B4: 23mm Width lock nut including lock washer
G: M 130x2 Thread
Properties
Taper: 1:12
Holes for oil injection: without
Included products
Lock nut: KML26
Locking device: MBL26
Mass: 2.78 kg
