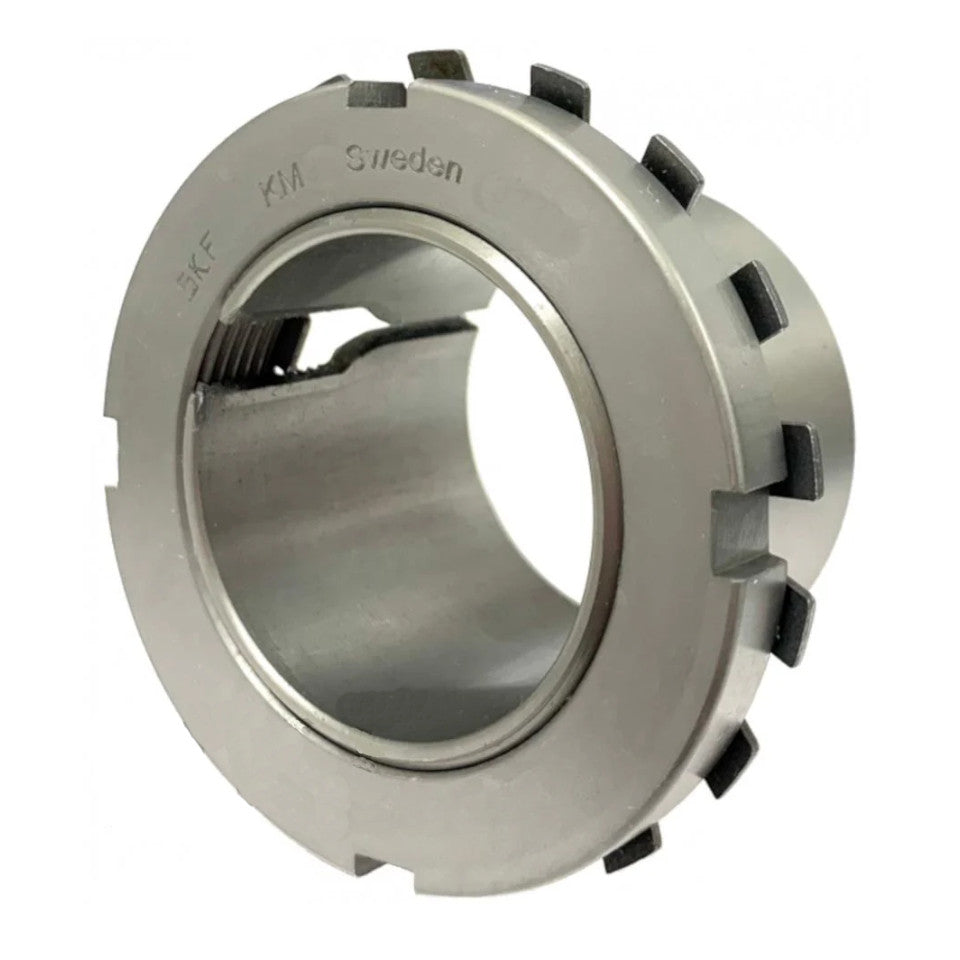

H3138 SKF Adapter Sleeve 170mm Shaft

In stock
SKU: H3138-SKF
SKF Adapter sleeve with KM lock nut and MB lock washer, metric dimensions
Regular price £438.74 inc.VAT
£365.62 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
FREE Shipping Truck
 More payment options

Pickup available at Bearing King

Usually ready in 24 hours

Product details

  • Vendor SKF
  • SKU H3138-SKF
  • Inside diameter (d) 170mm

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Dimensions
d1: 170mm Bore diameter
d: 190mm Outside diameter small taper
d3: 240mm Outside diameter lock nut
B1: 141mm Width
B: 28mm Width lock nut
B4: 30.5mm Width lock nut including lock washer
G: M 190x3 Thread

Properties
Taper: 1:12
Holes for oil injection: without

Included products
Lock nut: KM38
Locking device: MB38

Mass: 10.4 kg
