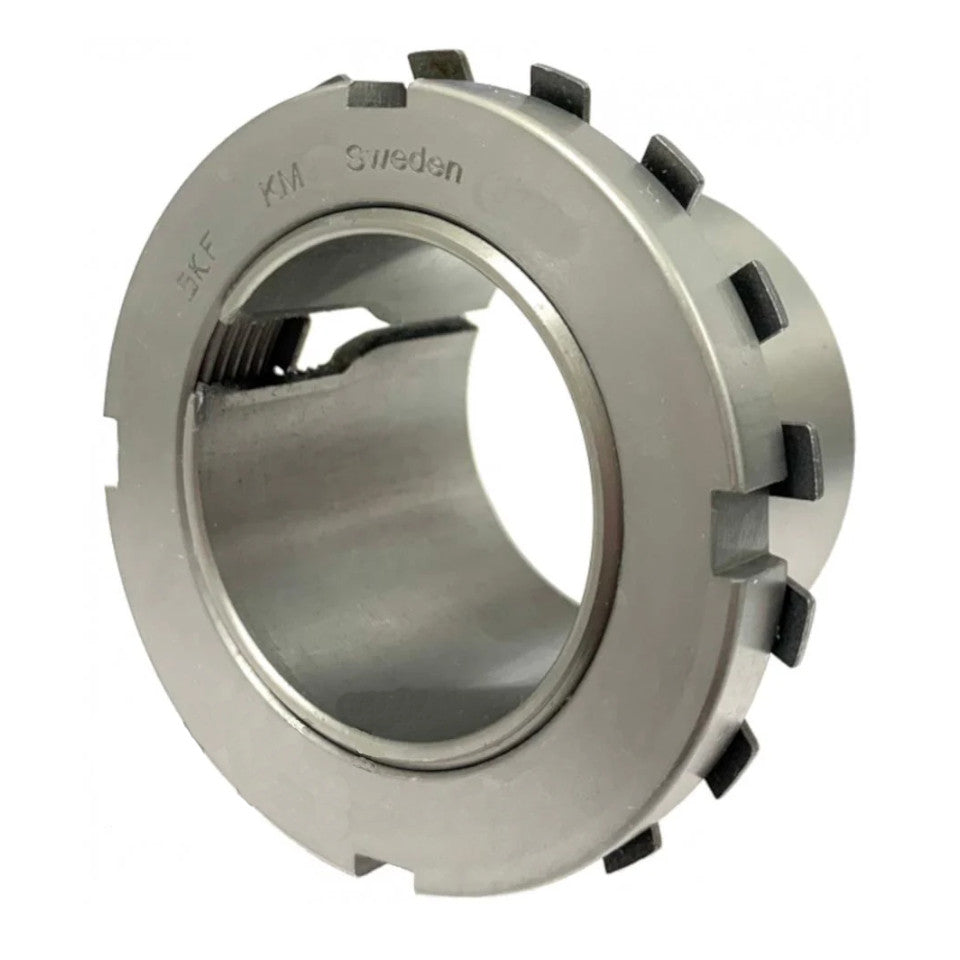

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.
Easy to install
Complete with lock nut
Complete with locking device
Dimensions
d1: 87.313mm Bore diameter
d: 100mm Outside diameter small taper
d3: 130mm Outside diameter lock nut
B1: 58mm Width
B: 18mm Width lock nut
B4: 20mm Width lock nut including lock washer
G: M 100x2 Thread
Properties
Taper: 1:12
Holes for oil injection: without
Included products
Lock nut: KM20
Locking device: MB20
Mass: 1.56 kg
