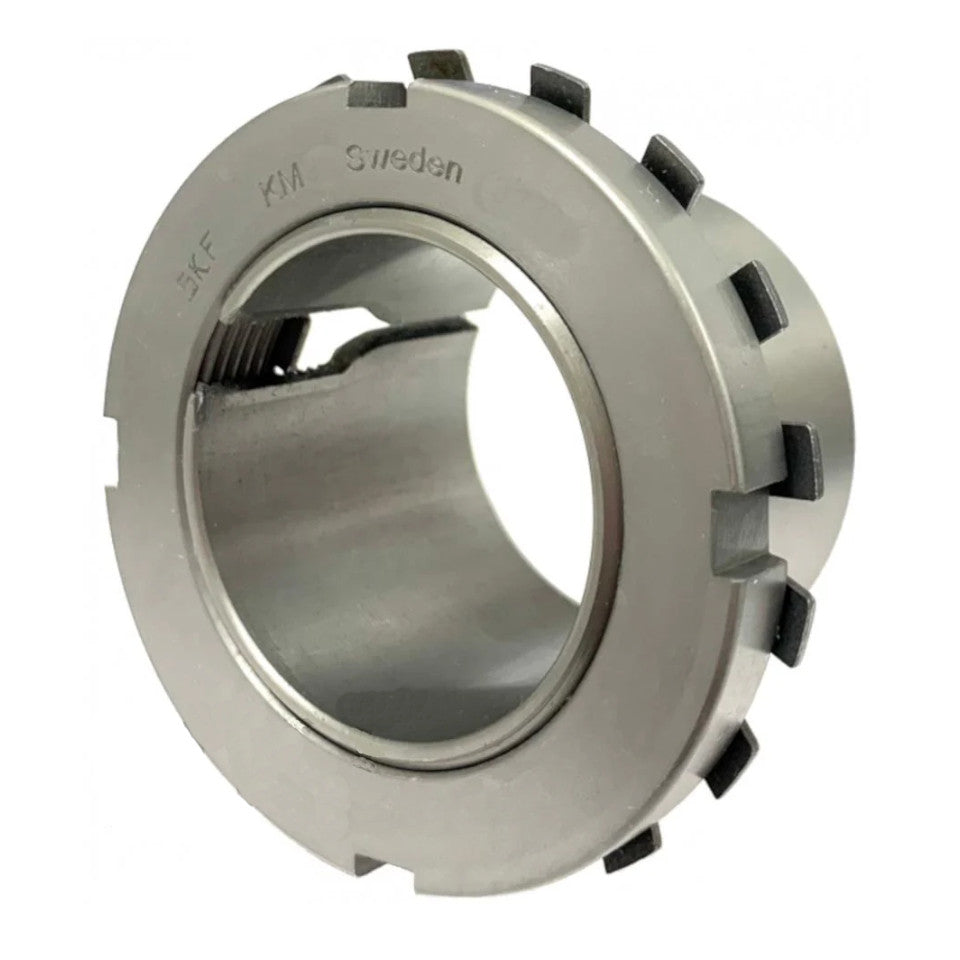

HA316 SKF Adapter Sleeve 2.11/16 inch Shaft

In stock
SKU: HA316-SKF
SKF Adapter sleeve with KM lock nut and MB lock washer, metric dimensions with inch bore

$88.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor SKF
  • SKU HA316-SKF
  • Inside diameter (d) 68.263mm
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB... Read full description ↓ Show less ↑

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Dimensions
d1: 68.263mm Bore diameter
d: 80mm Outside diameter small taper
d3: 105mm Outside diameter lock nut
B1: 59mm Width
B: 15mm Width lock nut
B4: 17mm Width lock nut including lock washer
G: M 80x2 Thread

Properties
Taper: 1:12
Holes for oil injection: without

Included products
Lock nut: KM16
Locking device: MB16

Mass: 1.05 kg
