HM807046/HM807010-B Timken Tapered Roller Bearing with Flange 50.80x104.775x36.513mm
Couldn't load pickup availability

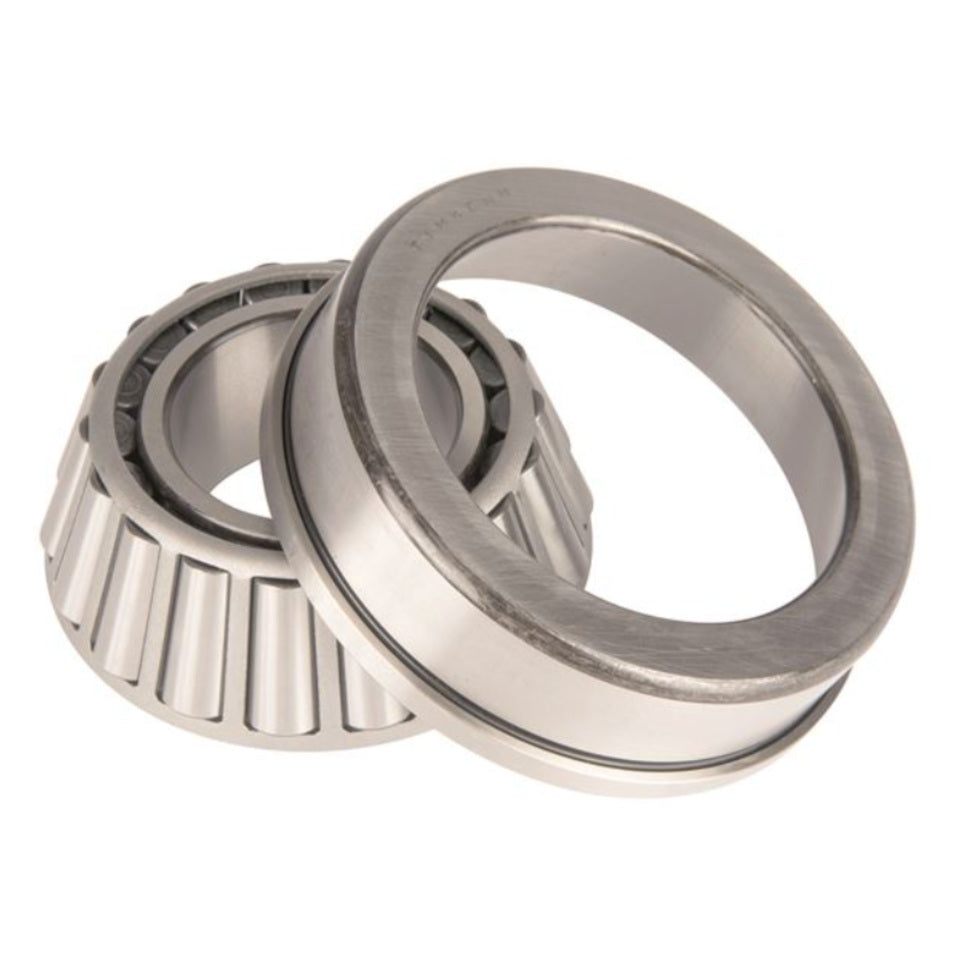

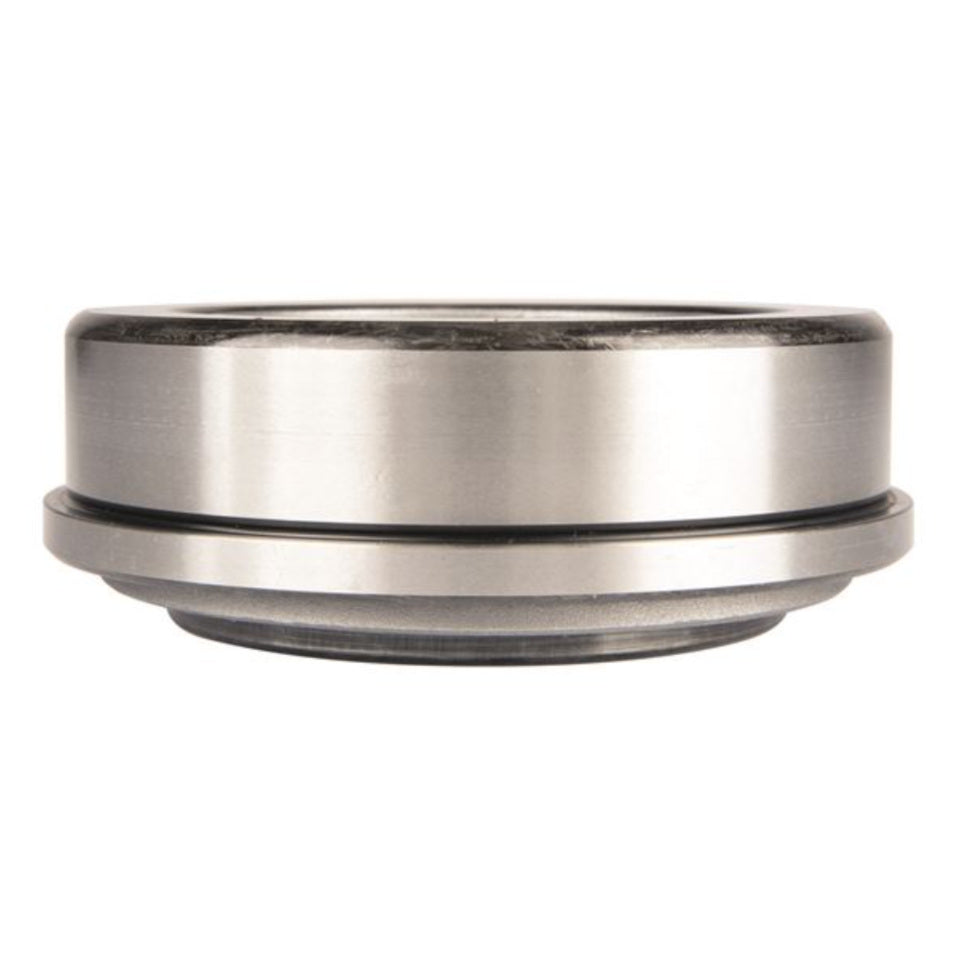

The HM807046/HM807010-B Timken tapered roller bearing is a precision-engineered, single-row assembly designed to deliver outstanding performance in demanding industrial and automotive environments. Featuring a TSF (Tapered Single with Flange) design, this bearing incorporates a flanged outer ring (cup) to support accurate axial positioning and improved sealing alignment in through-bored housings.
Manufactured by Timken, this assembly includes the matched cone (HM807046) and flanged cup (HM807010-B), ensuring optimal internal geometry, load distribution, and long service life.
Key Features & Benefits
- TSF flanged cup design – Enables precise axial location and improved seal alignment
- High load capacity – Designed to handle combined radial and axial loads efficiently
- Separable construction – Cone and cup can be mounted independently for easier installation and maintenance
- Heavy-duty performance – Suitable for shock loads, high speeds, and harsh environments
- Premium Timken steel & heat treatment – Enhances durability and reduces wear

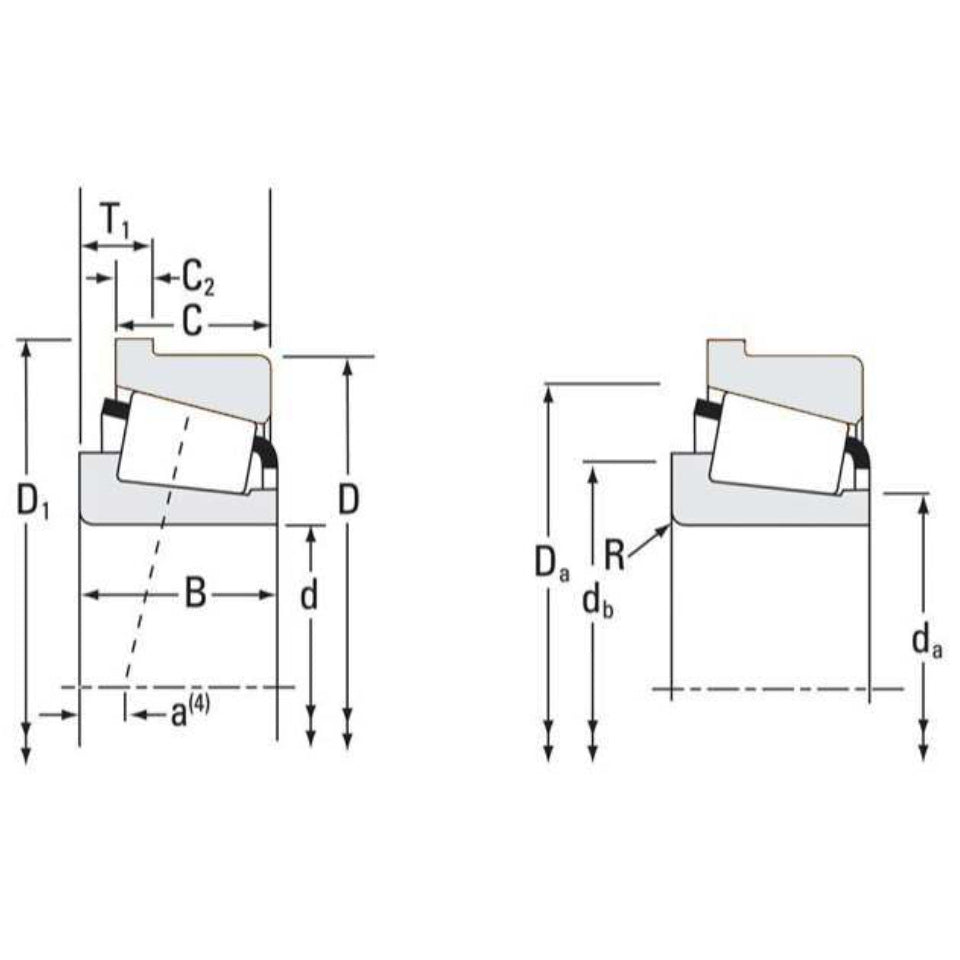

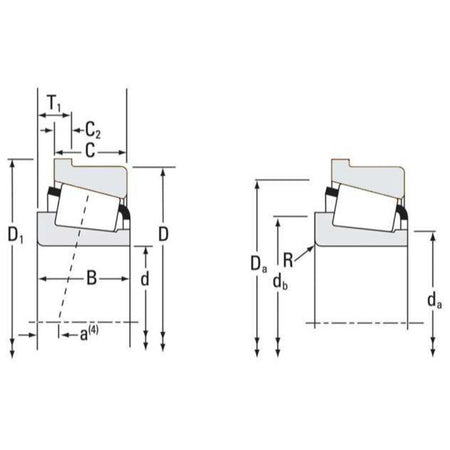

Technical Specifications
- Bore (d): 50.80 mm (2.000")
- Outer Diameter (D): 104.775 mm (4.125")
- Cone Width (B): 36.513 mm (1.4375")
- Cup Width (C): 28.575 mm (1.125")
- Total Bearing Width (T): 36.513 mm (1.4375")
- Flange Width (T1): 15.875 mm
Load Ratings:
- Dynamic Radial (C1): 203,000 N (45,700 lbf)
- Static Radial (C0): 223,000 N (50,200 lbf)
Design & Performance
The HM807046/HM807010-B utilises Timken’s advanced tapered roller geometry to minimise friction while maximising load-carrying capability. The flanged cup design ensures improved axial positioning and system rigidity, making it ideal for applications requiring precise alignment and secure bearing location.
Typical Applications
- Wheel hubs and axle systems
- Gearboxes and transmissions
- Agricultural and construction machinery
- Heavy-duty industrial equipment
