K-2030-10+ Kukko Universal 2-Jaw and 3-Jaw Puller Set with Quick-Adjusting Pulling Jaws
For removing bearings, gears, discs, etc.
Regular price
From
£685.82
£571.52 exc.VAT
Couldn't load pickup availability
Description

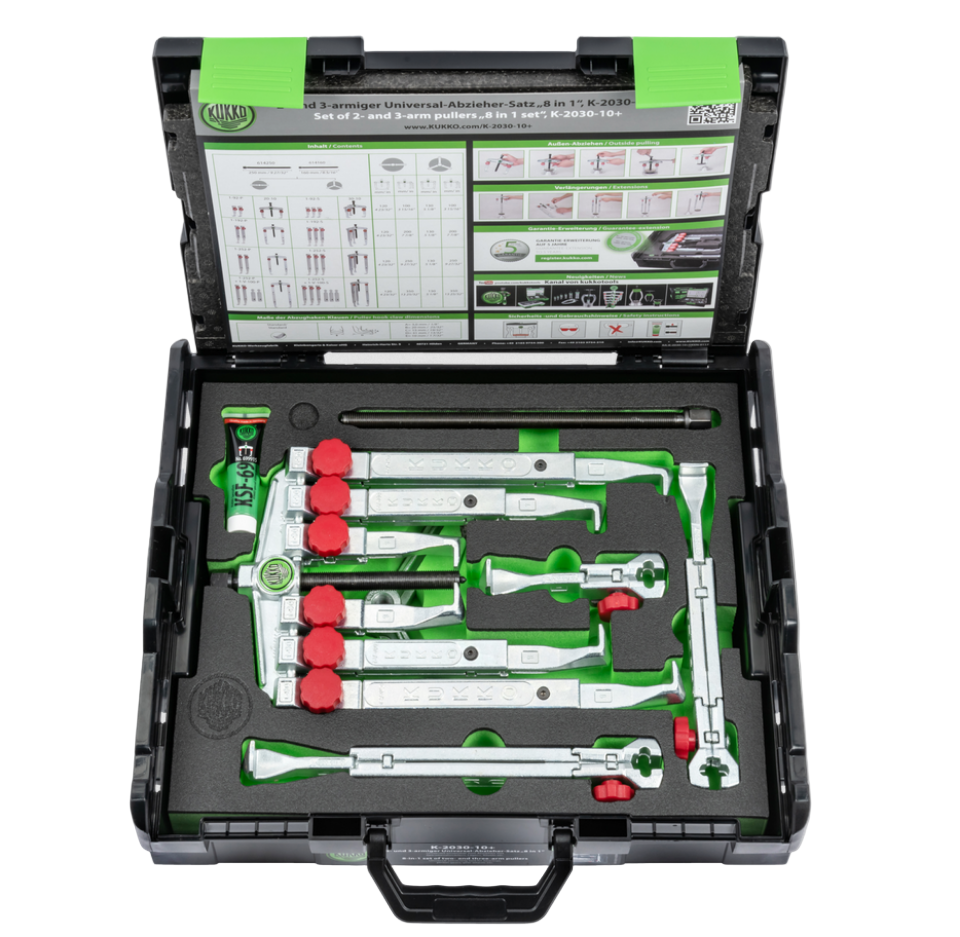

8 in 1 kit in the tried-and-tested KUKKO-L-Boxx-System.
The set facilitates the assembly of eight different pulling device models through the combination of pulling jaws and extensions.
Flexibility assured thanks to two-arm or three-arm design.
If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
Standard pulling hooks in various lengths with quick adjusting capability quick adjust.
Pulling hooks with infinitely variable adjustment on the cross-beam.
Short and long mechanical pressure screws.
Milled thread treated with special coating.
Parallel pulling hooks in every position, even with full load.
Instructions on the cover.
Personal KUKKO-Chip-Code.
Advantage
Practical package for universal use.
Variable reach thanks to optional jaw extensions.
Can be installed on various pulling hooks.
Turning the pulling hooks enables them to be used both internally and externally.
Suitable for pulling asymmetric workpieces.
2-jaw cross-beam with hexagonal profile for good grip.
Spindle head band prevents the wrench from slipping off.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
Stability support from optional series 219 clamp.
Complete easy-to-manage package.
KUKKO-L-Boxx-System compatible with systems by all common manufacturers.

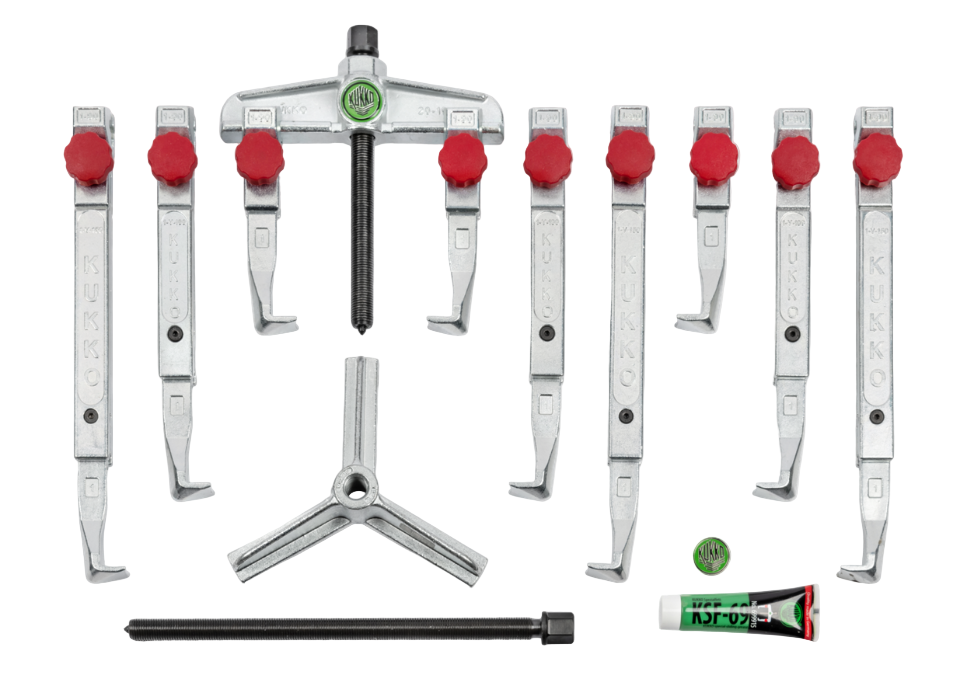

Content
20-10+ Universal 2-jaw puller with quick adjusting jaws
30-10-T Cross-beam
614250 Mechanical pressure spindle.
1-92-E Jaws, individual
1-192-S 3 quick adjusting jaws (set)
1-252-S 3 quick adjusting jaws (set)
How it Works
The part due to be removed (e.g. a gear, pulley or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
The puller must be positioned centrally for centre shafts. If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.
Safety Information
The pulling hooks' sliding parts must always sit stably and fully on the cross-beam.
If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
The pulling hooks' support surfaces must always be straight and sit fully beneath the part to be removed.
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
