K-2030-20-S Kukko Set of Two and Three Arm Pullers with Narrow Jaws
For removing large bearings, gears, discs, etc. for tight or difficult-to-access spaces.
Regular price
£1,057.80
inc.VAT
£881.50 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Description

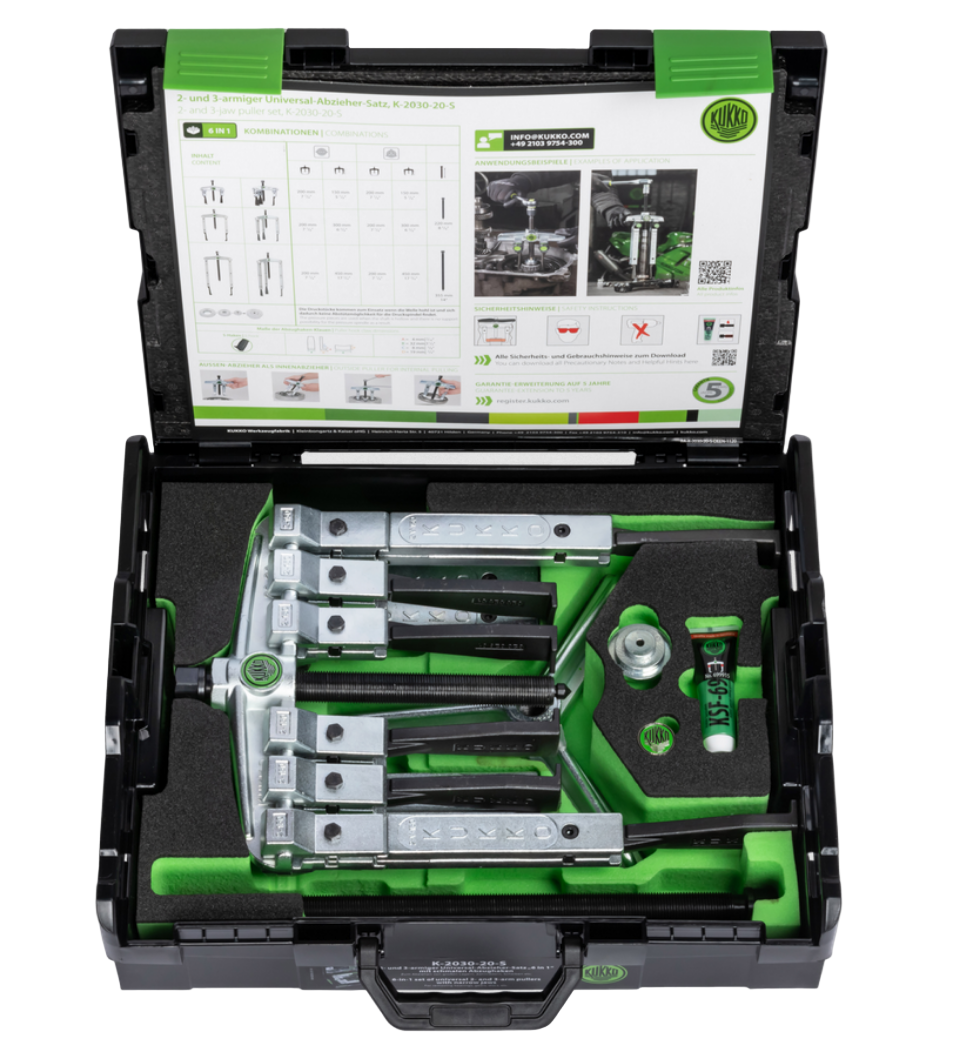

7 in 1" kit in the tried-and-tested KUKKO-L-Boxx system.
The set facilitates the assembly of seven pulling device models through the combination of pulling jaws and extensions.
Flexibility assured thanks to two-arm or three-arm design.
Narrow pulling jaws.
Jaw extensions.
Parallel pulling hooks in every position, even with full load.
Pulling hooks with infinitely variable adjustment on the cross-beam.
Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
Short and long mechanical pressure screws.
Milled thread treated with special coating.
Includes a pressure pad set for supporting the pressure spindle in a hollow shaft.
If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
Instructions on the cover.
Secure storage in special foam.
Personal KUKKO-Chip-Code.
Advantage
Practical package for universal use.
Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
Turning the pulling hooks enables them to be used both internally and externally.
Suitable for pulling asymmetric workpieces.
2-jaw cross-beam with hexagonal profile for good grip.
Spindle head band prevents the wrench from slipping off.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
Stability support from optional series 219 clamp.
Complete easy-to-manage package.
KUKKO-L-Boxx-System compatible with systems by all common manufacturers.

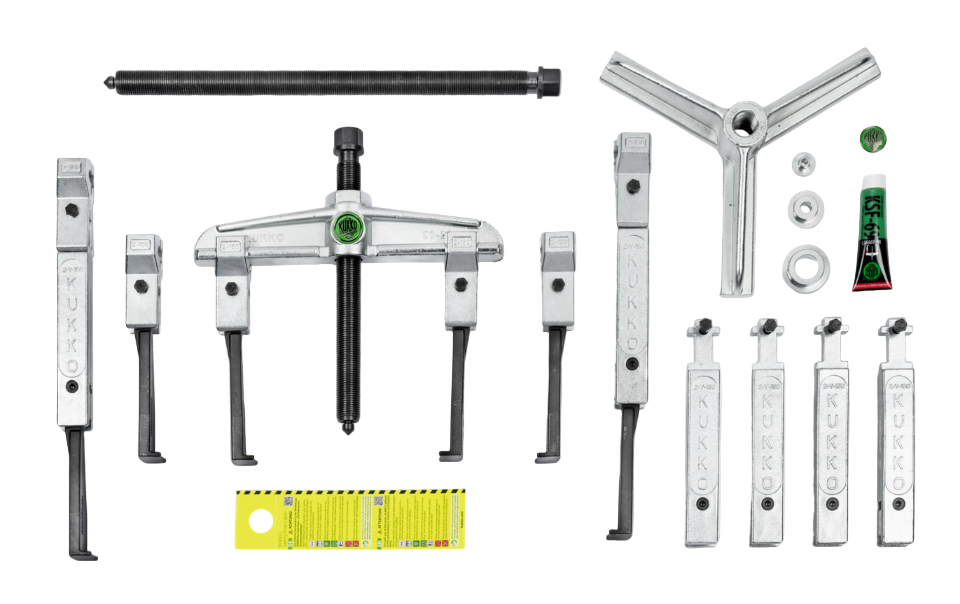

Content
621220 Mechanical pressure spindle.
621355 Mechanical pressure spindle.
600-17 Pressure pad bricks
2-151-S 3 narrow jaws (set)
2-301-S 3 narrow jaws (set)
2-V-150-P 2 jaw extensions (pair)
30-20-T Puller product range - industrial - BASIC
2-151-E Jaws (individual)
20-20-T 2-jaw cross bar
30-20-T3 3-jaw cross bar
2-301-E Jaws (individual)
How it Works
The part due to be removed (e.g. a gear, pulley or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
The puller must be positioned centrally for centre shafts. If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.
Safety Information
The pulling hooks' sliding parts must always sit stably and fully on the cross-beam.
If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
The pulling hooks' support surfaces must always be straight and sit fully beneath the part to be removed.
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
