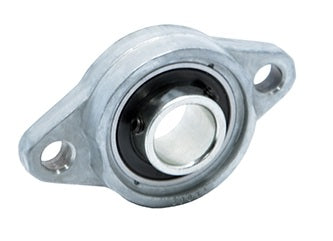

These bearing housings have oval flanges which can be easily installed onto a machine with two bolts. This type of bearing unit is suitable where mounting space is limited or where it is necessary to minimize the distance between shafts. The distance between bolt holes of an oval flange type is generally equal to the distance between bolt holes diagonal position of square flange type.
The miniature Silver Series have rustproof housings made from a special alloy. These have Set Screw Locking.
Shaft diameter: 30mm
Bearing No: K006
Housing No: FL006
Dimensions (mm)
d: 30mm
a: 112mm
e: 80mm
i: 9mm
g: 9mm
I: 18mm
S: 13mm
b: 70mm
Z: 27mm
B: 24.5mm
n: 6.5mm
Bolt size: M10
Basic dynamic load rating: 13.23 kN
Basic static load rating: 8.28 kN
Mass: 0.35 kg
