KM and KML lock nuts are used to locate bearings onto a shaft. They have metric threads and four equally spaced slots located around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. KM and KML lock nuts can be reused, provided they are not damaged.
Simple, stable and reliable fastening element
Easy to install and remove
Reusable with a new lock washer
Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40)

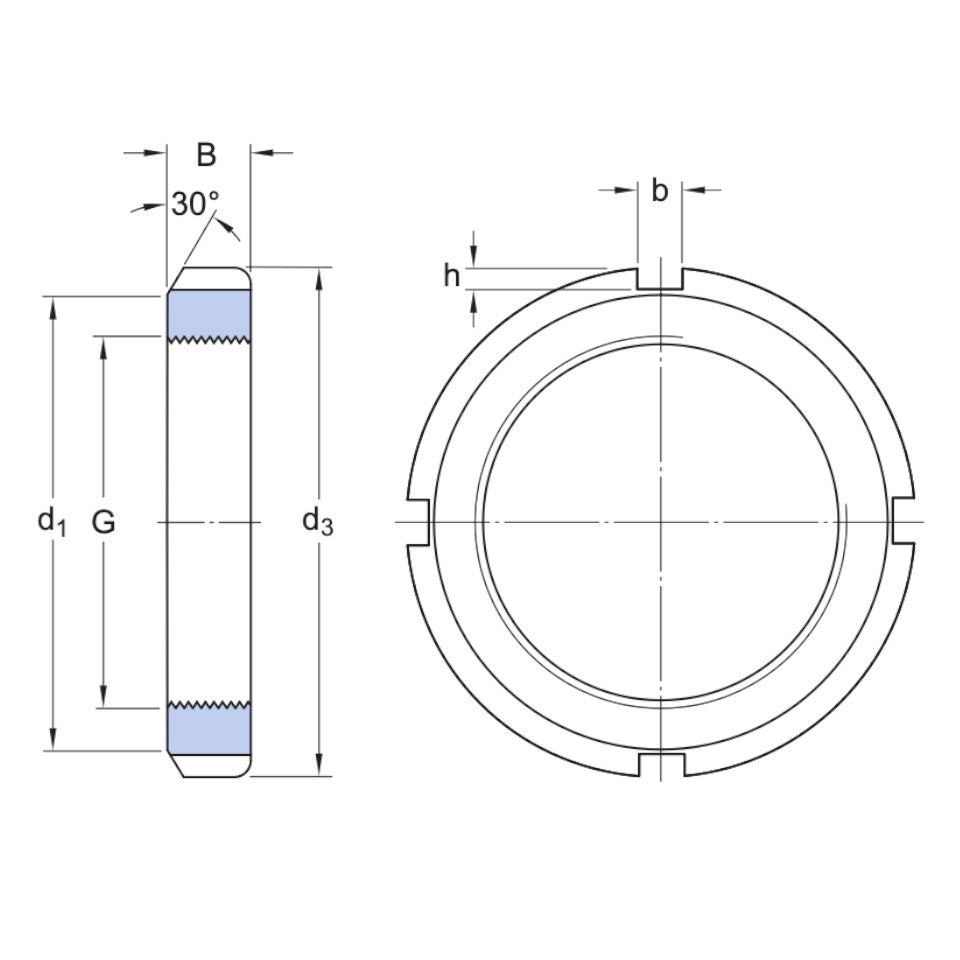

Dimensions
G: M30x1.5mm
d1: 38mm
d3: 45mm
B: 7mm
b: 5mm
h: 2mm
Axial static load carrying capacity: 36,5kN
Mass: 0,039kg
Appropriate locking washer: MB6
Associated spanner: HN6
