L070 Challenge Jaw Coupling Complete

In stock
SKU: L070-COMPLETE-CHALLENGE

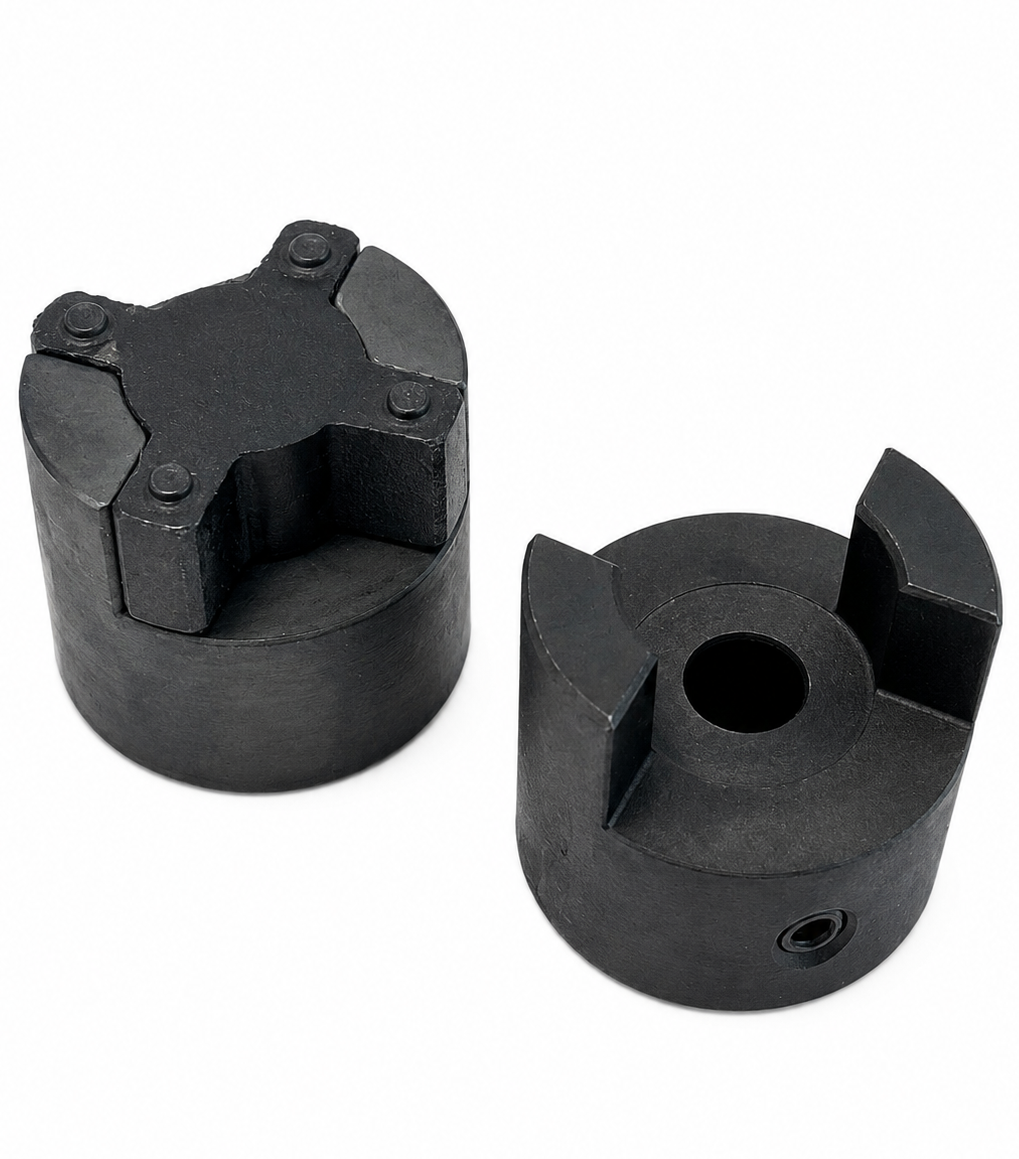

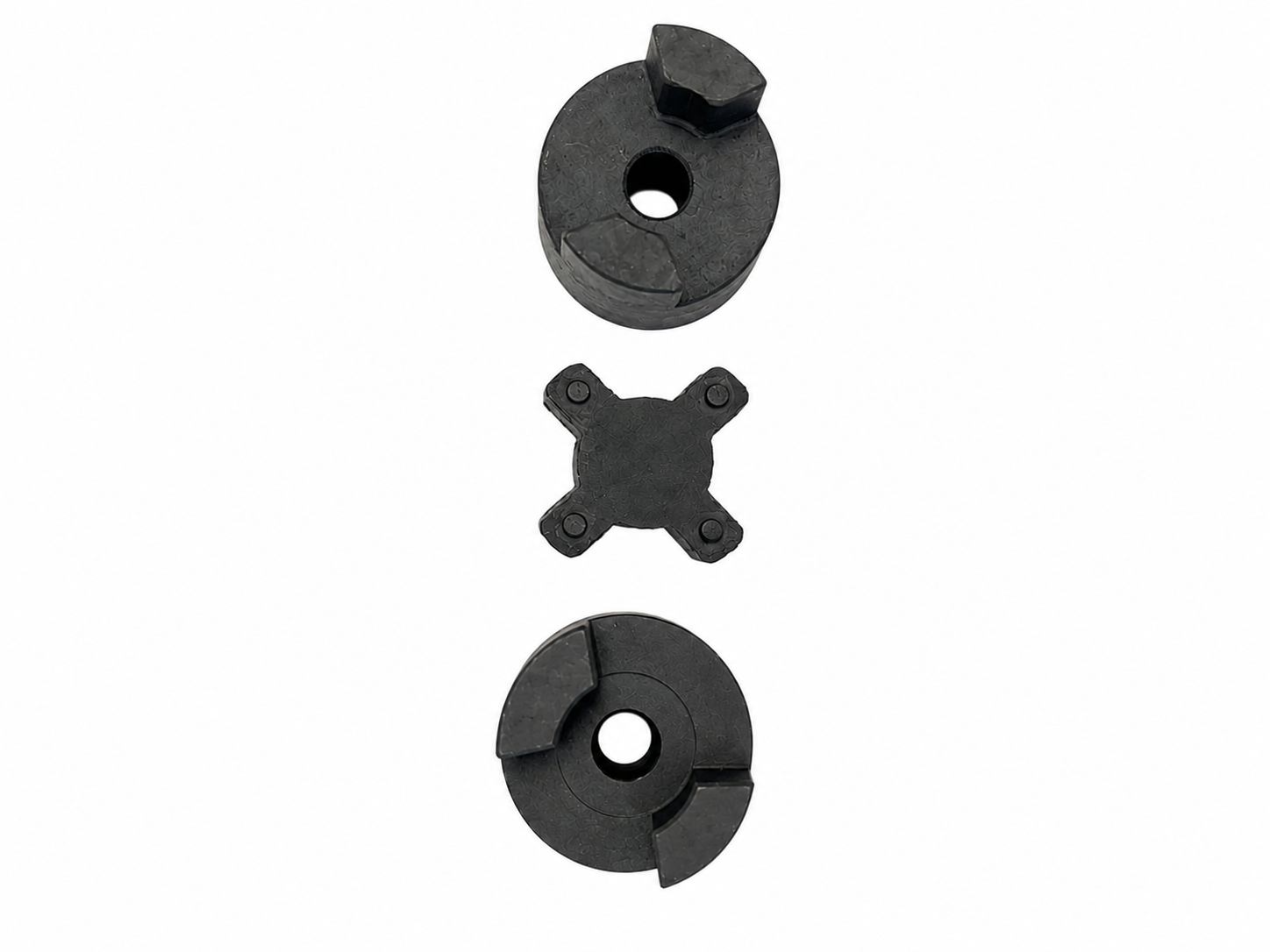

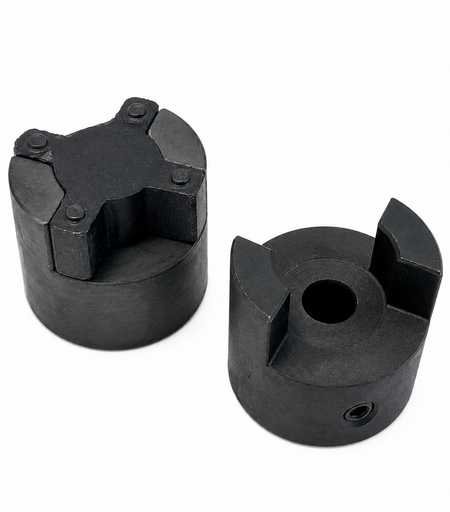

Challenge Jaw coupling complete, Contains 2 x L070 hubs & 1 x L070 element
Regular price From £14.82
£12.35 exc.VAT

Product details

  • Vendor Challenge
  • SKU L070-COMPLETE-CHALLENGE
  • Inside diameter (d) 9mm
Jaw couplings provide a cost-effective solution for standard power applications, cushioning moderate shock loads and dampening low vibration levels. Maintenance-free and easy to install, jaw couplings are available with a "snap wrap" element allowing element replacement insitu. Urethane and hytrel elements have a greater power rating than nitrile elements and are recommended for applications
where a compact, high torque solution is required.

Coupling Size: 070

Nominal Torque Nm: 5.77

Maximum Speed rev/min: 14000

Pilot Bore A: 9mm
Maximum Bore A: 19mm

Overall Diameter B: 35mm
Assembled Length L: 51mm
Hub Width C: 19mm
Hub Diameter D: 35mm

Set Screw
Position F: 9.5mm
Size: M6

Complete Weight: 0.25kg
