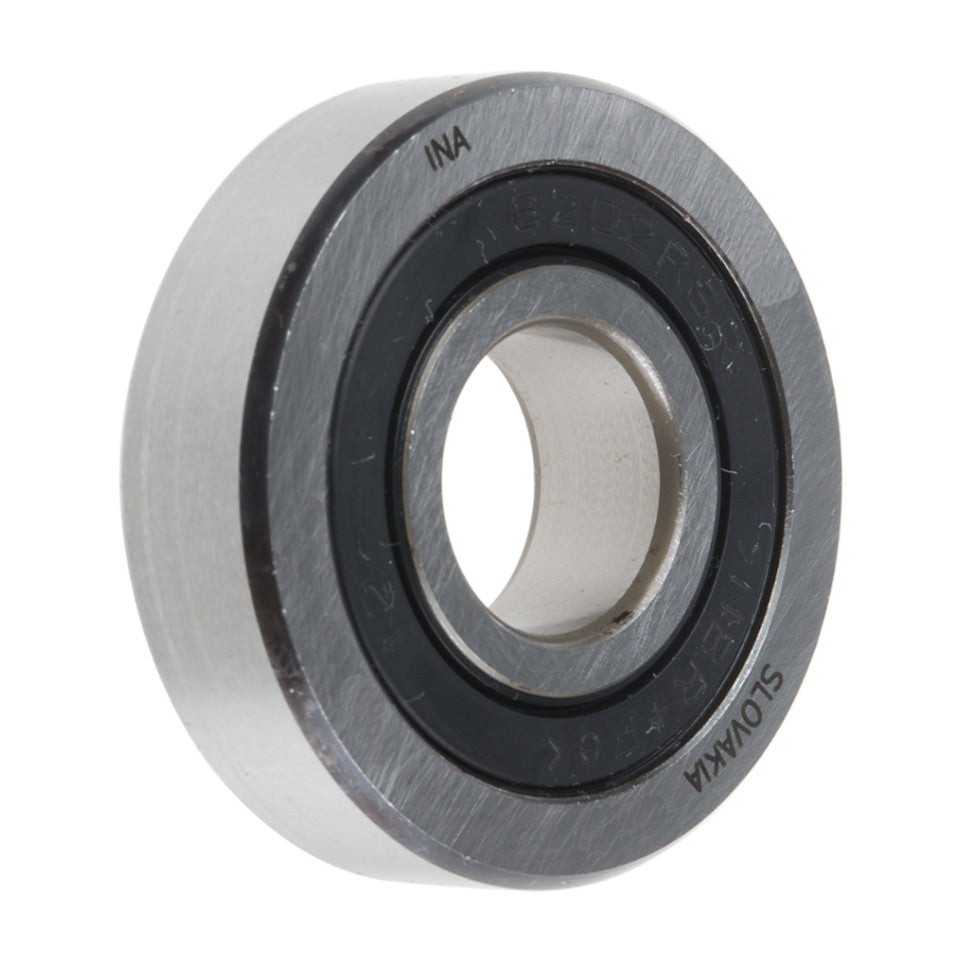

A Single Row Track Roller is a self-retaining ball bearing with particular thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track.
The suffix 2RS have lip seals on both sides of the bearing.

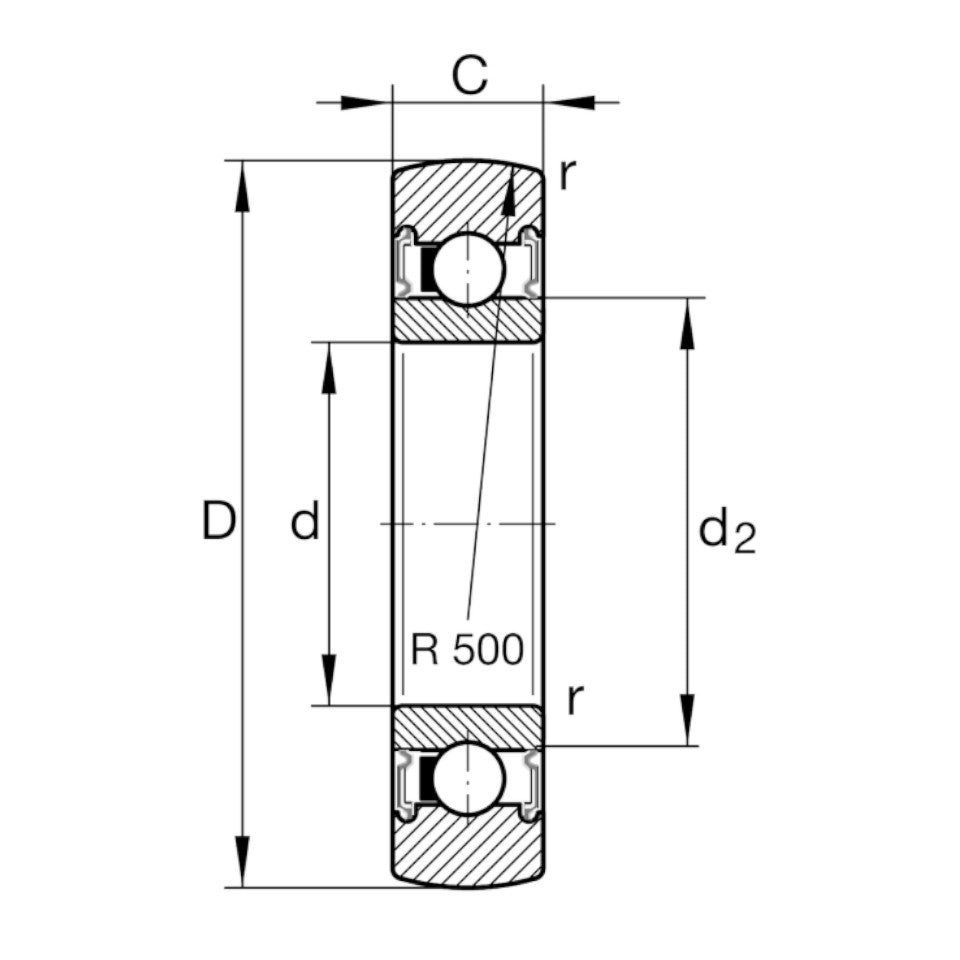

Dimensions (mm)
d: 15
D: 40
C: 11
d2: 21
r/min: 0,6
Basic Load Ratings
Dynamic: 6 600N
Static: 3 350N
Fatigue Limit Load: 133N
Speed Rating: 11 000
Mass: 70g
