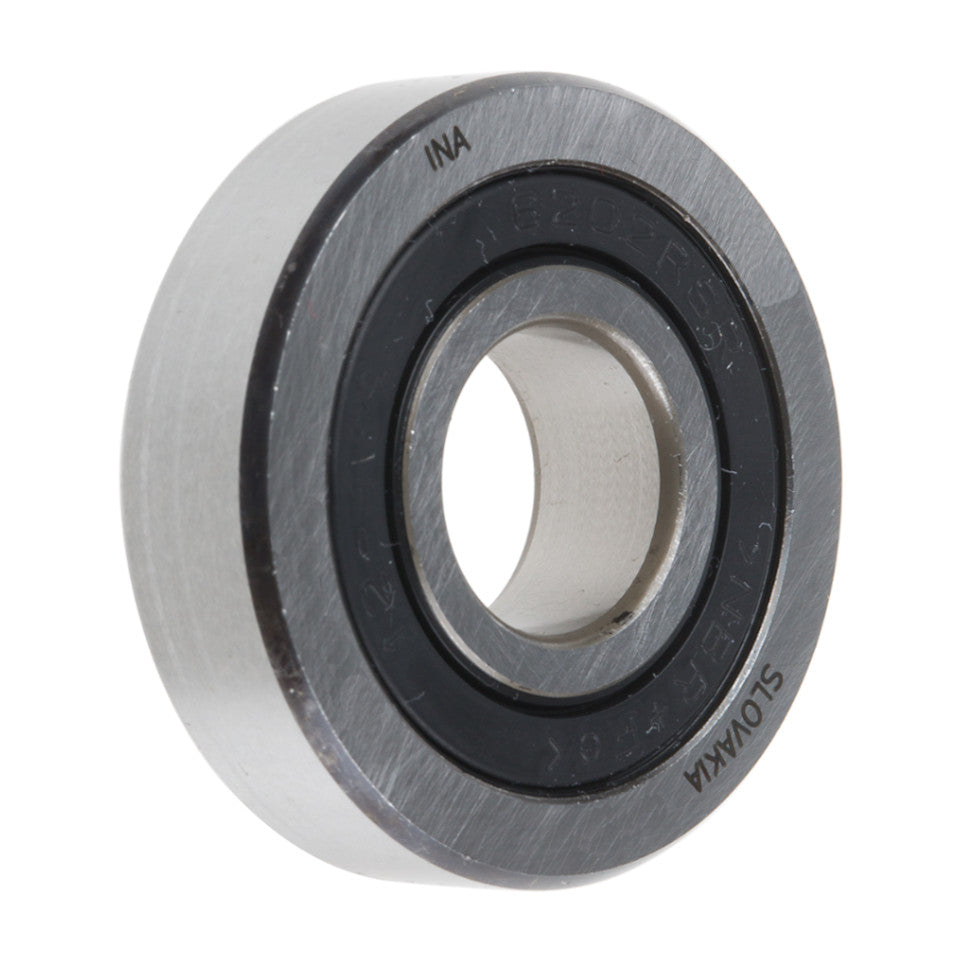

A Single Row Track Roller is a self-retaining ball bearing with particular thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track.
The suffix 2RS have lip seals on both sides of the bearing.

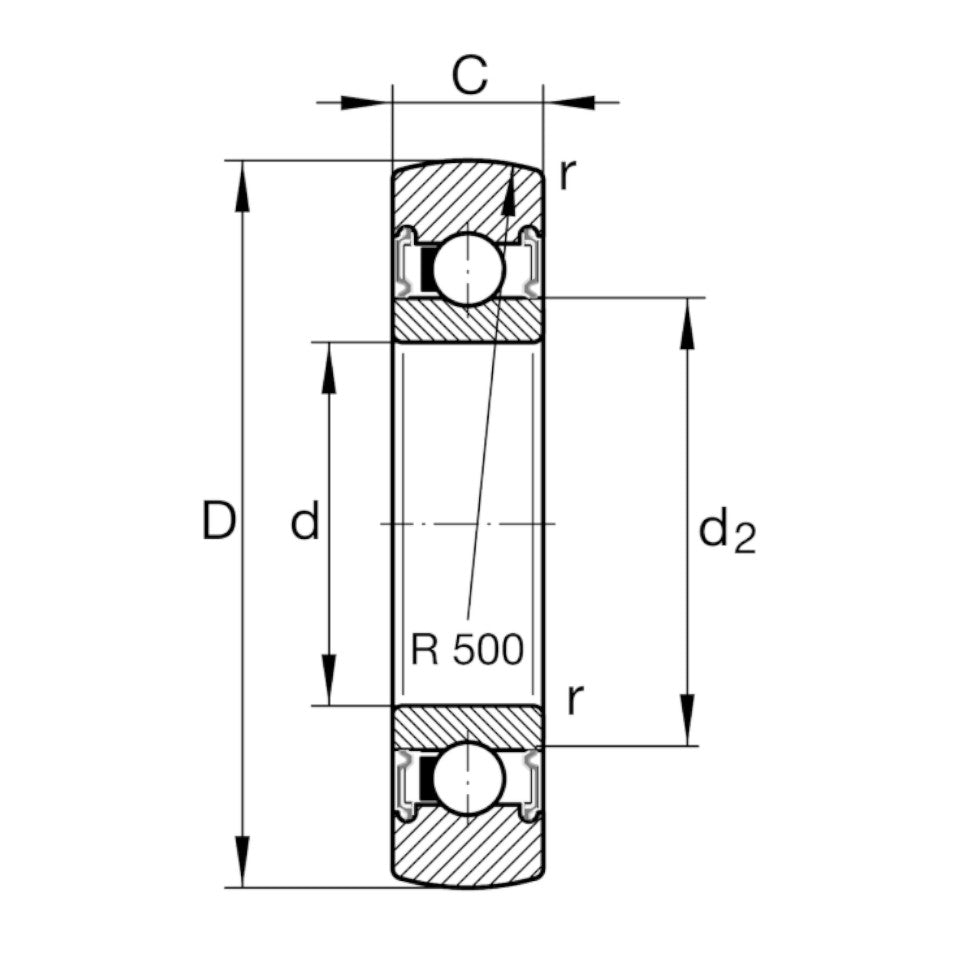

Dimensions (mm)
d: 30
D: 73
C: 16
d2: 37,4
r/min: 1
Basic Load Ratings
Dynamic: 16 600N
Static: 9 700N
Fatigue Limit Load: 400N
Speed Rating: 5 500
Mass: 330g
