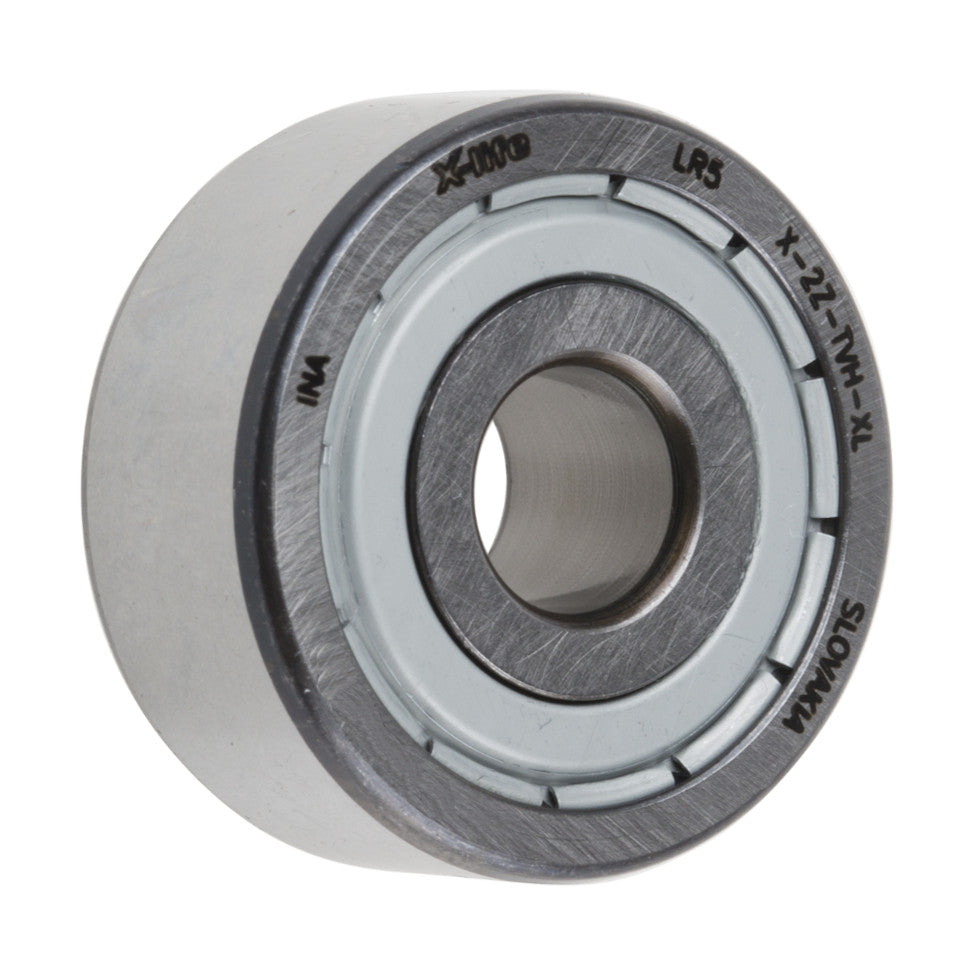

A Double Row Track Roller is a self-retaining ball bearing with particular thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track.
The suffix 2Z have metal shields on both sides of the bearing.

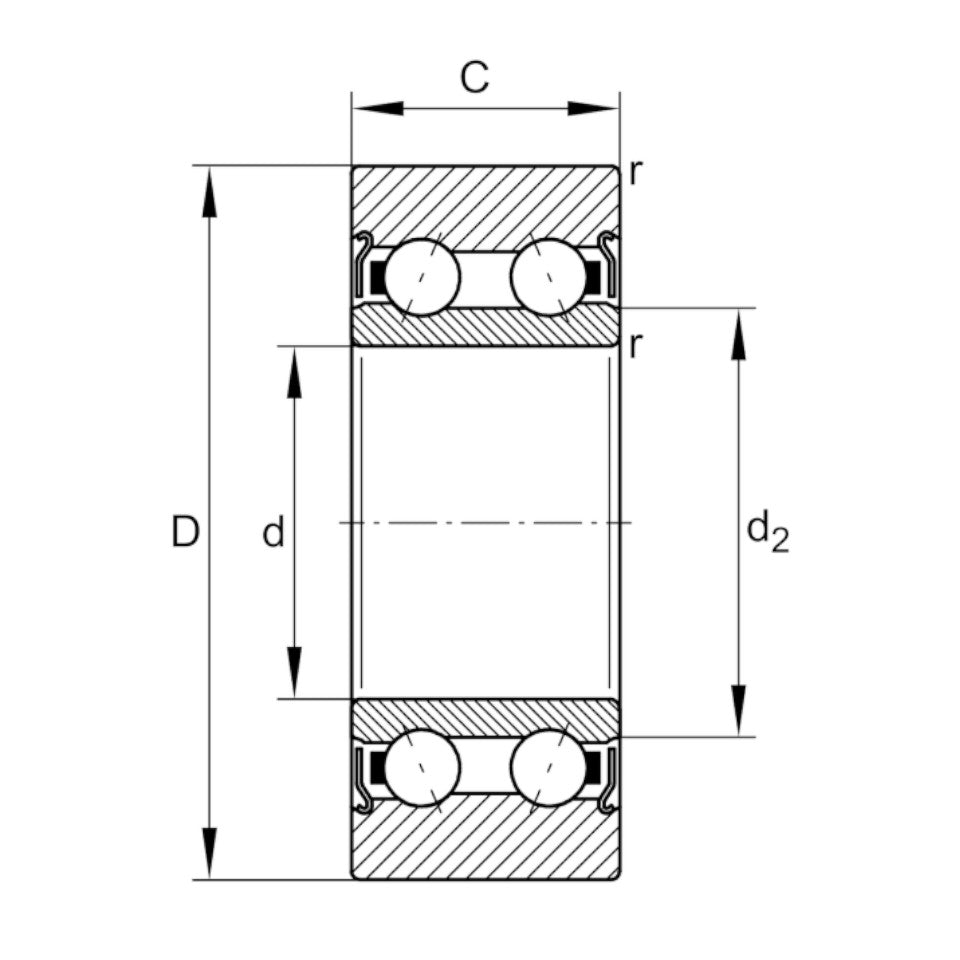

Dimensions (mm)
d: 12
D: 35
C: 15.9
d2: 17,1
r/min: 0.6
Basic Load Ratings
Dynamic: 8 700N
Static: 5 200N
Fatigue Limit Load: 215N
Speed Rating: 10 000
Mass: 80g
