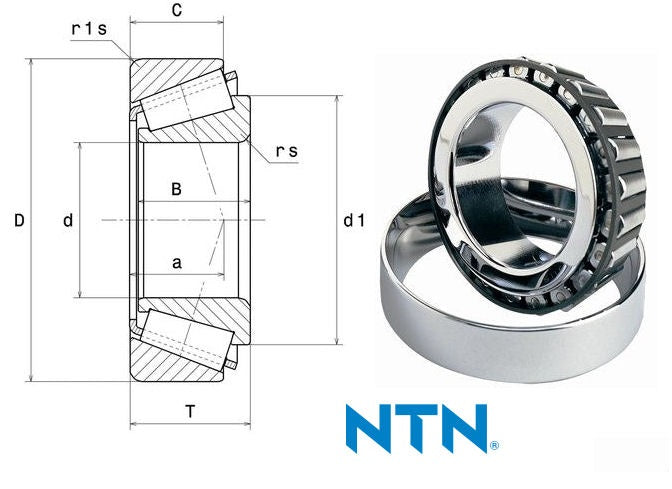

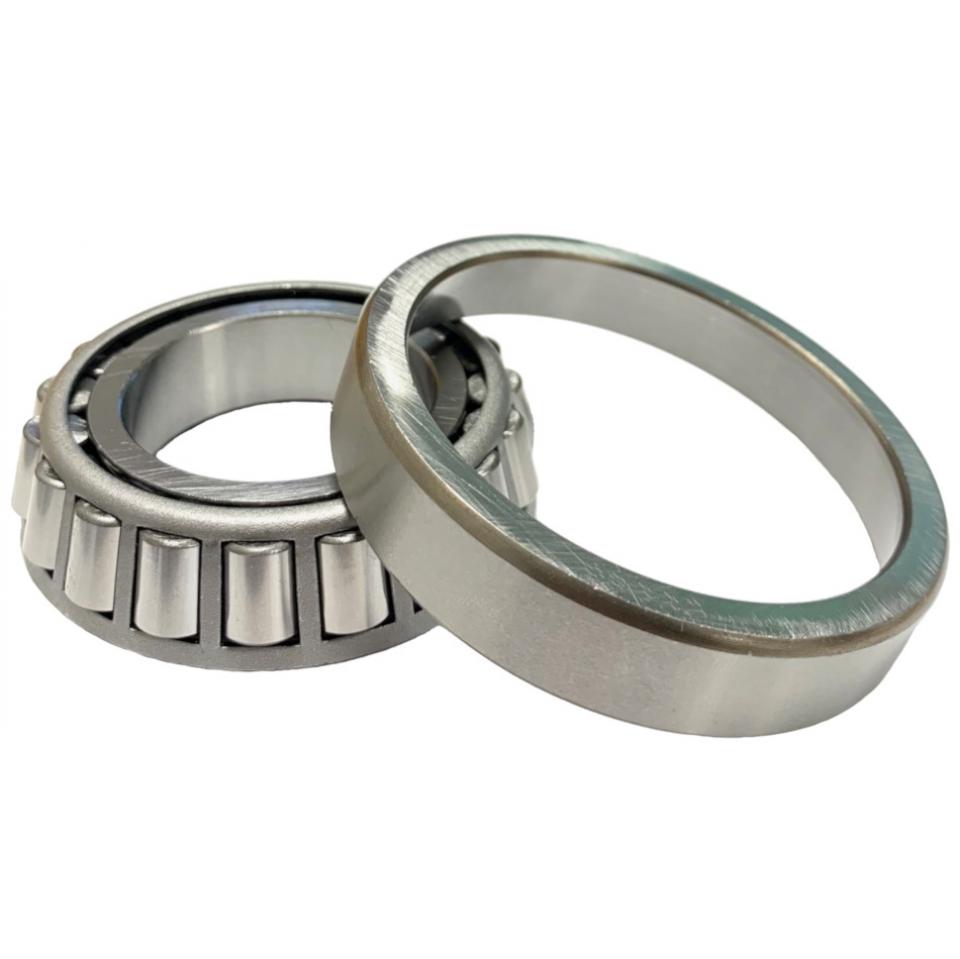

M88040/M88010 NTN Tapered Roller Bearing 1.1/8x2.6875x0.875 inch

In stock
SKU: 88040/88010-NTN
NTN Imperial taper roller bearing priced cup & cone together 1.1250 inch inside x 2.6875 inch outside x 0.8750 inch width, also known as 4T-88040/88010
Regular price From £25.75
£21.46 exc.VAT

Product details

  • Vendor NTN
  • SKU 88040/88010-NTN
  • Barcode 4547359669138
  • Inside diameter (d) 28.575mm
  • Outside diameter (D) 68.262mm
  • Width (B) 22.225mm
Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.

Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.

Bore: 1.1250 inch / 28.575mm
Outside Dia: 2.6875 inch / 68.262mm
Width: 0.8750 inch / 22.225mm
