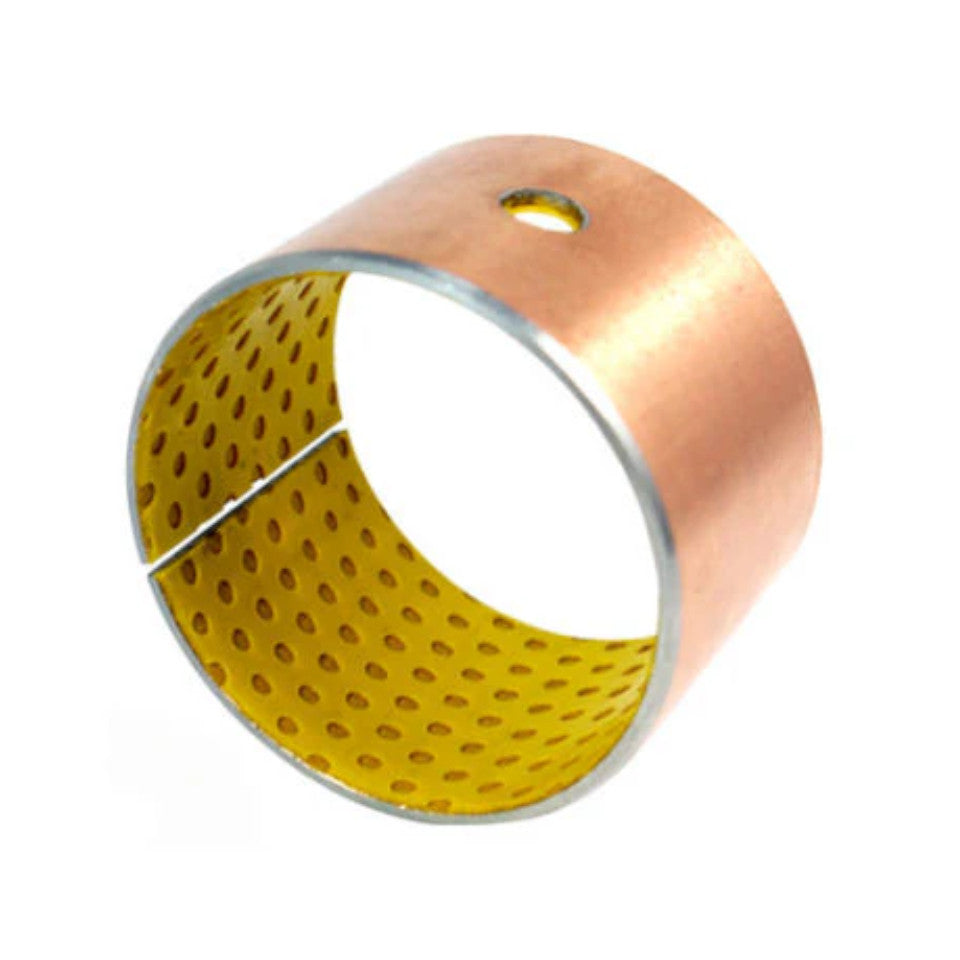

MB4030X Wrapped Acetal Lined Plain Bearing 40x44x30mm

In stock
SKU: MB4030X
Quality wrapped acetal lined machinable plain bearing 40x44x30mm
£3.38 inc.VAT
£2.82 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • SKU MB4030X
  • Inside diameter (d) 40mm
  • Outside diameter (D) 44mm
  • Width (B) 30mm
Description Delivery Returns
Machinable steel backed, acetal co-polymer lined, composite bearing material designed for marginally lubricated operation that is particularly suitable where continuous oil lubrication is uneconomic or inappropriate. The bearing surface may be supplied indented for grease lubrication or it may be plain for applications where fluid lubrication is available. The indented material surface which should be filled with suitable grease during assembly is designed to provide optimum distribution of the lubricant over the bearing surface. Dependent on conditions, these bushes can withstand temperatures from -40 degrees up to 130 degrees for short periods and specific loads up to 140N/mm2.

Wrapped Acetal Lined Plain bearings consist of a composite material in which porous bronze layer is bonded to a metal backing and impregnated and lined with a polymer surface. It is the choice of this polymer which imparts to each material its particular bearing properties.

Dimensions
d1 Nominal bore: 40mm
D1 Housing diameter: 44.000 - 44.025mm
T Effective wall thickness: -
d2 Machined bore (H7): 40.000 - 40.025mm
d Journal diameter: 39.920 - 39.881mm
H Oil hole diameter: 8mm
B Length +-0.25: 30mm

Structure: S.A.E. 1010 steel backing strip with sintered bronze and Acetal Copolymer layers
Maximum static load: 140N/mm2
Max Sliding speed - With Grease: 2.5m/s
Recommended shaft hardness (HB): 200 min
Max Dynamic load: 70N/mm2
Operating temperature: -40 degrees to +130 degrees
